DXS-1100-10TSEOL EOS

EasySmart Switch with 8 10GBase-T ports and 2 10GBase-X SFP+ ports

Kirjeldus

The DXS-1100-10TS 10 Gigabit Ethernet EasySmart Switch is an EasySmart Layer 2 10 Gb Ethernet switch which provides an entry-level solution for Small and Medium Businesses wishing to deploy 10 Gb Ethernet. It is ideal for server farms or as a network aggregation device and provides a cost-effective but feature-rich solution to 10 Gb Ethernet requirements.

Energy Saving
The DXS-1100-10TS incorporates D-Link Green technology for increased energy efficiency. Smart fans and temperature sensors ensure that the fans are running at the optimum speed to cool the system. If the environment temperature is suitable and the switch is at low utilization, the smart fans can reduce their speed, resulting in lower power consumption and noise output. The Link Status feature can reduce power utilization by powering-down inactive ports and putting them into sleep mode. The DXS-1100-10TS also takes its Green credentials one step further by incorporating a chipset with advanced silicon technology for reduced power utilization.

Easy to Deploy
The DXS-1100-10TS supports an intuitive client-based D-Link Network Assistant Utility and a web-based management interface. The client-based utility allows customers to discover all switches in the D-Link Smart Switch family within the same L2 network segment. With this utility, users do not need to change the IP address of their PC, and this also makes initial setup of the Smart Switches quick and easy. Switches within the same L2 network segment that are connected to the user’s PC are displayed on-screen for instant access. This allows for extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades. The graphic web-based management interface provides a user-friendly interface that enables network administrators to remotely control their network down to the port level.

Auto Surveillance VLAN and Bandwidth Control
The DXS-1100-10TS supports Auto Surveillance VLAN (ASV), and Auto Voice VLAN, which are best suited for Voice over IP (VoIP) and video surveillance deployments. Auto Surveillance VLAN is a new, industry-leading technology that the DXS-1100-10TS Gigabit Ethernet Smart Switch provides. This technology consolidates data and surveillance video transmission through a single unit, thus sparing businesses the expense of dedicated hardware and facilities. ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. The Auto Voice VLAN technology enhances VoIP functionality by automatically placing voice traffic from an IP phone into an assigned VLAN. With higher priority and individual VLAN, these features guarantee the quality and security of VoIP traffic across the network. In addition, Bandwidth Control can reserve bandwidth on a per port basis for important functions that require larger bandwidth or might have high priority.

Advanced Features
The DXS-1100-10TS is equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only. Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded. IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput.

Easy Troubleshooting
The DXS-1100-10TS features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics help network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

Põhiomadused

Hardware Version
• A1

Size
• 17-inch rackmount width
• 1U height

Number of Ports
• 8 port 10GBASE-T
• 2 port SFP+

Port Functions
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3az compliance
• IEEE 802.3an 10GBASE-T 10GbE over copper
• IEEE 802.3ae 10GbE over fiber
• IEEE 802.3z 1000BASE-X
• Auto MDI/MDIX support for 1000/10GBASE-T

Switching Capacity
• 200 Gbps

Maximum Forwarding Rate
• 148.81 Mpps

MAC Address Table Size
• 16K entries

Packet Buffer
• 2 Mbps

Flash Memory
• 2 Mbytes

Maximum Power Consumption
• 50.9 W

Standby Power Consumption
• 16.1 W

Physical Parameters
Power Input
• 100 to 240 V AC

MTBF
• 585,959 hours

Acoustics
• 46.4 dB(A)

Heat Dissipation
• 173.57 BTU/h

Weight
• 2.71 kg

Dimensions
• 441 x 44 x 210 mm

Ventilation
• 2 x Smart Fans

Temperature
• Operating: -5° to 50°C
• Storage: -40° to 70°C

Humidity
• Operating: 0% to 95% non-condensing
• Storage: 0% to 95% non-condensing

EMI
• CE
• FCC
• RCM
• VCCI
• BSMI
• CCC

Safety
• cUL,
• CB
• CE
• CCC,
• BSMI

Software Features
VLAN
• 802.1Q VLAN
• Port-based VLAN
• 128 VLAN groups
• Voice VLAN
• Auto Surveillance VLAN
• Asymmetric VLAN

L2 Features
• MAC Address Table: Up to 16384 entries
• Static MAC Address: 512 entries
• IGMP Snooping
  IGMP v1/v2 Snooping
  Supports up to 512 IGMP groups
  Supports 512 static multicast addresses
• MLD Snooping
  MLD v1 Snooping
  MLD v2 Awareness
  Supports up to 512 MLD groups
  Supports 512 static multicast addresses
• LLDP
• LLDP-MED
• Spanning Tree Protocol
  802.1D STP
  802.1w RSTP
• 802.3x Flow Control
• HOL Blocking Prevention
• Port Mirroring
  One-to-One
  Many-to-One
  Support Mirroring for Tx/Rx/Both
• Link Aggregation
  802.1AX
  802.3ad
  Maximum of 5 groups/ 4 ports per group
• Jumbo Frame: Up to 9 KB
• Loopback Detection

Quality of Service (QoS)
• 802.1p Priority Queue: 8 queues per port
• Queue Handling
  Strict Priority Queue
  Weighted Round Robin (WRR)
• Bandwidth Control
  Port-based (Ingress/Egress, min. granularity 64 Kbps)

L3 Features
• IPv6 Neighbor Discovery (ND)

Security
• Broadcast/Multicast/Unicast Storm Control
• D-Link Safeguard Engine
• Traffic Segmentation
• SSL
  Support v1/v2/v3
  Support IPv4/IPv6
• ARP Spoofing Prevention: Max. 128 entries
• DoS Attack Prevention
• Port Security
• Supports up to 64 MAC address per port
• Duplicate Address Detection (DAD)

Operations, Administration, and Maintenance
• Cable Diagnostics

AAA
• Authentication for management access

Management
• Web-based GUI
• D-Link Network Assistant Utility
• TFTP client
• SNMP
  Support v1/v2c/v3
• SNMP trap
• LLDP
• LLDP-MED
• System Log
• SNTP
• ICMPv6
• Dual Images
• Dual Configurations
• RMON v1/v2

Green Technology
• Power Saving by:
  Link Status
  Cable Length
  LED Shutoff
  Port Shutoff
  System Hibernation

MIB/RFC Standards
• RFC783 TFTP
• RFC951 BootP/DHCP Client
• RFC1157 SNMP v1, v2, v3
• RFC1213 MIB II
• RFC1215 MIB Traps Convention
• RFC1350 TFTP
• RFC1493 Bridge MIB
• RFC1542 Bootp/DHCP Client
• RFC1769 SNTP
• RFC1901 SNMP v1, v2, v3
• RFC2131 Bootp/DHCP Client
• RFC2246 SSL
• RFC2461 Neighbor Discovery for IPv6
• RFC2570 SNMP v1, v2, v3
• RFC2575 SNMP v1, v2, v3
• RFC2598 CoS
• RFC2674 802.1p MIB
• RFC3164 System Log
• RFC3195 System Log
• RFC3411~17 SNMP
• RFC4213 IPv4/IPv6 dual stack
• RFC4293 IPv6 SNMP mgmt. Interface MIB
• RFC4363 802.1p MIB
• RFC4861 Neighbor Discovery for IPv6
• DLINK Private MIB
• LLDP MIB
• Zone Defense MIB
• Interface Group MIB

Sertifikaadid

Sidustooted

DXS-1100-10TS  EasySmart Switch with 8 10GBase-T ports and 2 10GBase-X SFP+ ports

Pildid

DXS-1100-10TS/A

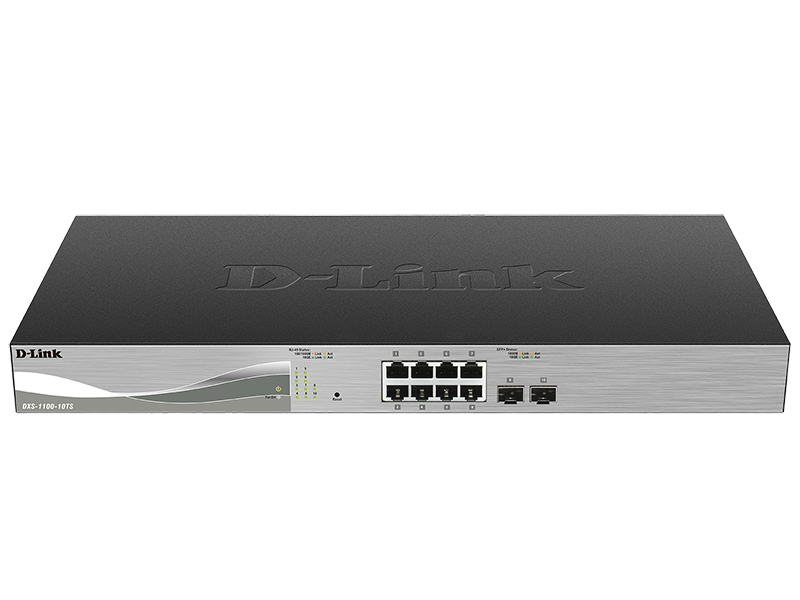

Eestvaade

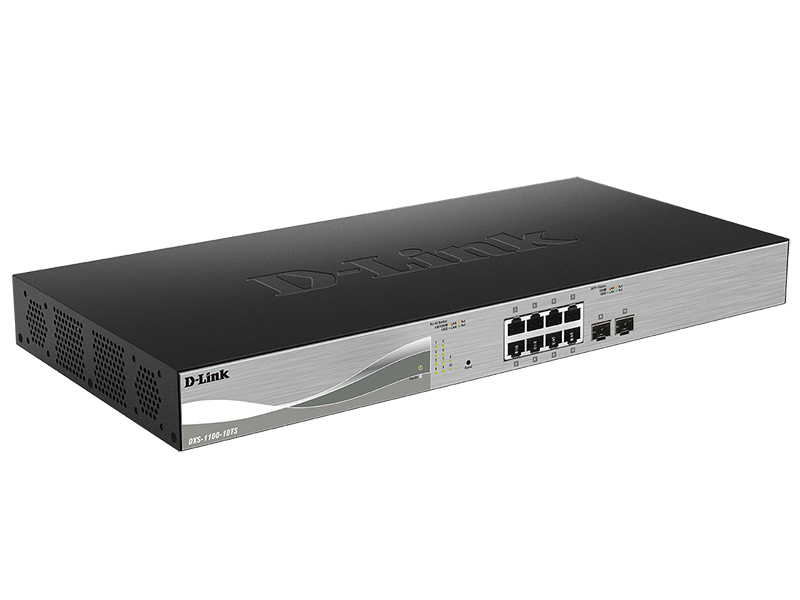

Paremvaade

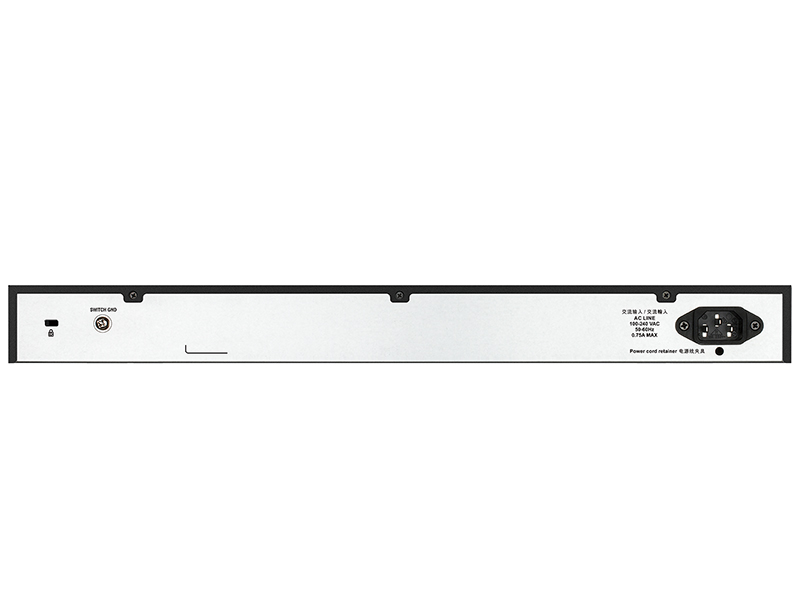

Tagantvaade
