DGS-712

SFP Transceiver 1 Port 1000Base-T (up to 100m)
היכן לקנות

תאור


D-Link's DGS-712 SFP transceivers are compliant with the Multi-Source Agreement (MSA) and Gigabit Ethernet 1000Base-T as specified in IEEE 802.3ab. The transceivers provide link in the full duplex mode and extend link distances up to 100 m. The DGS-712 1000Base-T copper SFP transceiver plugs into an SFP slot, it provides Gigabit transmission on the common Category 5 twisted-pair network cable. DGS-712 has a metal housing and is hot-pluggable. This permits modules to be added or removed without interrupting the network.


מאפיינים כללים


Interfaces
1 x 1000Base-T port

Form Factor Type
SFP

Standard
IEEE 802.3-2002
IEEE 802.3ab 1000Base-T Gigabit Ethernet

MDI/MDIX
Auto MDI/MDIX

Speed
1.25 Gbps

Distance Capacity
100m

Cable type
Ethernet Cable CAT 5

Supported features
Hot Pluggable
MSA Compliant
RoHS Compliant

Dimensions
68.3 x 13.4 x 13.8 mm

Supply Voltage
3.15 V (min.)
3.3 V (typ.)
3.45 V (max.)

Supply Current
320 mA (typ.)
375 mA (max.)

Temperature
Operating: 0 to 70 °C
Storage: -40 to 85 °C

Humidity
• Storage: 5% to 95%

נתונים פיזיים

תקנים

הורדות

DGS-712  SFP Transceiver 1 Port 1000Base-T (up to 100m)

איורים

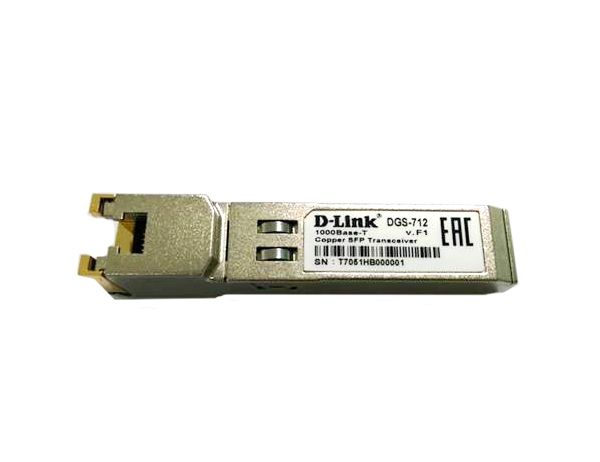

DGS-712
מראה מקדימה

דף מידע
