DEM-312GT

1000Base-SX+ Multi-Mode SFP transceiver (up to 2 km)
היכן לקנות

תאור

The DEM-312GT2/DD Gigabit SFP fiber transceiver is external transceiver designed for insertion in SFP (Small Form-Factor Pluggable) slot of network device for transmission and reception of data signals on the fiber cables. This transceiver provides the Gigabit operation and physical compactness to deliver the speed, reliable long-distance (up to 2 km) data transfer, and deployment fexibility that today’s fiber networks require.

The DEM-312GT2/DD transceiver uses standard duplex LC connector for fiber cable connection. It conforms to industry standards and is interoperable with D-Link Gigabit switches. Hot-swap capability allows network administrators to plug or unplug it from the SFP slot without having to turn off the power of the connected device.

Standard
• IEEE 802.3z 1000Base-SX+

מאפיינים כללים


Wavelength
• 1310 nm

Data Rate
• 1.25 Gbps

Connector
• Duplex LC

Fiber Type
• 50/125 um Multi-mode Fiber (up to 2 km)
• 62.5/125 um Multi-mode Fiber (up to 1 km)

Maximum Fiber Cable Length
• 2 km

Transmit Power Range
• -8 to -15 dBm

Receive Power Range
• -3 to -20 dBm

Sensitivity
• -20 dBm

Physical Parameters
Power Support
• 3.3 V

Supply Current
• 220 mA

Temperature
• Operating: 0° to 70°C
• Storage: -40° to 85°C

Humidity
• Operating: 0% to 85%
• Storage: 0% to 85%

Dimensions
• 55.4 mm x 13.7 mm x 8.5 mm


נתונים פיזיים

תקנים

הורדות

DEM-312GT2/DD/F1  1000Base-SX+ Multi-Mode SFP transceiver (up to 2 km)

איורים

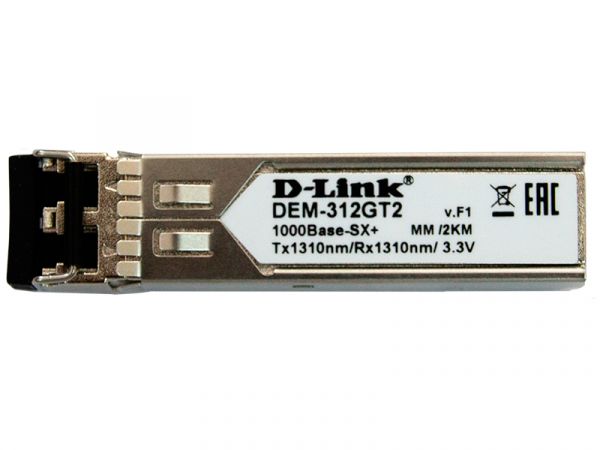

DEM-312GT
