ANT24-0700EOL EOS

אנטנת רב-כיוונית Indoor 7dBi עבור נתבים ונקודות גישה אלחוטיות

תאור



D-Link introduces the Omni-Directional 7dBi Indoor Antenna (ANT24-0700) designed to provide extended coverage for an existing 802.11b/g wireless network. The omni-directional design of the ANT24-0700 offers dramatically increased wireless signal coverage in all directions. With 360° of better signal reception, this high-gain antenna will also improve data throughput at farther distances.

The D-Link ANT24-0700 connects to a variety of wireless routers and access points on the market today. Whether the wireless router or access point has an SMA or TNC connector, the ANT24-0700 comes with an RP-SMA to RP-TNC conversion adapter to accommodate either connector type.

For maximum placement flexibility, the ANT24-0700 comes with a magnetic base unit* with 1.5m extension cable and a mounting kit. The magnetic base unit has an incredible strong hold onto any metal surface. Avoid the cost and complexity of adding additional access points or repeaters when you can easily use the ANT24-0700 to help improve wireless performance. Enjoy the benefits of wireless connectivity at greater distances throughout your home or small office.

WHAT THIS PRODUCT DOES
The D-Link 2.4GHz Omni-Directional 7dBi Antenna (ANT24-0700) is a powerful antenna designed to help improve the performance of 802.11b/g networks, particularly if the adapter or router is in an area that is not ideal to send and receive radio signals.

BENEFITS

Magnetic base with extension cable and mounting kit for flexible placement Power 7dBi gain improves overall reach

.

מאפיינים כללים

Frequency band
• 2.4GHz to 2.5GHz from

Directivity Omni-directional

Resistance
• 50 ohm

VSWR
• 1.92 max.

Inverse attenuation
• 10 dB max.

Design of the antenna
• collinear

Maximum gain (no attenuation in the cable)
• 7.0 dBi

Allowable power
• 1 W

Attenuation in the cable (1.5m)
• 2.1dB @ 2.45GGts

Beamwidth in the vertical plane (vector E)
• 24 degrees

Beamwidth in the horizontal plane (vector H)
• 360

תקנים

הורדות

איורים

ANT24-0700

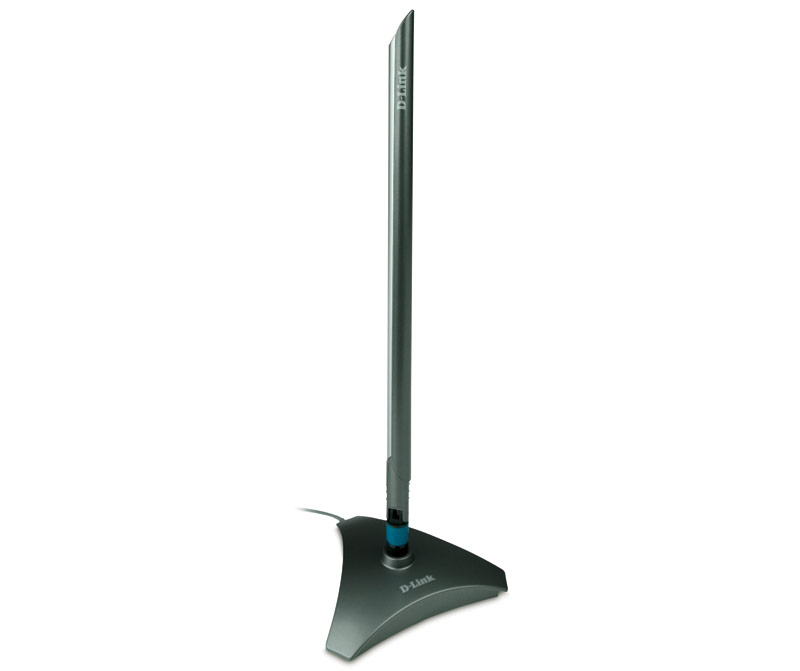

מראה מקדימה
