DFL-210EOL EOS

פיירוול UTM (כולל AV, WCF) לאבטחה מושלמת לרשת הארגונית - 4 יציאות LAN, יציאת WAN, יציאת DMZ - עד 80Mbps

תאור

Main Features

   * 4 x LAN, 1 x WAN, 1 x DMZ ports
   * Firewall Throughput: 80Mbps
   * VPN Throughput: 25Mbps
   * Concurrent sessions: 12,000
   * Policeis: 500
   * Dedicated VPN Tunnels: 100

The NetDefend family of Firewall/VPN Security Appliances is D-Link’s answer for hardware-based network security. The new D-Link Network Security Firewall (DFL-210) is an easy-to-deploy VPN and firewall solution designed specifically for the Small Office / Home Office (SOHO) market that demands superior performance and security.

Advanced Hardware Features
The DFL-210 is a powerful security solution that provides integrated Network Address Translation (NAT), SPI Firewall, advanced content filtering features, IDS protection, bandwidth management, as well as Virtual Private Network (VPN) support. The DFL-210 hardware includes four trusted LAN ports, a WAN port, and a user-configurable DMZ port to support local servers such as e-mail, Web, and FTP. The DMZ port can also be reconfigured as a WAN fail-over port. All of these features conveniently fit into a desktop chassis that can be easily integrated into your network.

Enterprise-class Security
To provide enterprise-class network security, the DFL-210 has several flexible firewall features to manage, monitor, and maintain a healthy and secure network. Network management features include: Remote Management, Bandwidth Control Policies, URL/Keyword Blocking, Access Policies, and SNMP. For network monitoring, the DFL-210 supports e-mail alerts, system log, consistency checks, and real-time statistics. These features along with a firmware backup function provide and maintain maximum network performance and security.

VPN Performance
For optimal VPN configuration, the DFL-210 has an integrated VPN Client and Server to support almost any required VPN policy. This high-end appliance has a hardware VPN engine to support and manage up to 100 VPN configurations. The DFL-210 can support IPSec, PPTP, and L2TP protocols in Client/Server mode and can handle pass-through traffic as well. Advanced VPN configuration options include: DES/3DES/AES/Twofish/Blowfish/CAST-128 encryption, Manual or IKE/ISAKMP key management, Quick/Main/Aggressive Negotiation modes, and VPN authentication support using either an external RADIUS server or the internal 500-user database.

Configurable User Interface
The DFL-210 features an intuitive user interface that can easily be configured via D-Link’s Web-based interface and monitored using the Command Line Interface (CLI). These configuration options can be managed through Admin, Read/Write, or Read-only administrator rights. With these access management levels, any authorized user can easily configure or access the administrative functions of the DFL-210.

With businesses becoming increasingly network-dependent, the need to invest in a reliable security solution is crucial. The D-Link DFL-210 Network Security Firewall offers high return on investment through robust security features, flexible configuration, and maximum network protection for SOHO networks

מאפיינים כללים



Technical Specifications

Firewall Mode of Operation

Layer 3 Mode: Route Mode, NAT Mode

Layer 2 Mode: Transparent Mode

Network Address Translation (NAT)

Port Address Translation (PAT)

Policy-Based NAT

Port Forwarding

Static Address Translation (SAT)

Time Scheduled Policies

VPN Security

VPN Tunnels: 100* (IPSec, PPTP, L2TP)

IPSec LAN-to-LAN / Roaming User

PPTP/L2TP Server/Client

IPSec/PPTP/L2TP Pass-through

IPSec NAT-Traversal

DHCP over IPSec

Encryption Transform: DES, 3DES, AES, Twofish, Blowfish, CAST-128

XAUTH (Extended Authentication) for IPSec Authentication

Firewall Security

Stateful Packet Inspection (SPI)

Policy-Based User Authentication

DoS/DDoS Attack Protection

RADIUS, LDAP, IAS

HTTP Traffic Filter: Keyword, URL, Exempt List

Script Filter: Java Applet, Java Scripts, VB Scripts, Cookies, ActiveX

Network Service

Static IP address

PPPoE for xDSL

PPTP/L2TP Client for xDSL

DHCP Client for WAN Interface

BigPond Cable, Telia Compliance

Internal DHCP Server

DHCP Relay

WAN Failover/Load Sharing**

IP Alias

Static Routes

Policy-Based Routing

DNS Resolving of Remote Gateway

Dynamic DNS Poster

Custom Application Layer Gateway

Support IEEE 802.1q VLAN Tag (8)

Firewall Policies per VLAN Tag

DHCP Server per VLAN Tag

Bandwidth Management

Guaranteed Bandwidth

Maximum Bandwidth

Priority-Bandwidth Utilization

Policy-Based Traffic Shaping

Time-Scheduled Traffic Shaping

Bandwidth Management in VPN Tunnel

System

SYSLog Support

Firmware Configuration Backup

E-mail Alerts

Management – HTTP/HTTPS/SSH

Simple Network Time Protocol (SNTP)

Simple Network Management Protocol (SNMP)

Configuration Consistency Checks

Intrusion Detection System

NIDS Pattern Auto Update

Attack Alarm via E-mail Notification

Device Ports

WAN: 1 10/100BASE-TX Port

LAN: 4 10/100BASE-TX Ports

DMZ/WAN2: 1 10/100BASE-TX Port

Console Port: Serial COM Port

Diagnostic LED

Power

System

LAN (Link/Activity per Port)

WAN (Link/Activity per Port)

DMZ (Link/Activity per Port)

Power Input

5VDC, 3.0A Switching External Power Supply

Power Consumption

15 Watts max.

Dimensions

Item: 9.25” x 6.38” x 1.42”

Packaging: 10.79” x 8.19” x 4.64”

Weight

Item: 1.1 lbs

Packaging: 2.66 lbs

Temperature

Operating: 32°F to 140°F

Storage: -4°F to 158°F

Humidity

5% to 95% (Non-Condensing)

Emission (EMI)

FCC Class A

CE

C-Tick

Safety

UL

TUV

LVD (EN60950)

Warranty

3 Year Limited

תקנים

הורדות

איורים

DFL-210

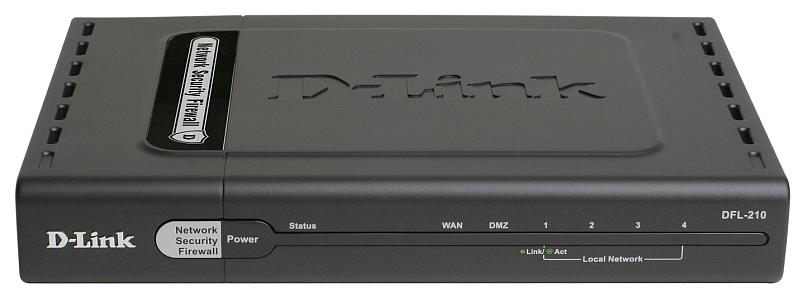

מראה מקדימה

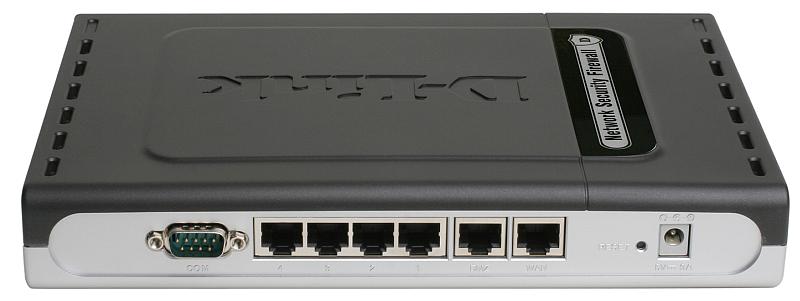

מראה מאחורה
