DGS-1016D
16-Port Configurable Gigabit Switch with DIP Switch
Description
The D-Link DGS-1016D switch offers an economical way for SOHO and Small-to-Medium Businesses (SMB) to take advantage of Gigabit Ethernet speeds, while reducing energy consumption and minimizing noise output.
Gigabit Connectivity
The DGS-1016D switch brings the speed of Gigabit Ethernet to all ports for a truly high-speed network. If your network has a mix of legacy and modern connection interfaces, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. With this switch, the latest technology available on every computer and device connected to your network.
Improved Network Efficiency
The DGS-1016D/K1 switch is equipped with a DIP switch featuring the following modes:
- Normal – for standard switch operation: data exchange between ports, flow control function is enabled;
- Extend – to increase the transmission distance up to 250 m and reduce the speed to 10 Mbps;
- Flow Control-Off – to disable the Flow Control;
- Port Isolation – для изоляции трафика на портах 1-14, порты 15-16 не изолированы. to isolate traffic on ports 1-14, while ports 15-16 remain unisolated.
The DGS-1016D/J1 switch is equipped with a three-mode DIP switch:
- EEE – to enable/disable the IEEE 802.3az Energy-Efficient Ethernet function;
- Flow Control – to enable/disable the Flow Control;
- Port Isolation & Storm Control – Storm Control and Port Isolation mitigate the effects of broadcast storms caused by rogue software and malware, which can propagate across the network and bring communication to a standstill.
Simplified Installation
The DGS-1016D feature a durable, compact metal case alongside a fanless design allowing for improved heat dissipation while maintaining silent operation. The 16Port Gigabit Switch series is rack-mountable and ideal for any business with demanding requirements and a small budget.
Green Technology
The DGS-1016D switch helps you conserve energy automatically through several methods. Link status detection automatically powers down ports that have no link, allowing the switches to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down. Energy-Efficient Ethernet (EEE) conserves energy by dynamically reducing power consumption when data activity is low. These environmentally friendly switches are also RoHS compliant, use recyclable packaging, and minimize the use of harmful substances. These green features combined, provide more energy savings and a longer product life, without sacrificing operational performance or functionality.
General features
|
Hardware Revision
|
K1
|
J1
|
|
Hardware
|
||
|
Flash Memory
|
• 1 Mbyte
|
• 4 Mbits
|
|
Interfaces
|
• 16 10/100/1000Base-T ports
|
|
|
LEDs
|
• Power (per device)
- Solid Green – Power On
- Light off – Power Off
• Link/Activity/Speed (per port)
- Solid Green – Connection/Link-up
- Blinking Green – Data reception or transmission
- Off – No link
|
• Power (per device)
- Solid Green – Power On
• Link/Activity/Speed (per port)
- Solid Green – Connection (or link) at 1000Mbps
- Blinking green – Reception or transmission at 1000Mbps
- Solid Amber – Connection (or link) at 10/100Mbps
- Blinking Amber – Reception or transmission at 10/100Mbps
|
|
DIP Switch
|
• Normal
• Extend
• Flow Control Off
• Port Isolation
|
• EEE
• Flow Control
• Port Isolation & Storm Control
|
|
Power Connector
|
• AC power input connector
|
|
|
Case
|
• Metal
|
|
|
Installation
|
• Desktop
• 19 inch rack mounting
|
|
|
Functionality
|
||
|
Port Standards/Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• •IEEE 802.3ab 1000Base-T
• IEEE 802.3az Energy-Efficient Ethernet
• Speed and duplex mode auto-negotiation for each port
• IEEE 802.3x Flow Control
• Auto MDI/MDIX adjustment for all ports
|
|
|
Duplex Mode
|
• Full/Half-duplex for 10/100 Mbps
• Full-duplex for 1000 Mbps
|
|
|
Additional Functions
|
• Green Technology: saves power by detecting link status and cable length
• Broadcast Storm Control
• Head-of-Line (HOL) Blocking Protection
• Port Isolation
• IEEE 802.1p QoS: 4 queues
• Cable Diagnostics: via port LEDs
|
• Green Technology: saves power by detecting link status and cable length
• Broadcast Storm Control
• Head-of-Line (HOL) Blocking Protection
• Port Isolation
• IEEE 802.1p QoS: 8 queues
• Cable Diagnostics: via port LEDs
|
|
Performance
|
||
|
Switching Capacity
|
• 32 Gbps
|
|
|
Transmission Method
|
• Store-and-forward
|
|
|
MAC Address Table
|
• 8K entries
|
|
|
Max. Packet Forwarding Rate
|
• 23.81 Mpps
|
|
|
MAC Address Learning
|
• Automatic
|
|
|
Packet Buffer
|
• 512 KB
|
|
|
Jumbo Frame Size
|
• 9,216 bytes
|
|
|
Protocol
|
• CSMA/CD
|
• CSMA/CD
|
|
Physical Parameters
|
||
|
Dimensions (L x W x H)
|
• 280 x 126 x 44 mm
|
|
|
Weight
|
• 0.850 kg
|
• 0.952 kg
|
|
Operation Conditions
|
||
|
Power Input
|
• AC Input: 100 to 240 VAC 50/60 Hz
|
• AC Input: 100 to 240 VAC 50/60 Hz Power cord length: 1.5 m
|
|
Maximum Power Consumption
|
• 9.74 W
|
• 7.7 W
|
|
Standby Power Consumption
|
• 2.5 W
|
• 2.42 W
|
|
Heat Dissipation
|
• 9.73 W (33.23 BTU/hr)
|
• 9.25 W (31.6 BTU/hr)
|
|
MTBF
|
• 530,336 hours
|
• 538,692 hours
|
|
Acoustic
|
• 0 dB
|
|
|
Ventilation System
|
• Fanless
|
|
|
Surge Protection
|
• 4 kV surge protection on all Ethernet ports
|
• 1 kV surge protection on all Ethernet ports
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -40 to 70 °C
|
• Operating: 0 to 40 °C
• Storage: -10 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% non-condensing
• Storage: 5% to 90% non-condensing
|
|
|
Other
|
||
|
Safety
|
• UL
• LVD
• CB
• BSMI
|
|
|
EMI
|
• ICES-003
• FCC Class A
• BSMI Class A
• CE Class A
• VCCI Class A
|
• ICES-003 Class A
• FCC Class A
• RCM Class A
• BSMI Class A
• CE Class A
• VCCI Class A
|
Certificates
Order info
|
DGS-1016D/V/K1A
|
16-Port Configurable Gigabit Switch with DIP Switch
|
|
DGS-1016D/J1
|
16-Port Configurable Gigabit Switch with DIP Switch
|
Pictures

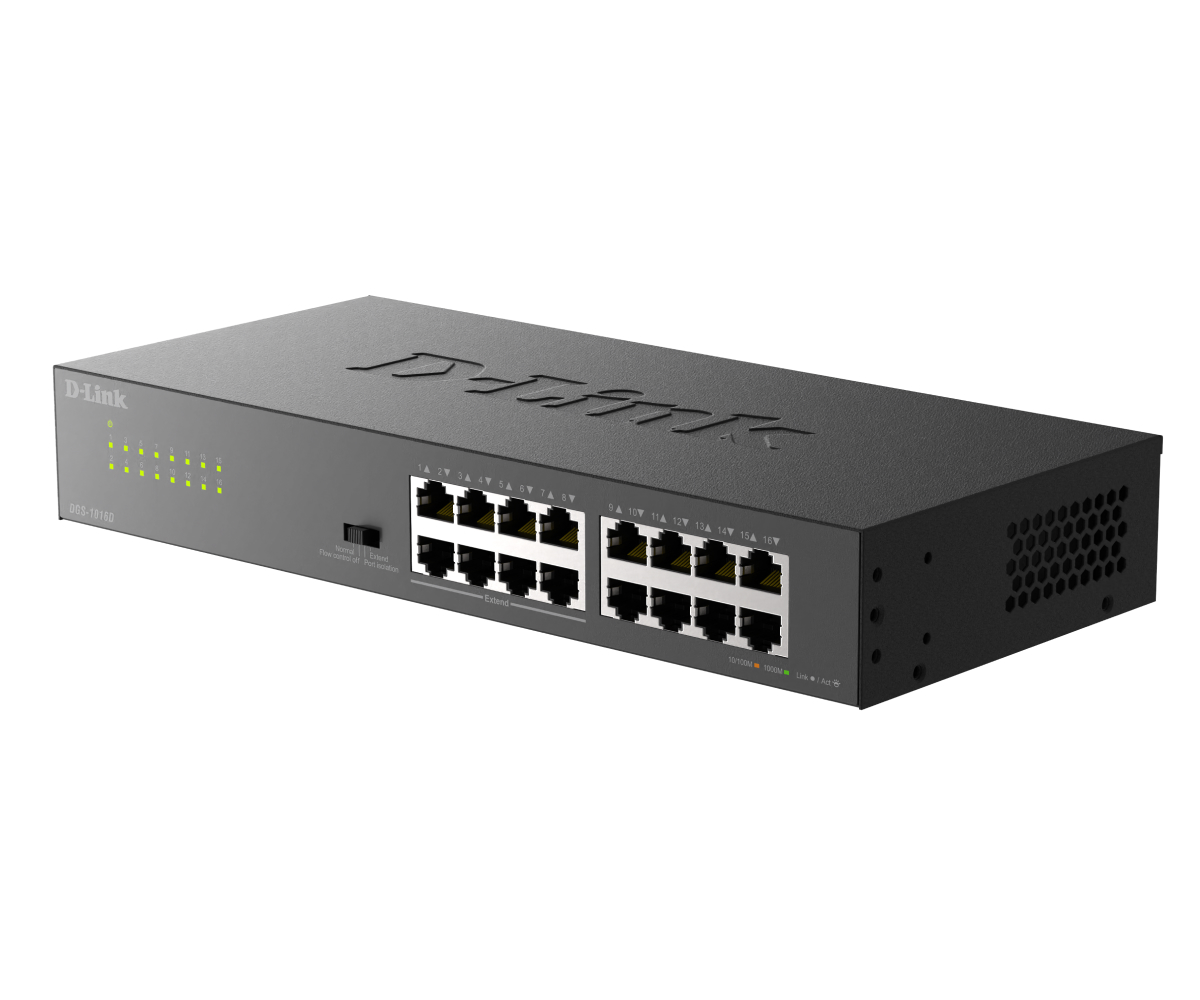

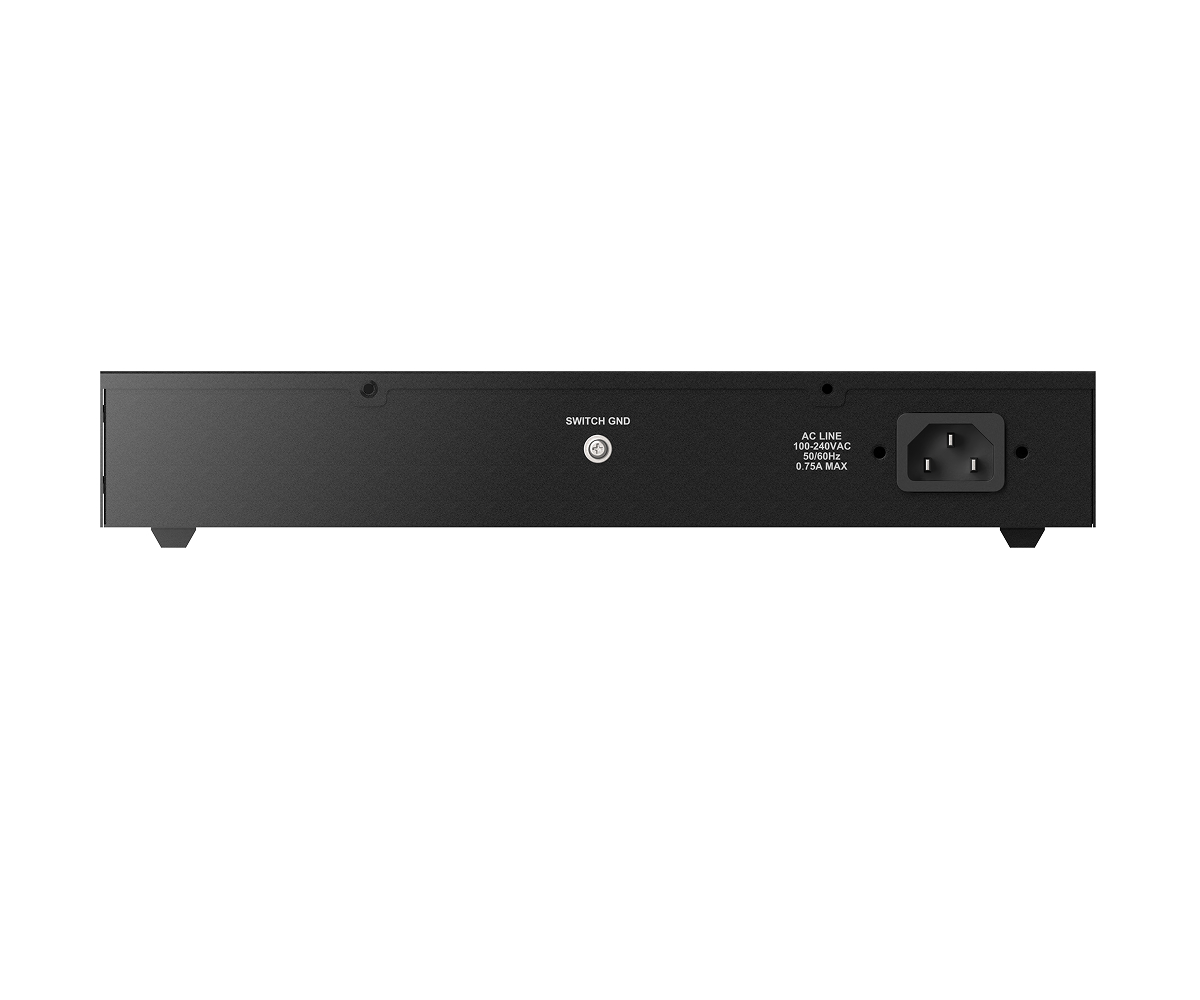

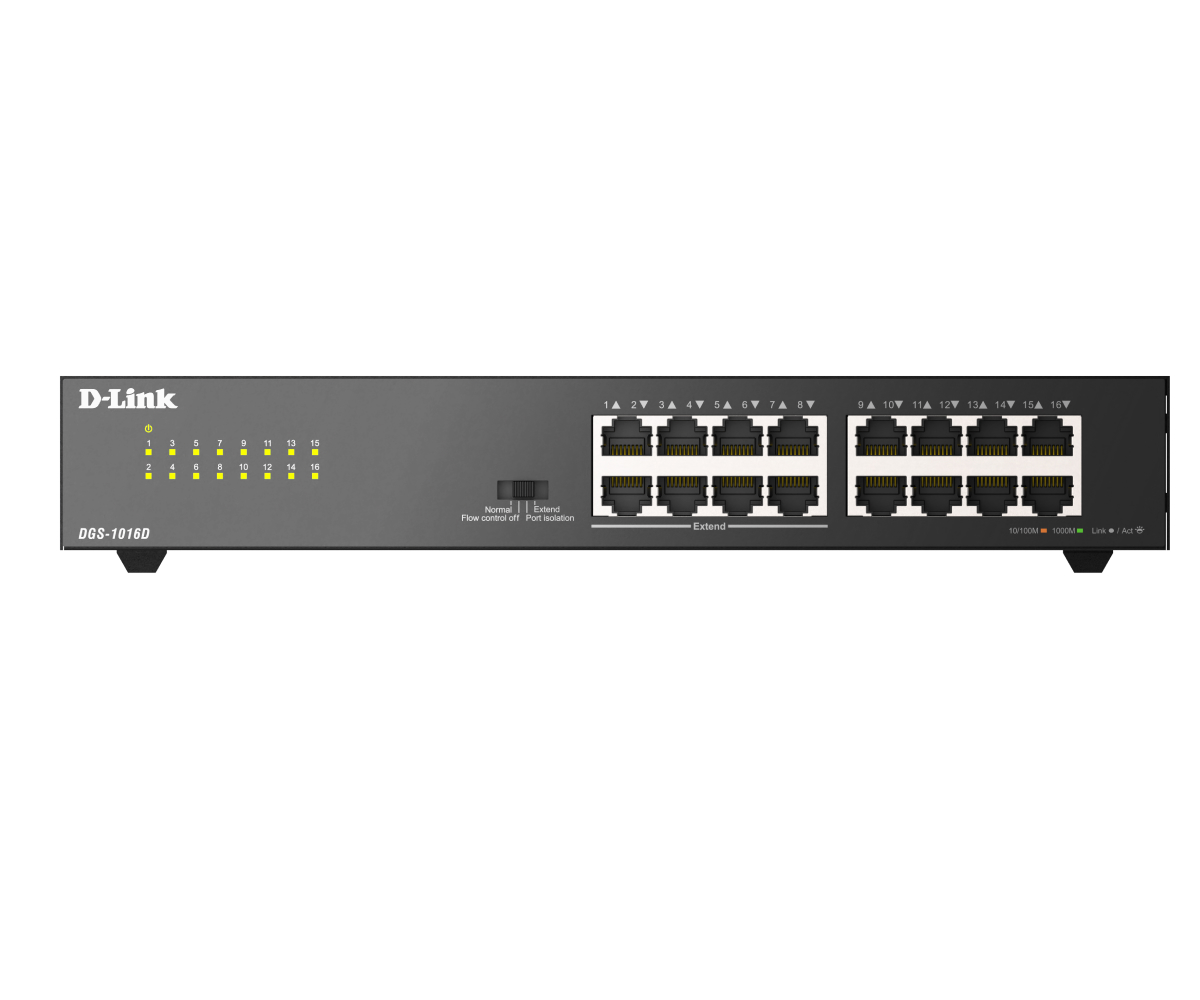

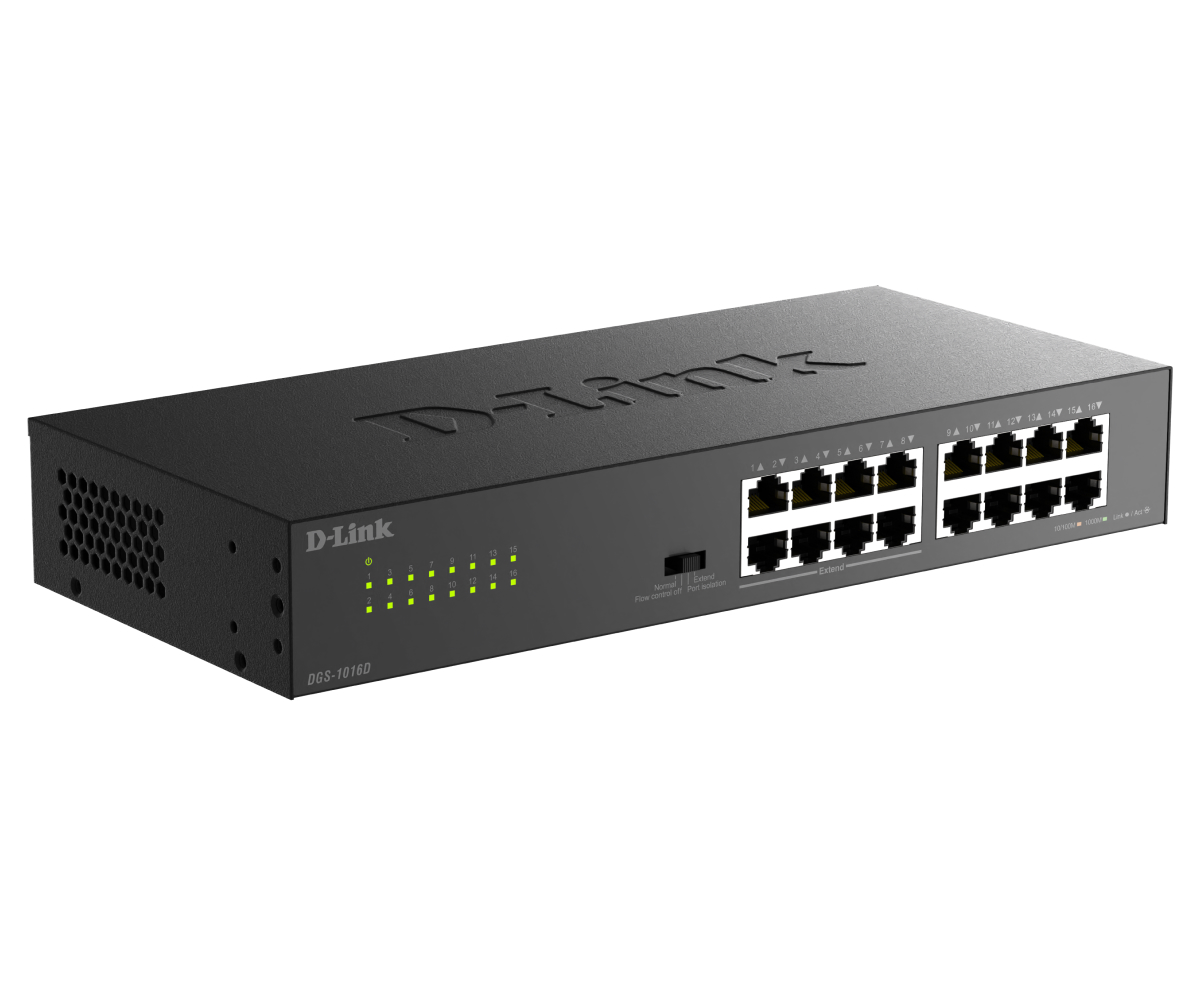

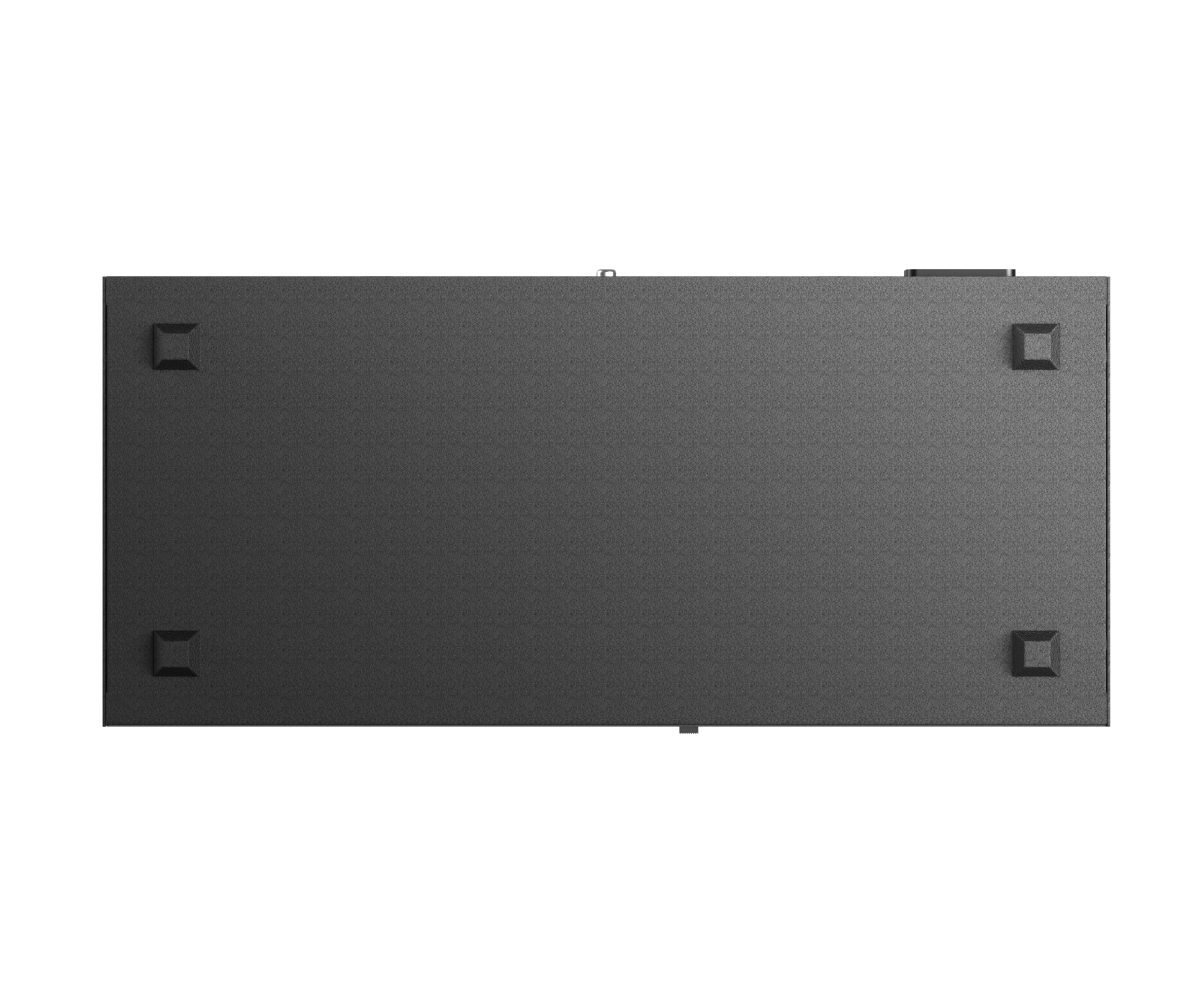

DGS-1016D/K1
