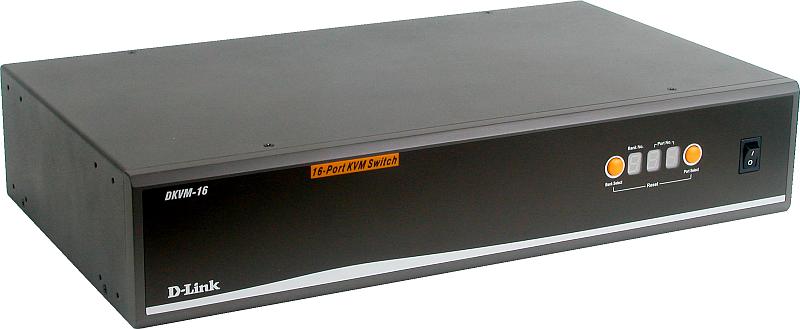

The D-Link DKVM-16 is a Keyboard, Video and Mouse KVM switch that allows you to control up to 16 server computers using one keyboard, mouse, and monitor. It is easy to use, powerful, and scalable. Each DKVM-16 port has a dedicated microprocessor to intelligently manage port traffic and allows simultaneous boot-ups for all attached PCs. The advanced microprocessor technology also saves CAPSLOCK, NUMLOCK, and SCROLL LOCK status for each PC. Two control buttons located on the front panel gives you one touch access to your attached PCs and the user-friendly on-screen display menu allows you to configure your DKVM-16 switch's settings.

The daisy chain port allows up to 8 DKVM-16 KVM switches to be stacked together for controlling as many as 128 computers. Featuring hot-plug, auto-scan, keyboard hot keys and audible feedback, the DKVM-16 makes it simple to manage all of your server computers.



The DKVM-16 supports VGA, SVGA, and MultiSync monitors at up to 1920 X 1440 resolution.

Integrated mouse conversion technology allows older AT type computers with serial mouse ports to be connected to the DKVM-16 using the included serial-to-PS/2 mouse converter.



Both AT and PS/2 type keyboards are also supported, and the most popular mice are supported, including Microsoft IntelliMouse and Microsoft IntelliMouse Explorer.
