DEM-QX10Q-LR4מיועד לפרויקטים

40GBase-LR4 Single-Mode QSFP+ transceiver (up to 10 km)
היכן לקנות


D-Link’s 40G QSFP+ Module series are hot-swappable QSFP+ transceivers that plug into QSFP+ slots on switches and support 40G Ethernet. The D-Link 40GBase QSFP+ Module Series transceivers offer customers a wide variety of 40G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.
Quad Small Form-factor Pluggable Plus Format
The transceivers use the Quad Small Form-factor Pluggable Plus format (QSFP+) connectors, which integrate four transmitting and four receiving channels. QSFP+ supports up to 10.5 Gb/s per channel for applications such as 40G Ethernet.
All D-Link transceivers are hot-pluggable. Hot-swap capability allows network administrators to plug or unplug it from the SFP slot without having to turn off the power of the connected device.
40G Ethernet speeds
The transceivers support 40G Ethernet, which results in very fast data transmissions of up to 40 Gbit/s, that enables the switches to handle fast and heavy data transmissions, making it suitable for business needs.

מאפיינים כללים

General features
• IEEE 802.3ba 40GBase-LR4
• 1271 nm, 1291 nm, 1311 nm, 1331 nm
Data Rate
• 40 Gbps
• Duplex LC
Fiber Type
• 9/125 um Single-mode Fiber
Maximum Fiber Cable Length
• 10 km
Transmit Power Range
• 2.3 to -7 dBm
Receive Power Range
• 2.4 to -11 dBm
• -11.5 dBm
Supported Features
• Hot swap
• MSA compliant
• RoHS compliant
Physical Parameters
Power Support
• 3.3 V
• Operating: 0° to 70°C
• Storage: -20° to 85°C
• Operating: 0% to 85%
• Storage: 0% to 85%
• 78 mm x 18.3 mm x 8.5 mm

נתונים פיזיים

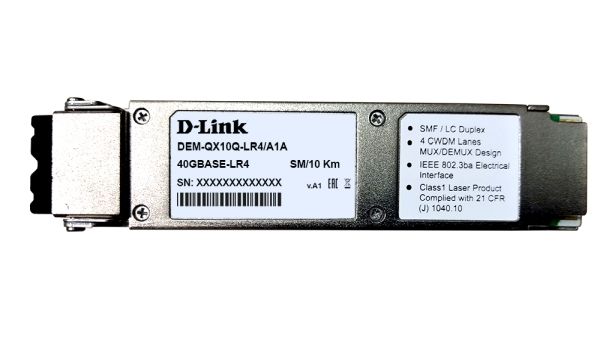

40GBase-LR4 Single-Mode QSFP+ transceiver (up to 10 km)


מראה מקדימה
מראה מימין
מראה מימין
Bottom view
