DES-3528

מתג מנוהל 24 פורטים +Layer2 במהירות 10/100 + 2 פורטים ג'יגהביט + 2 פורטים Combo SFP
היכן לקנות

תאור

The xStack® DES-3528 by D-Link is a high-performance, managed, stackable Layer 2 switch that provides an ideal solution for workgroups and edge deployments of a network. The D-Link Single IP Management (SIM) allows administrators to cluster up a virtual stack of up to 32 DES-3528 dispersed switches with fewer distance limitations through a single IP address. The clustering environment spans buildings, making it perfect for businesses that require multiple building deployments. The DES-3528 also supports physical stacking of up to 8 units in a stack, so that the entire stack can act as a single logical unit with up to 4Gbps of stacking backplane. The xStack switch also provides comprehensive security for edge access such as Access Control List, DHCP server screening and DoS attack prevention.

Non-Blocking Switching
The DES-3528 provides a non-blocking switching solution for 10/100 Fast Ethernet connections. The DES-3528 supports 24 10/100Mbps ports, with 4 gigabit 10/100/1000BASE-T ports. Two of these gigabit copper ports are disabled when the two 1000BASE-X SFP are used, also known as dual personality or combo ports. The DES-3528 has a non-blocking bandwidth of 12.8Gbps; the xStack switch has a redundant power option for mission critical applications.

Advanced Network Security
For edge network security, the DES-3528 supports DHCP server screening, client filtering, and IP-MAC-Port Binding to prevent security breaches such as rogue DHCP server, man-in-the-middle attacks and IP spoofing. For clients with XP SP3, Vista, or servers with Microsoft’s Server 2008, DES-3528 works in conjunction with Microsoft’s Network Access Protection (NAP) as part of an ecosystem that enforces compliance with network health policies. The xStack switch will grant network host access only if it complies with IT security policies such as up-to-date anti-virus signatures and operating system patches. This prevents a virus-infested client or server from gaining access and further contamination.

The xStack switch also supports loopback detection, which detects a loop in the network even though the end device causing the loop is without spanning tree. When the switch detects a loop is in the connected node, the DES-3528 shuts down the port with the loop so that the entire system will continue to function normally. This feature can also be VLAN based.

The DES-3528 incorporates advanced mechanisms to detect an attack against the switch’s central processing unit and to take corrective action on the attacking interface. When a Denial of Service attack is waged against the xStack switch, the D-Link Safeguard Engine detects the threat and prevents overload of the central processor thus insuring network integrity and helping to maintain open network bandwidth channels.

In addition, the DES-3528 supports 802.1x authentication, which securly allow users to log onto your network. When used in conjunction with a RADIUS server, 802.1x requires each user workstation attached to the xStack switches to provide a username and password before gaining access to the network. Web-based authentication option is available for those clients who may not have the 802.1x supplicant, while MAC-based authentication can make the authentication process automatically, authenticated by the 802.1x server based on the client’s MAC address. Other security features include access control list, which an administrator can restrict the access of a network through a variety of means including MAC address, IP, UDP/TCP, and even VLAN ID.

IP Clustering Stackable
The xStack DES-3528 provides D-Link Single IP Management Technology (SIM), allowing a set of switches to be managed by a single IP, regardless of geographical locations. Traffic running among units in this virtual stack is through the full-duplex Gigabit interfaces and your usual network wires, doing away with the costly and cumbersome stacking cables. Without any stacking cable, cable distance barrier and physical stacking limitations, your stack can comprise units that are located anywhere on the network, minimizing the impact of any single point of failure. Furthermore, multiple xStack switches can be configured, monitored and maintained from any workstation running a web browser through one unique IP address. The stack is managed as a single object, with all units identified by a single IP address. With Tree View, you can obtain and overview of the members of the stack and a network topology showing the locations of the units and their link information. This provides simple yet powerful web-based management without expensive SNMP network management software. You can add up to 32 switches per stack not limited to any specific D-Link models. With embedded SIM, you can expand your Ethernet stack to include L3 core Gigabit and chassis based switches to accommodate your network growth.

Voice and Video Applications
For today’s businesses, having voice, data and video on the same network is common practice. This challenge is met by the DES-3528, which supports 802.1p with 8 queues. The administrator can designate the priority of the traffic based on a variety of means including IP or MAC address, so that voice data is always clear and jitter free. Video traffic can also be assigned with the same priority. In addition, the switch provides IGMP Snooping or MLD snooping, which allows the forwarding of multicast packets such as streaming audio and video, without increasing network broadcast congestion. By snooping IGMP registration information within a frame, a list of workstations in the multicast group is created. This list then allows the switch to intelligently forward packets to only the appropriate member workstations. In conjunction with the 802.1Q VLANs, Quality of Service and security can be achieved on a network infused with data traffic.

For other multimedia-on-demand applications, such as IPTV deployments, the DES-3528 provides advanced features for easy video streaming management. For example, this xStack family supports per port multicast stream control, which allows a service provider to assign limited multicast addresses per port. This means it can act as a security control that pre-configures channels for each subscriber on a port level to prevent unauthorized multicast join. DES-3528 also supports IGMP multicast VLAN, which eliminates duplicate multicast traffic being sent to clients in different VLANs and thus removing bottlenecks in the uplink port.

Ease of Management
The DES-3528 supports SNMP v1/2/3 so traps can be set on abnormal events and information can be polled to maximize the productivity of the network. Other standard management features are also supported including RMON and IEEE 802.1d/w/s spanning tree, User interface includes intuitive web-based browser graphic interface or industry-standard CLI, either administration traffic can be protected thru SSL or SSH encryptions.

מאפיינים כללים



Technical Specifications

Device Interface

24 10/100BASE-TX Auto-Negotiating, Auto-MDI/MDIX Ports

2 Dual-Usage 10/100/1000BASE-T Stacking Ports

2 Combo 10/100/1000BASE-T Ports/SFP Slots

RS-232 Console Port

MAC Address Table

16K

Switching Capacity

12.8Gbps

Maximum 64-Byte System Packet Forwarding Rate

9.5 Mpps

Number of VLANs Per Device

Maximum 4,096 Static VLAN Groups

Maximum 255 Dynamic VLAN Groups

Quality of Service (QoS)

8 Independent Hardware Queues (802.1p/Diffserv/ToS)

Stackability

Virtual Stacking with D-Link Single IP Management (SIM) Up to 32 Devices per Virtual Stack

MLD v1/v2

256 Groups Supported, MLD Snooping Fast Leave

Access Control Lists

Up to 768 Access Rules, Time-based ACL, CPU Interface Filtering

Jumbo Frame Support

Up to 9,216K Bytes

IGMP Snooping

Supports 256 Groups, IGMP Fast Leave, Host-based IGMP Fast Leave

Flow Control

802.3x Flow Control, HOL Blocking Prevention

Port Mirroring

Supports one-to-one or many-to-one, Flow-based mirroring

Link Aggregation

Supports up to eight 8-port Groups

D-Link Safeguard Engine

Protects CPU from Broadcast/Multicast/Unicast Flooding

Web-based Graphic User Interface (GUI)

Compatible with Internet Explorer®, Netscape®, Mozilla®, Firefox®, Opera®, Safari® browsers

Interface Options

RJ-45

10BASE-T, 100BASE-TX, 1000BASE-T

SFP Expansion Slots

Media Support Dependent On GBIC Tranceiver

Diagnostic LEDs

Per Device: Power, Console, RPS

Per Gigabit Port: Link/Activity, 10/100Mbps or 1000Mbps Speed

Per Ethernet Port: Link/Activity, 10Mbps or 100Mbps Speed

Network Management

In & Out of Band

Web-Based GUI, Single IP Management v1.6, Command Line Interface (CLI), Telnet Server, Zmodem, SNMP v1/v2c/v3, SNMP Traps, System Log, RMON v1, Support 1,2,3,9 Groups, RMON v2, Support ProbeConfigGroup, BootP/DHCP Client, DHCP Auto-configuration, DHCP Relay, DHCP Relay Option82, Dual Image, Dual Configuration, CPU Monitoring, NTP/SNTP

IEEE

802.1q VLAN Tagging, 802.1v VLAN Protocol, GVRP, 802.1ab Double VLAN (Port-based Q-in-Q, Selective Q-in-Q), VLAN Translation, MAC-based VLAN, Asymmetric VLAN, ISM-VLAN, 802.1p Quality of Service, 802.1D Spanning Tree Protocol (IEEE802.1D-2004 Edition), 802.1w Rapid Spanning Tree Protocol (IEEE802.1D-2004 Edition), 802.1s Multiple Spanning Tree Protocol (IEEE802.1Q-2005 Edition), 802.3x Flow Control, 802.3ad Link Aggregation

IETF

RFC 1112/2236/3376 IGMP v1/v2/v3, RFC 1157 SNMP, RFC 2021 RMON v2, RFC 3810 MLD, RFC1213 MIB-II, RFC1493 Bridge MIB, RFC1907 SNMPv2 MIB, RFC1757/2819 RMON MIB, RFC1643/2358/2665 Ether-like MIB, RFC2674 802.1p MIB, RFC2233/2863 IF MIB, RFC2618 RADIUS AuthenticationClient MIB, RFC2620 RADIUS AccountingClient MIB, RFC2925 Ping & TRACEROUTE MIB, Private MIB

Electrical & Emissions Summary

Emissions

FCC, C-Tick, VCCI Class A

Internal Power Supply

AC to DC

Power Input

100 to 240VAC, 1.5A, 50 to 60Hz

Maximum Power Output

12VDC, 5A

Maximum Power Consumption

20.5 watts

Redundant Power Supply

Connector for Optional External DPS-200

Software Features

L2

Loopback Detection, LLDP

Quality of Service (QoS)

Queue Handling

Strict

Weighted Round Robin (WRR)

Strict + WRR

CoS Based on:

Switch Port

VLAN ID

802.1p Priority Queues

MAC Address

IP v4/v6 Address

DSCP

Protocol Type

IP v6 Traffic Class

IP v6 Flow Label

TCP/UDP Port

User Defined Packet Content

Support Flowing Actions for Flows

Remark 802.1p Priority Tag

Remark TOS-DSCP Tag

Bandwidth Control

Committed Information Rate (CIR), min. granularity 64Kbps

SRED Congestion Control

Bandwidth Control

Port Based (Ingress/Egress, Min. Granularity 64Kbps)

Flow Based (Ingress/Egress, Min. Granularity 64Kbps)

Security

SSH v1/v2

SSL v1/v2/v3

Port Security up to 64 MAC Addresses per port

Broadcast/Multicast/Unicast Storm Control

Traffic Segmentation

IP-MAC-Port Binding

Supports 500 Address Binding Entries per Device

Supports ARP/ACL/Auto (DHCP Snooping) Mode

D-Link Safeguard Engine

NetBIOS/NetBEUI Filtering

DHCP Server Screening

AAA

802.1X

Port-Based Access Control

Host-Based Access Control

Dynamic VLAN Assignment

Web-Based Access Control (WAC)

Port-Based Access Control

Dynamic VLAN Assignment

MAC-Based Access Control (MAC)

Host-Based Access Control

Dynamic VLAN Assignment

Japan Web-Based Access Control (Host-Based J-WAC)

Guest VLAN

RADIUS Accounting

RADIUS and TACACS+ Authentication for Switch Access

3-Level User Account

Physical & Environmental

Temperature

Operating: 32° to 113°F (0° to 45°C)

Storage: -40° to 158°F (-40° to 70°C)

Humidity

5% ~ 95% Relative, Non-condensing

Dimensions (W x D x H)

17.4in x 8.3in x 1.7in (441mm x 210mm x 44mm)

Weight

5.5 lbs (2.5 kg)

Safety Compliance

CSA International and CB Report

Warranty Information

Warranty

3 years Limited

Ordering Information

Part Number

Description

DES-3528

xStack Managed 24-Port 10/100 Layer 2+ Switch, 4 Gigabit Ports and 2 Combo SFP

DEM-310GT

SFP Transceiver for 1000BASE-LX, Single Mode Fiber, Maximum Distance 10Km

DEM-311GT

SFP Transceiver for 1000BASE-SX, Muti Mode Fiber, Maximum Distance 550m

DPS-200

Redundant Power Supply Unit, 60 Watt RPSU

DPS-800

2-Slot Redundant Power Supply Open Chassis, for DPS-200/DPS-500

DPS-900

8-Slot Redundant Power Supply Open Chassis, for DPS-200/DPS-500

DS-510S

D-View 5.1 SNMP Network Management Program, Standard Version

DS-510P

D-View 5.1 SNMP Network Management Program, Professional Version

DV-600S

D-View 6.0 Network Management Software, Standard Version

DV-600P

D-View 6.0 Network Management Software, Professional Version


נתונים פיזיים

תקנים

הורדות

איורים

DES-3528

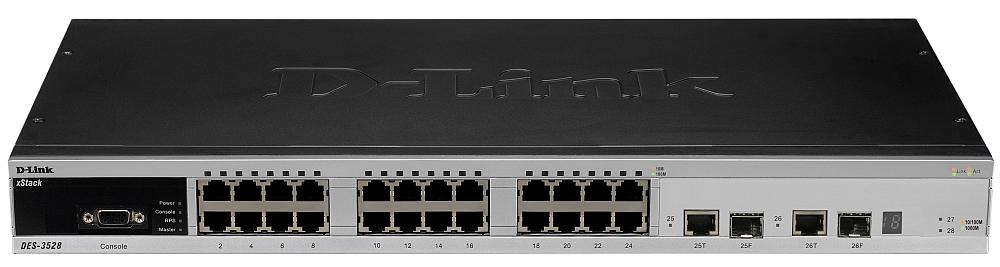

מראה מקדימה

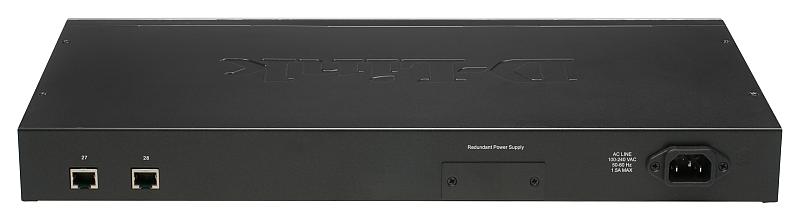

מראה מאחורה
