DGS-3000-28SC

מתג מנוהל עם 20 יציאות ג'יגהביט/אופטי (SFP), ארבע יציאות משולבות ג'יבהביט/אופטי (SFP) וארבע יציאות 10SFP+
היכן לקנות

תאור

Switch DGS-3000-28SC is a line of managed switches D-Link 2 levels and is designed for use in networks Metro Ethernet. The switch is equipped with a 4-port 10GBase-X SFP +, which guarantees high performance gigabit aggregation of a large number of compounds. DGS-3000-28SC made in a 1U and is suitable for desktop installation or for installation in the telecommunications closet.

Reliability
All Ethernet-switch ports DGS-3000-28SC equipped with built-in protection against static electricity to 6 kV, allowing the device to protect against power surges, especially if the cables are Ethernet-in open space or in old buildings. In the event of power failures in the switch, an additional connector for redundant power supply DPS-200A / 500A and DPS-500DC / B1 or DC power supply with a voltage of 12 V. In order to ensure fail-safe Ethernet-channels in the switch supports protocol 802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP) and 802.1s Multiple Spanning Tree (MSTP), the use of which allows you to automatically backup data path. Using this functionality allows the transmission and reception of frames even when faults occur in the network. The switches also support Ethernet Ring Protection Switching (ERPS, ITU-T G.8032), whereby the recovery operation after a failure of the ring does not exceed 50 ms. Using detection loops Loopback Detection (LBD) prevents overloading at uncontrolled network segments administered by subscribers or constructed on the basis of unmanaged switches. In addition, the switch DGS-3000-28SC support port aggregation functionality based on standard 802.1AX, the use of which allows you to combine multiple ports into a group, while increasing bandwidth and improving the fault-tolerant connections to ensure smooth operation and load balancing across multiple network devices.

Triple Play Service
The switch DGS-3000-28SC implemented a wide range of functions multicast Layer 2, including IGMP / MLD Snooping, Fast Leave, and filtering. Support for this functionality provides the ability to work with IPTV-services that are gaining popularity with each passing year and are increasingly in demand in the market. Application features IGMP / MLD Snooping allows host-based connection of multiple IPTV-subscribers to one network interface. ISM VLAN profiles allow users to quickly and easily assign or change the preset settings for ports multicast subscribers. Support for IGMP Authentication eliminates the possibility of unauthorized IPTV-subscription due to conduct authentication set-top boxes.

Switch DGS-3000-28SC support advanced functionality QoS (Quality of Service) to provide quality service Triple Play. Packet classification is based on various header fields or user-defined packet content, allowing traffic prioritization. By using the bandwidth management providers will be able to determine the level of bandwidth of incoming / outgoing channel per port increments up to 64 kbit / s.

Ease of maintenance, efficient troubleshooting
Implemented in the switches support extended functionality OAM (Operation, Administration and Management) can significantly simplify maintenance, and troubleshooting. By using the diagnostics cable, you can remotely monitor the status of Ethernet-cable and determine the location of a fault, allowing the provider to reduce the maintenance costs of the equipment. Function Connectivity Fault Management (CFM, IEEE 802.1ag) is designed for monitoring and troubleshooting in End-To-End Ethernet-networks, giving service providers the ability to perform the connection test to isolate the problematic segments of the network and identify the users of such segments. Technology D-Link Unidirectional Link Detection (DULD) allows you to track the problem of fiber optic connections, and thereby improve the stability of the cable infrastructure networks MAN (Metropolitan Area Network).

High level of safety and efficiency
The switch DGS-3000-28SC provides extended functionality of user authentication / devices, including 802.1X, Access Control Web-based interface (WAC) and MAC-address (MAC). Options WAC and MAC allows network administrators to authenticate the user / device and manage the security of the network without the need to install client software, which is very important when installing the software on the client equipment is not possible. The switch DGS-3000-28SC support functional Compound Authentication, providing network administrators with a choice of several methods of authentication for a single device. Authentication is based on the unit provides precise control access to each device on the network. For integration with billing systems and services supports protocols RADIUS and TACACS. Provided in the switch DGS-3000-28SC function IP-MAC-Port Binding (IMPB) provides strong binding to the addresses and interfaces, and ARP Spoofing Prevention - protects the network from attacks such as Man-In-The-Middle and ARP Spoofing.
To ensure the smooth operation of the network switch DGS-3000-28SC a mechanism D-Link Safeguard Engine to protect the CPU from malicious broadcast traffic congestion caused by viral activity. The switch also supports DHCP Screening, provides filtering DHCP-requests from unauthorized DHCP-servers or routers. Application protection functions BPDU / DoS-attacks and filtering L3 Control Packet Filtering allows you to increase the level of network security.

Support for IPv6
The switch DGS-3000-28SC supports functional IPv6, including MLD Snooping, WAC, IPv6 ACL / QoS and IMPBv6, which promotes easy equipment integration in next-generation networks. In addition, this series supports both protocol stacks IPv4 / v6, allowing the switches to act as a bridge between IPv4 and IPv6.

מאפיינים כללים

Ports
• 20-Port 100/1000 SFP ports
• 4-Port Combo 10/100 / 1000BASE-T / SFP
• 4-Port 10G SFP +

Optional Redundant Power Supply
• DPS-200A / 500A and DPS-500DC / B11

Console Port
• RJ-45

Switching Capacity
• 128 Gbps

64 Byte Packet Forwarding Rate
• 95.24 Mpps

MAC Address Table
• 16K Entries

DRAM for CPU
• 256 MB

Packet Buffer Memory
• 1.5 MB

Flash Memory
• 32 MB

Jumbo Frame
• 13 KBytes

Stackability
• Physical Stacking
  • Up to 80Gbps Full-Duplex Stacking Bandwidth
  • Up to 6 units per Stack
• Virtual Stacking
  • D-Link Single IP Management (SIM)
  • Up to 32 units per Virtual Stack

L2 Features
• 16K MAC Address Table
• Flow Control:
  • 802.3x Flow Control
  • HOL Blocking Prevention
• Jumbo Frames up to 13K bytes
• Spanning Tree Protocols:
  • 802.1D STP
  • 802.1w RSTP
  • 802.1s MSTP
• Root Restriction
• Loopback Detection
• Link Aggregation:
  • Compliant with 802.1AX
  • Up to 32 groups, 8 ports per group
• Port Mirroring:
  • Up to 4 Mirroring group
  • Supports One-to-One, Many-to-One, Flow-based (ACL) Mirroring
• Ethernet Ring Protection Switching (ERPS)
• L2 Protocol Tunneling (L2PT)

L2 Multicasting
• IGMP Snooping:
  • IGMP v1/v2/v3 Snooping, v3 awareness
  • Up to 960 groups
  • Host-based IGMP Snooping Fast Leave
  • Report Suppression
• IGMP Authentication
• IGMP/MLD Proxy Reporting
• Limited IP Multicast (IGMP Filtering)
• MLD Snooping:
  • MLD v1/v2, MLD v2 awareness
  • Up to 960 groups
  • Host-based MLD snooping Fast Leave

VLAN
• VLAN Group:
  • Up to 4094 VLAN
• Port-based VLAN
• MAC-based VLAN
• GVRP:
  • Up to 4094 dynamic VLANs
• 802.1v Protocol VLAN
• 802.1Q Tagged VLAN
• Double VLAN (Q-in-Q):
  • Port-based Q-in-Q
  • Selective Q-in-Q
• ISM VLAN
• VLAN Translation
• Voice VLAN
• VLAN Trunking
• Asymmetric VLAN
• Auto Surveillance VLAN
• Surveillance VLAN
• Private VLAN

L3 Features
• Up to 1024 ARP Entries
• Gratuitous ARP
• IPv6 Neighbor Discovery (ND)
• Default Route

Quality of Service (QoS)
• 8 queues per port
• DSCP
• 802.1p
• Bandwidth Control:
  • Port-based (Ingress/Egress, min. granularity 64 kbps)
  • Flow-based (Ingress/Egress, min. granularity 8 kbps)
  • Per egress queue bandwidth control (min. granularity 64 kbps)
• Queue Handling:
  • Strict Priority Queue (SPQ)
  • Weighted Round Robin (WRR)
  • SPQ + WRR
• Supports the following actions for flows:
  • Remark 802.1p Priority Tag
  • Remark TOS/DSCP Tag
• Time-based QoS
• Three Color Marker
  • trTCM
  • srTCM
• CoS Based on:
  • 802.1p Priority Queues
  • VLAN ID
  • MAC Address
  • Ether Type
  • IPv4/v6 Address
  • IPv6 Traffic Class
  • IPv6 Flow Label
  • DSCP
  • Protocol Type
  • TCP/UDP Port
  • User-Defined Packet Content

Access Control List (ACL)
• ACL based on:
  • Switch Port
  • 802.1p Priority
  • VLAN ID
  • MAC Address
  • IPv4/v6 Address
  • Protocol Type
  • TCP/UDP Port Number
  • User Defined Packet Content
• Up to 1536 ingress access rules
• Up to 768 egress access rules
• Time-based ACL
• CPU Interface Filtering

Security
• SSH v2
• SSL v3
• Port Security
  • Up to 3072 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
• IP-MAC-Port Binding (IMPB):
  • ARP Inspection
  • IP Inspection
  • DHCP Snooping
• Traffic Segmentation
• D-Link Safeguard Engine
• NetBIOS/NetBEUI Filtering
• DHCP Server Screening
• DHCP Client Filtering
• ARP Spoofing Prevention
• BPDU Attack Protection
• DoS Attack Prevention

AAA
• 802.1X
  • Port-based Access Control
  • Host-based Access Control
  • Dynamic VLAN Assignment
• MAC-based Access Control (MAC)
  • Port-based Access Control
  • Host-based Access Control
  • Dynamic VLAN Assignment
• Web-based Access Control (WAC)
  • Port-based Access Control
  • Host-based Access Control
  • Dynamic VLAN Assignment
• Compound Authentication
• Microsoft® NAP (IPv4/v6)
  • Supports 802.1x NAP
  • Supports DHCP NAP
• Guest VLAN
• RADIUS (IPv4/v6)
• TACACS
• TACACS+
• XTACACS+
• Trusted Host
• RADIUS Accounting
• TACACS+ Accounting
• Four-level User Account

OAM
• Cable Diagnostics
• 802.3ah Ethernet Link OAM
• 802.1ag Connectivity Fault Management (CFM)
• 802.3ah D-link Unidirectional Link Detection (DULD)
• Y.1731 OAM
• sFlow

Green Features
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Power-saving function
  • Link Status
  • LED Shut-off
  • Port Shut-off
  • System Hibernation

Management
• Web-based GUI (Supports IPv4/v6)
• Command Line Interface (CLI)
• Telnet Server/Client (Supports IPv4/v6)
• TFTP Client (Supports IPv4/v62)
• FTP Client (Supports IPv4/v6)
• ZModem
• Command Logging
• SNMP v1/v2c/v3
• SNMP Traps
• System Log
• RMON v1:
  • Supports 1,2,3,9 groups
• RMON v2:
  • Supports Probe Config group
• 802.1AB LLDP
• LLDP-MED
• BootP/DHCP Client
• DHCP Auto-Configuration
• DHCP Relay
• DHCP Relay Option 60, 61, 82, and 125
• DHCP Client Option 12
• PPPoE Circuit-ID Tag Insertion
• Multiple Image
• Flash File System
• CPU Monitoring
• Memory Monitoring
• SNTP
• Debug Command
• Password Recovery
• Password Encryption
• Ping (Supports IPv4/v6)
• Traceroute
• Microsoft® NLB (Network Load Balancing) Support

MIB
• RFC1065, 1066, 1155, 1156, 2578 MIB Structure
• RFC1212 Concise MIB Definitions
• RFC1213 MIB II
• RFC1215 MIB Traps Convention
• RFC1493, 4188 Bridge MIB
• RFC1157, 2571-2576 SNMP MIB
• RFC1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
• RFC271, 1757, 2819 RMON MIB
• RFC2021 RMONv2 MIB
• RFC1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
• RFC2668 802.3 MAU MIB
• RFC2674, 4363 802.1p MIB
• RFC2618 RADIUS Authentication Client MIB
• RFC4022 MIB for TCP
• RFC4113 MIB for UDP
• RFC2620 RADIUS Accounting Client MIB
• RFC 2925 Ping & Traceroute MIB
• Running configuration write and backup
• TFTP uploads and downloads
• Trap MIB
• RFC 4293 IPv6 MIB
• RFC 4293 ICMPv6 MIB
• RFC 2737 Entity MIB
• RFC 4293 IPv6 SNMP Mgmt Interface MIB
• Private MIB

IETF® Standards
• RFC768 UDP
• RFC791 IP
• RFC792 ICMPv4
• RFC2463, 4443 ICMPv6
• RFC793 TCP
• RFC826 ARP
• RFC1338, 1519 CIDR
• RFC2474, 3168, 3260 Definition of the DS Field in the IPv4 and IPv6 Header
• RFC1321, 2284, 2865, 2716, 1759, 3580, 3748 Extensible Authentication Protocol (EAP)
• RFC2571, RFC2572, RFC2573, RFC2574 SNMP

IPv6
• RFC2460 IPv6
• RFC2461, 4861 Neighbor Discovery
• RFC2462, 4862 IPv6 Stateless Address Auto-configuration
• RFC2464 IPv6 Neighbor over Ethernet and definition
• RFC3513, 4291 IPv6 Addressing Architecture
• RFC2893, 4213 IPv4/IPv6 dual stack function


נתונים פיזיים

MTBF (hours)
• 567884.3 hrs

Acoustic
• 49.5 dB

Heat Dissipation
• 118.69 Btu / h

Power Input
• AC Input 100 to 240 V AC, 50 to 60 Hz Internal Universal Power Supply

Max Power Consumption
• 56.2 W

Dimensions (W x D x H)
• 440 x 209.9 x 44mm

Weight
• 2.156 Kg

Ventilation
• Smart Fan

Power Surge Protection
• All Ethernet ports support IEC61000-4-5 10 / 700us 6 kV surge protection

Operation Temperature
• 0 to 50 ° C (32 to 122 ° F)

Storage Temperature
• -20 To 70 ° C (-4 to 158 ° F)

Operation Humidity
• 0% to 95% RH

Storage Humidity
• 0% to 95% RH

Emission (EMI)
• CE

Safety
• CE-LVD

תקנים

הורדות

איורים

DGS-3000-28SC/DC

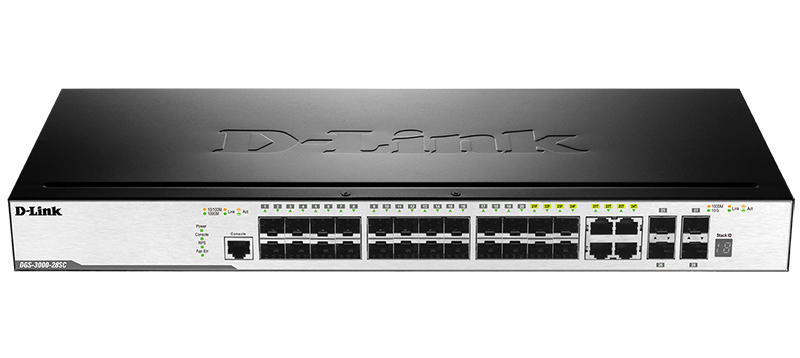

מראה מקדימה

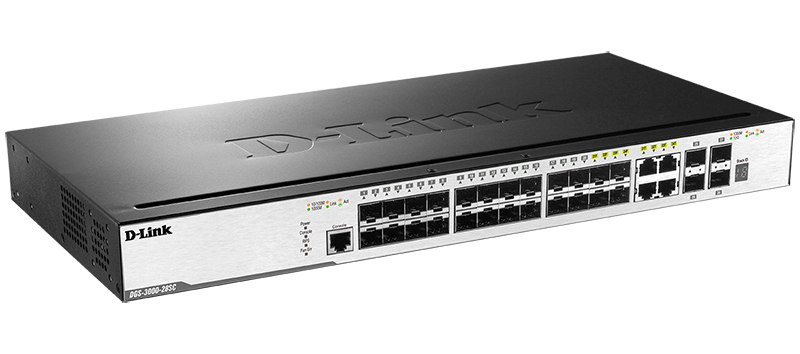

מראה מימין

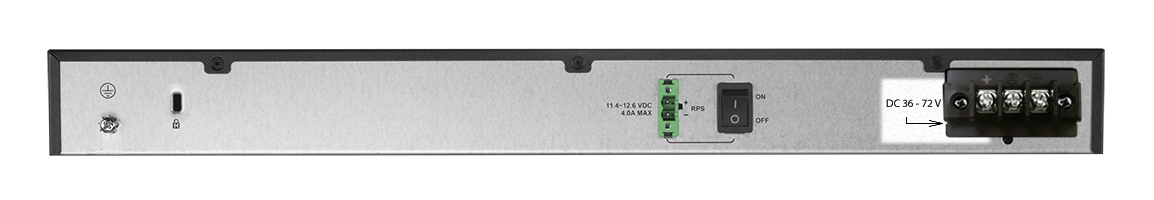

מראה מאחורה
DGS-3000-28SC/A
מראה מקדימה
מראה מימין

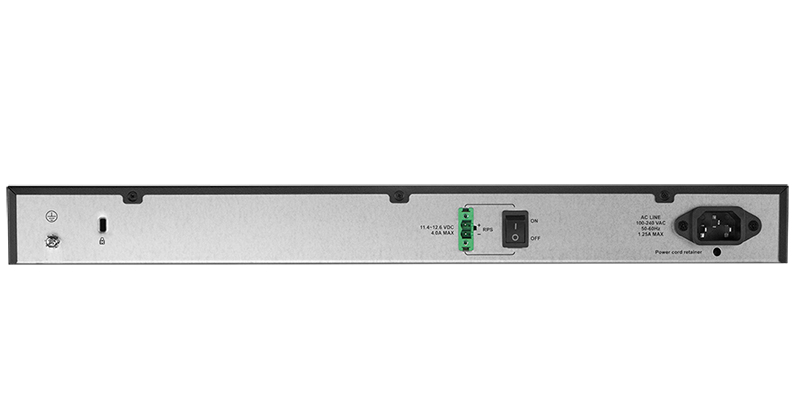

מראה מאחורה
