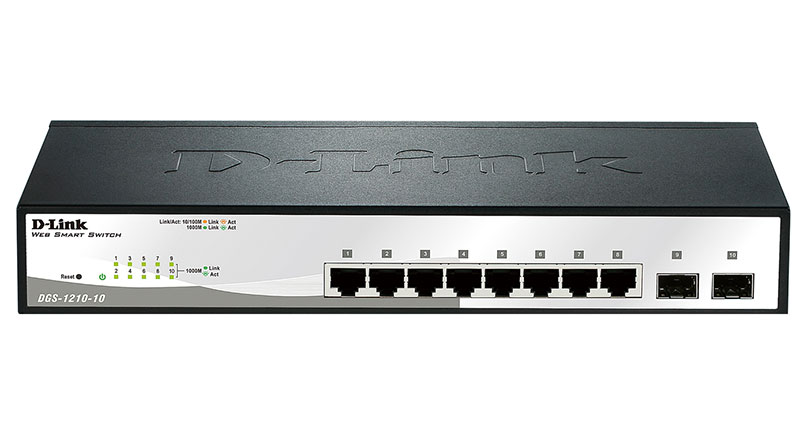

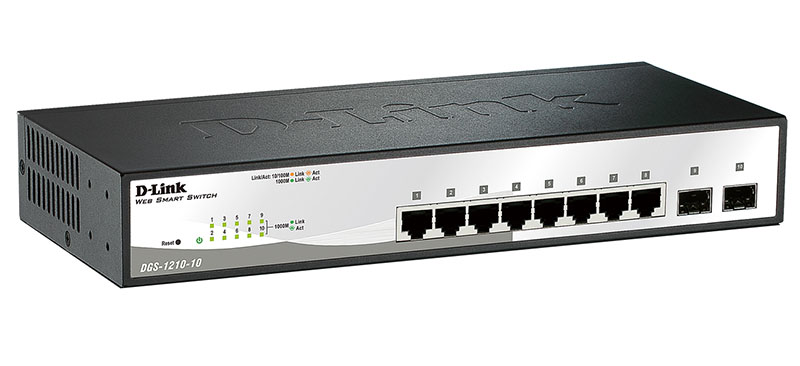

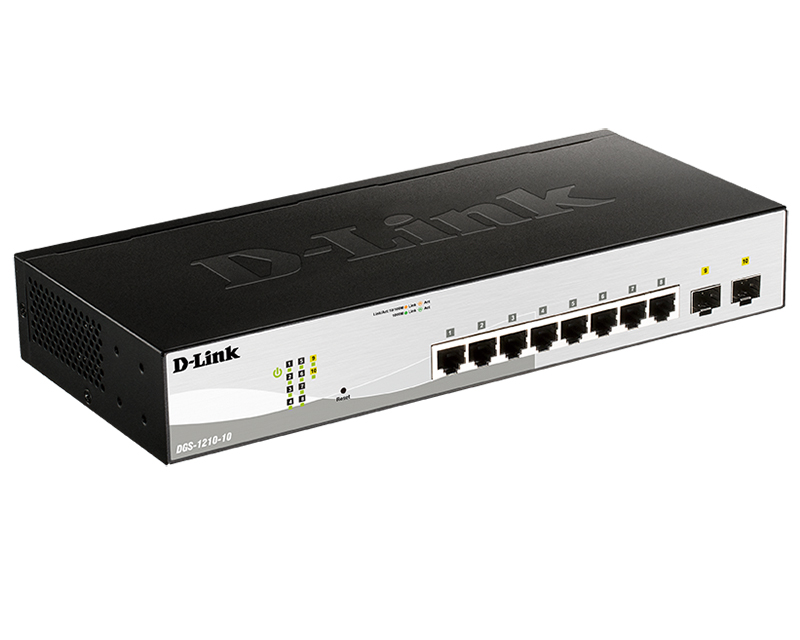

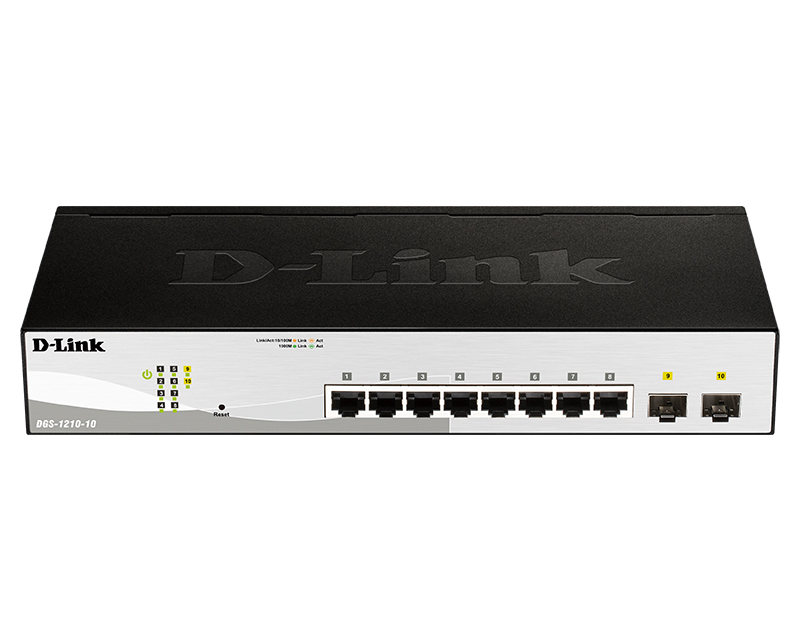

DGS-1210 - a series of Web Smart Switch is the next generation of technology to support D-Link Green. The series supports advanced management and security, providing high performance and scalability network. Management features include SNMP, management of Web-based interface, utility D-Link Network Assistant and Compact Command Lines. Switches DGS-1210 Series supports Auto Voice VLAN, ensuring higher priority for "voice" traffic. Model DGS-1210-10 / 10P / 20/28 are equipped with a passive cooling system, which ensures quiet operation and allows you to extend the life of your device. Model DGS-1210-28P / 52 / 52P / 52MP equipped with intelligent fans who are able to vary the speed depending on the temperature, thus saving energy and reducing costs without affecting performance.
Using the technology of D-Link Green, Switch DGS-1210 series can save energy without sacrificing performance and functionality of the devices. The switch determines the connection status of each port and automatically turns inactive ports in sleep mode. Due to the chipset used series switches DGS-1210 can significantly reduce energy consumption.
Simple operation and function of the level 2
Switches DGS-1210 Series supports a full set of Layer 2 features, including IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP). Function IEEE 802.3x Flow Control allows you to directly connect the server to the switch for fast, reliable data transfer. Maintaining speed on each port to 2000 Mbit / s in full duplex mode, switches provide the performance needed to connect jobs with minimal loss of data. The switches support function and Cable Diagnostics function Loopback Detection. Loopback Detection is used to determine the loops and automatic shut-off port on which a loop was detected. Cable Diagnostics is designed to determine the quality of the twisted pair, and the type of cable error.
QoS, bandwidth management
Switches DGS-1210 Series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, and are an ideal solution for deploying VoIP and video surveillance. Auto Surveillance VLAN - is a new, industry-leading technology, built-in switches, Web Smart D-Link. This technology combines the video data and transmission through one switch Web Smart, reducing thus the cost of equipment and facilities. ASV also ensures quality video in real time and control, without prejudice to the transfer of conventional data network. The automatic determination of the connected equipment VoIP allows you to put "voice" traffic to a dedicated VLAN. With a higher priority and individual VLAN, this feature provides the quality and security of VoIP-traffic. In addition, DSCP marks Ethernet-packs with the appointment of the network traffic of different services. In addition, bandwidth management feature allows network administrators to reserve bandwidth for a variety of applications requiring high throughput or maximize priority.
Function D-Link Safeguard Engine protects the switches against traffic flooding caused by viruses. Authentication based on 802.1X port allows you to use an external RADIUS server to authenticate users. In addition, the Access Control List (ACL) feature enhances network security and helps protect your network by filtering traffic from unauthorized MAC-addresses or IP-addresses. The switches also support the function of preventing attacks ARP Spoofing, protects from attacks on an Ethernet, which can cause a change in traffic or delay by sending fake ARP-messages. To prevent ARP Spoofing attacks, the switch uses the Packet Control ACLs to block packets containing false ARP-message. For added security feature DHCP Server Screening, deny access to unauthorized DHCP-servers.
Using the Utility D-Link Network Assistant allows administrators to remotely manage the network at the port level. Utility D-Link Network Assistant supports automatic detection and display on the D-Link switches Series Web Smart, belonging to the same network segment L2. The utility provides access to the switch from anywhere on the network without the need to enter IP-address or subnet mask that allows you to setup and basic installation of found devices, including password change and update software. Switches DGS-1210 series also support the program D-View 6.0 and a command line interface (CLI) through Telnet. D-View 6.0 is a network management system that lets you control the most important parameters such as performance, reliability, flexibility and security.
Easy integration into an existing network
Switches DGS-1210 series are equipped with copper ports Gigabit Ethernet, provides connectivity to existing cable category 5 twisted pair. Model DGS-1210-20 / 28/52 are equipped with 8/16/24/48 port 10/100/1000 Mbit / s and 4-port 1G SFP, model DGS-1210-52MP / 28P / 52P - 24/48 10 / 100/1000 Mbit / s with PoE and 4-port 1G SFP.
