DGS-1100-24

מתג מנוהל WEB עם 24 פורטים במהירות ג'יגהביט
היכן לקנות

תאור

Overview
D-Link’s DGS-1100 Series Gigabit EasySmart Switches provide an affordable solution for SOHOs, small/medium-sized businesses, as well as enterprise deployments, such as branch offices that require simple network management. The DGS-1100 Series consists of 5, 8, 16, and 24 10/100/1000Mbps port models. The 5 and 8 port models come in a compact desktop enclosure, while the 16 and 24 port models come in a compact 11” desktop/rackmount enclosure. Two versions of the 8-port and 24-port models are available – with and without support for Power over Ethernet (PoE).

D-Link Green / Power Saving Performance
Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), these switches consume less energy by cutting down on power consumption when port utilization is low. By deploying EEE devices, users can cut operating costs and even cut down on necessary cooling equipment, helping small and medium-sized businesses stay within their budgets. The DGS-1100 Series also features D-Link Green Technology that helps save energy automatically. The switches monitor the link status of every port and will drastically reduce power consumption when a port link is down.

Easy to Deploy
The DGS-1100 Series supports an intuitive Client-based utility (SmartConsole Utility or D-Link Network Assistant Utility) and a web-based management interface. The Clientbased Utility allows customers to discover all switches in the D-Link Smart Switch family within the same L2 network segment. With this utility, users do not need to change the IP address of their PC, and this also makes initial setup of the Smart Switches quick and easy. Switches within the same L2 network segment that are connected to the user’s PC are displayed on-screen for instant access. This allows for extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades. The graphic web-based management interface provides a user-friendly interface that enables network administrators to remotely control their network down to the port level.

Surveillance VLAN and Bandwidth Control
The DGS-1100 Series supports Surveillance VLAN for video surveillance deployment. Surveillance VLAN gives video traffic high priority and an individual VLAN, guaranteeing the quality of surveillance traffic through a single DGS-1100 switch, thus sparing businesses the added expenses required for dedicated hardware and facilities. Bandwidth Control can reserve bandwidth on a per port basis for important functions that require larger bandwidth or might have high priority.

PoE Support
The DGS-1100-08P and the DGS-1100-24P deliver Power over Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other standards-compliant powered devices. The DGS-1100-08P complies with the 802.3af PoE standard (up to 15.4W supported on all 8 ports) and has a 64W power budget. The DGS-1100-24P complies with the 802.3at PoE+ standard (up to 30W supported on the first 12 ports) and has a 100W power budget. Using the switch’s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.

Advanced Features
The DGS-1100 Series switches are equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only. Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded. IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput. without a link.

Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

Limited Lifetime Warranty
D-Link offers a Limited Lifetime Warranty on the DGS-1100 Series Gigabit EasySmart switches to further its commitment to product quality and long term customer confidence.

מאפיינים כללים

Number of Ports
• 24

Port Standard & Functions
• IEEE 802.3 compliant
• IEEE 802.3u compliant
• IEEE 802.3ab compliance
• Supports Half/Full-duplex operation at 10/100Mbps
• Supports Full-duplex operation at 1000Mbps
• Supports Auto-Negotiation for each port
• Auto MDI/MDIX
• IEEE 802.3x Flow Control support
• IEEE 802.3az compliant

Performance Switching Capacity
• 48Gbps

Max. Forwarding Rate
• 35.71 Mpps

MAC Address Table Size
• 8K Entries

Packet Buffer
• 512Kbits

Forwarding Mode
• Store and Forward

VLAN
• Port-based VLAN
• 802.1Q Tagged VLAN
• Surveillance VLAN
• Voice VLAN
• Management VLAN
• Asymmetric VLAN
• VLAN Group
     • Supports 128 static VLAN groups (DGS-1100-16/124/-24P)
     • Max. 4094 VIDs

L2 Features
• Flow Control
     • 802.3x Flow Control
     • HOL Blocking Prevention
• Jumbo Frames up to 9216 Bytes
• IGMP Snooping
     • IGMP v1/v2 Snooping
     • Supports 64 Groups
• Link Aggregation
     • 12 groups, 8 ports per group
• Loopback Detection
• Cable Diagnostics
• LLDP
• Port Mirroring
     • One-to-One
     • Many-to-One
• Statistics
     • Tx Ok
     • Tx Error
     • Rx Ok
     • Rx Error
• Spanning Tree Protocol
     • 802.1D STP
     • 802.1w RSTP

QoS
• 802.1p Quality of Service
• 4 queues per port
• Queue Handling
     • Strict
     • Weighted Round Robin (WRR)
• Bandwidth Control
          • Port Based
          • Ingress: minimum granularity 8 Kbps
          • Egress: minimum granularity 64 Kbps

Security
• Static MAC Address
     • Max. 64 entries
     • Broadcast/Multicast/Unknown Unicast Storm Control

Management
• Web-Based GUI (Supports IPv4)
• D-Link Network Assistant Utility

D-Link Green
• Power Saving by:
     • Link Status
     • LED Shut-off
     • Port Shut-off
     • System hibernation
     • Energy Efficient Ethernet (IEEE 802.3az)
     • RoHS Compliant

RFC Standard List
• RFC 768 UDP
• RFC 791 IP
• RFC 792 ICMP
• RFC 793 TCP
• RFC 826 ARP
• RFC 1213 MIB II
• RFC1493 Bridge MIB
• RFC1907 SNMPv2 MIB
• RFC1215 MIB Traps Convention
• RFC2233 Interface Group MIB
• RFC2665 Ether-like MIB
• 802.1p MIB RFC4363
• ZoneDefense MIB
• Private MIB
• RFC 951 BootP Client
• RFC 1542 BootP/DHCP client
• RFC 4363 802.1p
• RFC 2236 IGMP Snooping


נתונים פיזיים

Power
• 100 to 240 VAC, 50 to 60 Hz
• Internal Universal Power Supply

Max. Power Consumption
• 13.94 W

Standy Power Consumption
• 10.37 Watts (DGS-1100-24)

Fan Quantity
• Fanless

Acoustics
• 0 dBA

Heat Dissipation
• 47.57 BTU/hr

Operating Temperature
• 23 to 122 °F (-5 to 50 °C)

Storage Temperature
• -40 to 158 °F (-40 to 70 °C)

Operating Humidity
• 0% to 95% non-condensing

Storage Humidity
• 0% to 95% non-condensing

Dimensions (W x D x H)
• 280mm x 180mm x 44 mm

Weight
• 1.63 kg

Diagnostic LEDs
• Power (Per Device)
• Link/Activity/Speed (Per Port)

Certifications
• FCC Class A
• CE Class A
• VCCI Class A

Safety
• UL/cUL
• CE LVD

MTBF
• 2,406,109 Hours (DGS-1100-24)

תקנים

הורדות

איורים

DGS-1100-24/A

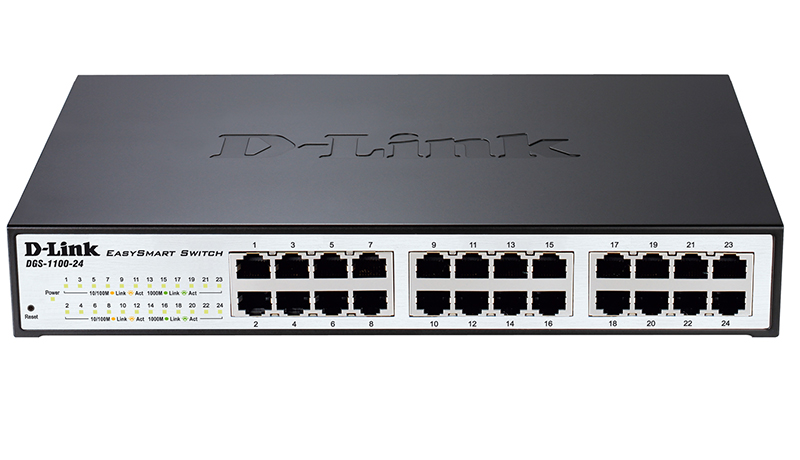

מראה מקדימה

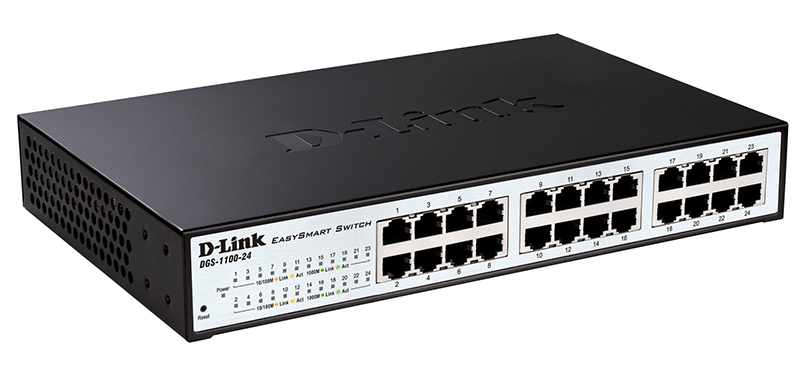

מראה מימין

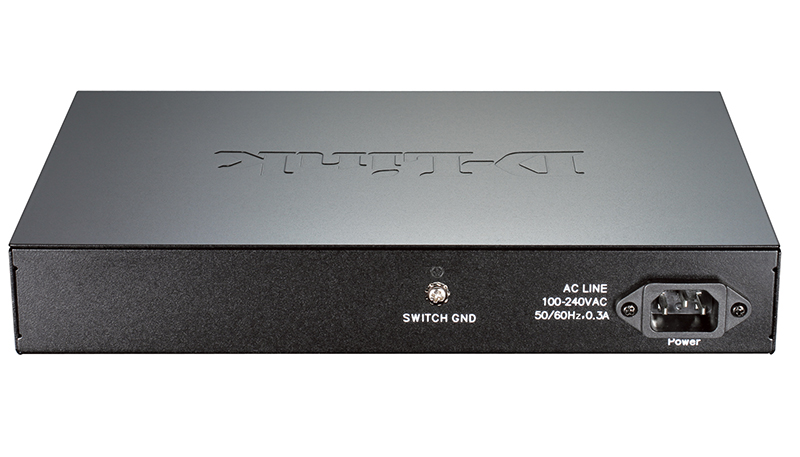

מראה מאחורה
DGS-1100-24/B

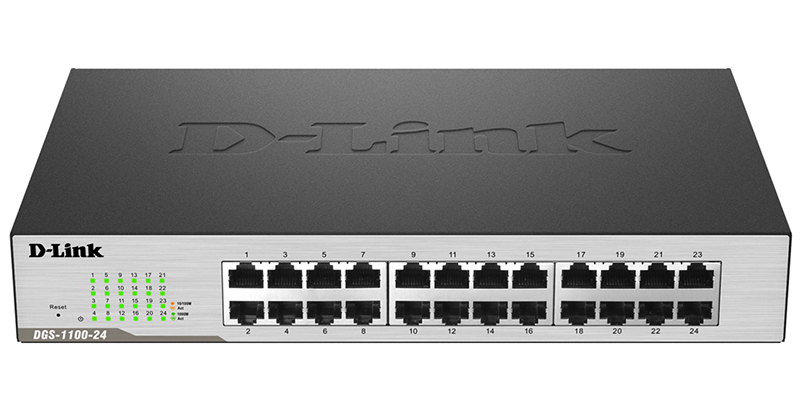

מראה מקדימה

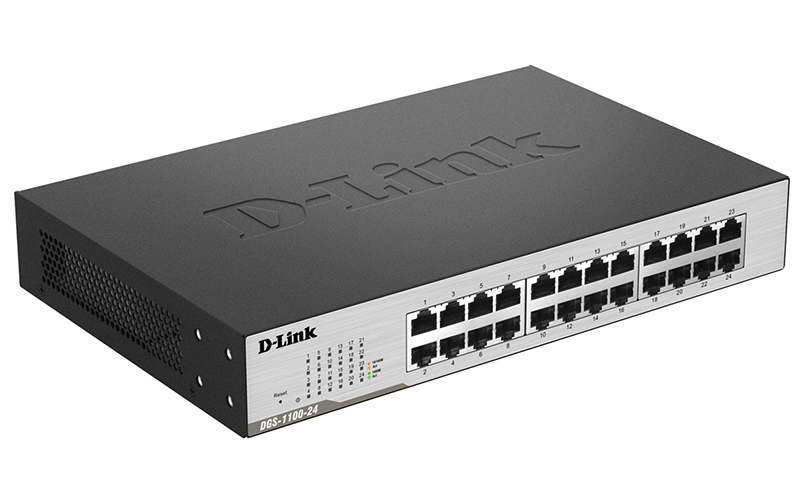

מראה מימין

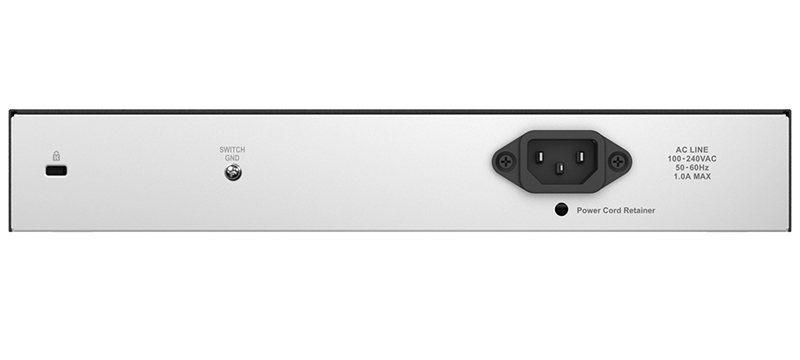

מראה מאחורה
