DGS-1210-12TS/ME

היכן לקנות

תאור

Switch DGS-1210-12TS / ME is the ideal solution for use in networks Metro Ethernet. The switch is equipped with 10-port 1000Base-X SFP ports and two 10/100/1000Base-T. Protection against static electricity ensures the stability to power surges, and the full set of security and authentication protects the network from internal and external threats.

Resilience / performance
Switch DGS-1210-12TS / ME supports protocols Spanning Tree (STP): 802.1D-2004 edition, 802.1w and 802.1s. STP allows you to organize data backup route used in the event of a malfunction of the switch. The switch also supports 802.3ad Link Aggregation, which enables clustering of multiple ports and, consequently, increased bandwidth and increased resiliency compounds. This model supports 802.1p for Quality of Service (QoS), which enables to classify traffic in real time to 8 queues with strict priority handling mechanisms and Weighted Round Robin (WRR). Packet classification is based on TOS, DSCP, MAC, IPv4, VLAN ID, port number, TCP / UDP, protocol type, or the contents of packages, user-defined, and provides a flexible adjustment for certain multimedia applications such as VoIP or IPTV.

Security and Authentication
Switch DGS-1210-12TS / ME supports access control 802.1X port-based / node, the possibility of creating a guest VLAN, and authentication and RADIUS / TACACS + for strict access control on the network. Function IP-MAC-Port Binding to D-Link switch allows you to control access to computers in the network based on their IP and MAC-addresses as well as the connection port, thereby expanding possibilities of access control. Built-in D-Link Safeguard Engine ™ provides identification and prioritization of packets destined for processing by the processor switch, in order to prevent malicious attacks that could interfere with the normal operation of the switch. In addition, the Access Control List (ACL) improves network security and performance.

Control Features
The user-friendly Web-based interface for easy management and automatic configuration DHCP provides advanced management, enabling administrators to pre-configure the settings and save them to a TFTP-server. After that, the individual switches can receive IP-addresses from the server and load the pre-defined configuration settings. Protocol LLDP (Link Layer Discovery Protocol) allows network equipment to notify a local network of its existence and characteristics that help better manage the network topology. In addition, each port of the switch supports cable diagnostics to help identify the different faults, such as cable length discrepancy or its characteristics.

Traffic Control and Bandwidth
Bandwidth control allows network administrators to define bandwidth per port increments up to 64 kbit / s for incoming traffic. Switch DGS-1210-12TS / ME also supports broadcast storm protection, which minimizes the likelihood of virus attacks on the network. Port Mirroring facilitate traffic diagnostics and helps administrators to monitor switch performance and alter it if necessary. Support for IGMP Snooping allows you to reduce the amount of multicast traffic and to optimize network performance.

Multicasting
Switch DGS-1210-12TS/ME supports the full set of features for Layer 2 multicast, including IGMP Snooping, IGMP filtering, Fast Leave, and the setting for multicast traffic on specific ports. With the support of the functional switch DGS-1210-12TS / ME provides an opportunity to work with IPTV-services, enjoys a growing demand in the market. IGMP / MLD Snooping allows host-based connection of multiple customer multicast group to a single network interface. When you use the ISM VLAN multicast traffic for efficient bandwidth consumption is transmitted in a separate VLAN. ISM VLAN profiles allow users to quickly and easily assign / change the preset settings on ports multicast subscribers.

מאפיינים כללים

Interfaces
• 10-port 1000Base-X SFP
• 2-port 10/100 / 1000Base-T
• Auto MDI / MDIX on all ports on twisted pair

Network Cables
• UTP Category 5, 5e (max. 100 m)

Size
• For installation in a standard 11-inch rack, 1U height

Console port
• RJ-45


Switching matrix
• 24 Gbit / s

Speed ​​forwarding 64-byte packets
• 17,86 Mpps

MAC-address table
• 16K

Amount of RAM
• 256 MbDDR3

Packet buffer
• 1,5 MB

Flash-memory
• 32 MB


Standards and functions
• IEEE 802.3 10Base-T Ethernet (mednayavitayapara)
• IEEE 802.3u 100Base-TX Fast Ethernet (mednayavitayapara)
• IEEE 802.3ab 1000Base-T Gigabit Ethernet (mednayavitayapara)
• IEEE 802.3az
• Auto-negotiation
• IEEE 802.3x Flow Control
• IEEE802.3z 1000Base-X Gigabit Fiber

Options
• MAC-address table: 16K entries
• Spanning Tree Protocol
• 802.1D STP
• 802.1w RSTP
• 802.1s MSTP
• BPDU Filtering
• Root restriction
• Loopback detection
• Mirroring
• Supports 1 Mirroring group
• Modes: One-to-One, Many-to-One, Flow-based (ACL) for incoming traffic
• L2 Protocol Tunneling (L2PT)
• Link aggregation
• Compatible with 802.3ad
• Max. 8 groups on 8 groups device

Multicast Layer 2
• IGMP Snooping
• IGMP v1 / v2 snooping, v3 awareness
• Filter / authentication IGMP
• Supports 256 groups
• IGMP snooping fast leave naosnoveVLAN / unit
• Report suppression
• MLD snooping
• MLD v1, MLD v2 awareness
• Supports 256 groups

VLAN
• 802.1Q tagged VLAN
• Group VLAN:
• Max. 4094 groups
• VLAN-based port
• GVRP
• AsymmetricVLAN
• Max. 256 dinamicheskihVLAN
• 802.1v protocol VLAN
• VLAN trunking
• VLAN MAC-based address
• Q-in-port-based Qna
• ISM VLAN

Function level 3
• Max. 256 zapiseyARP
• Podderzhka255 static zapiseyARP
• ARP PodderzhkaGratuitous

Quality of service (QoS)
• CoS based on:
• The switch port
• 802.1p Priority Queues
• VLAN ID
• MAC-address
• IPv4 / IPv6-Address
• DSCP
• TOS
• the type of protocol
• TCP / UDP-port
• Class IPv6-traffic
• Bandwidth management:
• Based on the port (included with increments of 64 kbit / s)
• On the basis of the stream (incoming, in increments of up to 64 kbit / s)
• To turn off (in increments of up to 64 kbit / s)
• Mechanisms for queuing:
• Strict Priority
• Weighted Round Robin (WRR)
• 8 output queues

Access Control Lists (ACL)
• ACL based on:
• The switch port
• 802.1p Priority Queues
• VLAN ID
• MAC-address
• Ether type
• TOS
• IPv4 / v6-address
• DSCP
• the type of protocol
• Non-TCP / UDP-port
• ICMP
• Class IPv6-traffic
• Up to 256 access rules for incoming traffic
• Action ACL (enable / disable / mirroring)
• ACL schedule
• ACL statistics
• Filtering CPU interface

AAA
• 802.1X
• Based Access Control Node
• Access control based on port
• Guest VLAN
• Maintaining RADIUS accounting
• Maintain accounts TACACS +
• 4-level user account

Security
• SSH v2
• SSL v1 / 2/3
• Port Security (support up to 64 MAC-addresses per port)
• Detection of the problems associated with the coincidence of network addresses
• PrivyazkaIP-MAC-Port Binding (IMPB)
• ARP-packet inspection
• Inspection of IP-packages
• Support DHCP SnoopingIPv6
• Protection from the broadcast / multicast / unicast storm
• D-Link Safeguard Engine
• DHCP Server Screening
• Filtering DHCP-enabled clients
• Prevention of ARP Spoofing
• Protection against attacks BPDU
• Prevention of DoS attacks
• Traffic Segmentation

OAM
• 802.3ah Ethernet LinkOAM
• Podderzhka802.3ah link layer remote loopback and discovery (SistemnyyzhurnaliSNMP)
• 802.3ah D-Link extension: D-link Unidirectional Link Detection (DULD), (SistemnyyzhurnaliSNMP)
• Diagnostic cable

Managment
• Web-interface (supports IPv4 / IPv6)
• Command Line Interface (CLI)
• Telnet-server / client (support IPv4 / IPv6)
• TFTP-client (IPv4 / v6)
• Registration of teams
• SNMP v1 / v2c / v3
• SNMP Traps
• System Log
• RMON v1
• RMON v2
• LLDP
• BootP / DHCP-Client
• DHCP automatically
• The configuration file is in text format
• Trusted host
• DHCP relay (IPv4 / IPv6)
• DHCP relay agent / local relay
• DHCP relay option 12, 37, 38
• DHCP relay option 82
• Tagging PPPoE Circuit-ID
• Trap / alarm / log severity control
• Monitoring the CPU
• SNTP
• LLDP
• Debug commands
• Restoration of the password
• Encryption password
• Bypass password

MIB
• RFC1213 MIB II
• RFC1493 BridgeMIB
• RFC1907 SNMPv2 MIB
• RFC1757, 2819 RMON MIB
• RFC2021 RMONv2 MIB
• RFC1398, 1643, 1650, 2358, 2665 Ether-likeMIB
• RFC2674,4363 802.1p MIB
• RFC 2233, 2863 IF MIB
• RFC 2618 RADIUS authentication client MIB
• RFC 2620 RADIUS accounting client MIB
• RFC 2925 ping & traceroute MIB
• Private MIB
• D-Link Zone Defense MIB

IETF
• RFC768 UDP
• RFC791 IP
• RFC792 ICMPv4
• RFC2463, 4443 ICMPv6
• RFC793 TCP
• RFC826 ARP
• RFC2474, 3260 field definition DSv title IPv4i IPv6
• RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
• RFC2571, RFC2572, RFC2573, RFC2574 SNMP

IPv6
• RFC1981 Path MTU Discovery
• RFC2460 IPv6
• RFC2461, 4861 Neighbor Discovery
• RFC2462, 4862 IPv6 Stateless Address Auto-configuration
• RFC2464 IPv6 Neighbor over Ethernet and definition
• RFC3513, 4291 IPv6 addressing architecture
• RFC2893, 4213 IPv4 / IPv6 dual stack


נתונים פיזיים

Indicators
• Power (per device)
• Console (per device)
• Link / Active / Speed ​​(mess of)

Sizes
• 280 mm x 180 mm x 44 mm

Input supply
• 100-240 VAC, 50-60 Hz

MTBF (hours)
• 405,083

Noise level
• 0 dB

Thermal
• 47,25 BTU / hr

Max. power consumption
• 13,85 W / 7.49 W (standby)

Max. PoE budget
• 78Vt

Power consumption in the standby mode
• 10,3 W / 100 V, W 11.1 / 240

Ventilation system
• Passive

ESD protection
• All Ethernet-ports support standard IEC61000-4-5 built-in ESD protection

Temperature
• Operating: -5 to50 ° C
• Storage: -20 to 70 ° C

Humidity
• Operating: 0% to 95% non-condensing
• Storage: 0% to 95% non-condensing

Other
• BSMI
• CE
• FCC
• VCCI

Security
• BSMI
• UL
• CB
• LVD

תקנים

הורדות

איורים

DGS-1210-12TS/ME

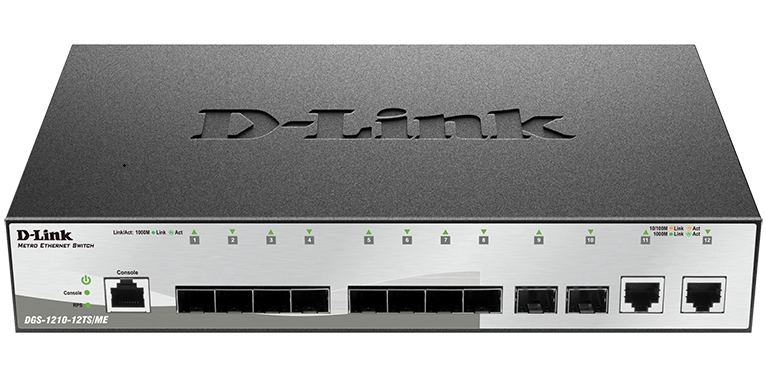

מראה מקדימה

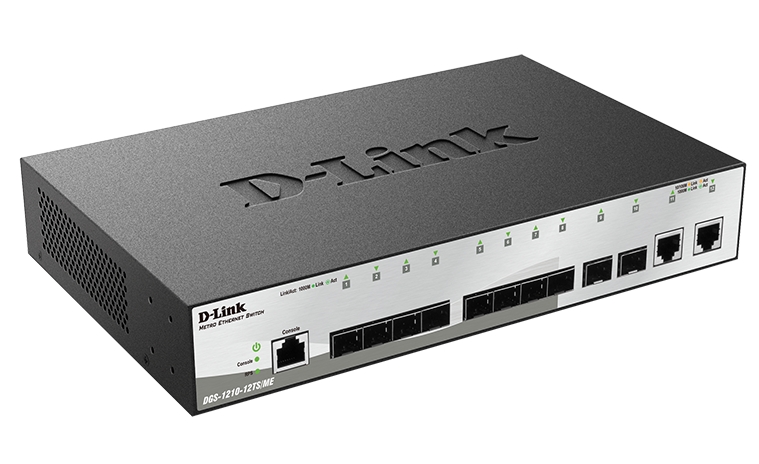

מראה מימין

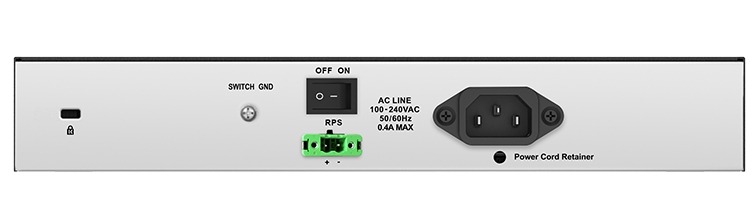

מראה מאחורה
