DGS-1100-08PD

8-Port 10/100/1000Base-T + 1 PD port switch
היכן לקנות

תאור

The DGS-1100-08PD is a switch designed to meet the requirements of small, medium, and enterprise businesses. Advanced management features, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to meet your networking requirements.

D-Link Green/Power Saving Performance
Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), the DGS-1100 Series consumes less energy by cutting down on power consumption when port utilization is low. By deploying compatible devices, users can cut operating costs and even cut down on additional cooling equipment, helping small and medium-sized businesses stay within their budgets. The DGS-1100 Series also features D-Link Green technology that helps save energy automatically. The switches monitor the link status of every port and significantly reduce power consumption of the interface when there is no link or network traffic detected.

Easy to Deploy
The DGS-1100 Series supports an intuitive client-based utility (D-Link Network Assistant) and a web-based management interface. The client-based D-Link Network Assistant (DNA) discovers all D-Link Smart Managed Switches within the same Layer 2 network segment, making the initial setup quick and easy. This allows extensive switch configuration and basic administration of discovered devices, including password changes and firmware upgrades. The web-based interface provides a user-friendly way for network administrators to manage the switch down to the port level. The interface can be accessed from a web browser, allowing the switches to be controlled from any PC that is connected to the network.

Surveillance VLAN and Bandwidth Control
The DGS-1100 Series supports Surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network. This ensures security and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance hardware. Bandwidth Control can reserve bandwidth on a per-port basis for important functions that require larger bandwidth or have higher priority.

Advanced Features
The DGS-1100 Series is equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only. Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded. IGMP Snooping is able to reduce the load of L3 multicast routers and save bandwidth in network throughput.

Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.


מאפיינים כללים

Hardware Version
• B1

Number of Ports
• 8 10/100/1000 Mbps

Port Functions
• IEEE 802.3 for Ethernet
• IEEE 802.3u for Fast Ethernet
• IEEE 802.3ab for Gigabit Ethernet
• Auto-negotiation
• Supports half/full-duplex operation (half at 10/100 Mbps, full at 1000 Mbps)
• Auto MDI/MDIX
• IEEE 802.3x Flow Control supports full-duplex mode
• IEEE 802.3az compliant

Switching Capacity
• 6 Gbps

Maximum Forwarding Rate
• 11.9 Mpps

MAC Address Table Size
• 8K entries

Packet Buffer
• 4.1 Mbits

Flash Memory
• 32 Mbytes

Power Consumption
• Standby Mode: 1.97 W
• Maximum Power Consumption: 4.72 W

Power Input
• 100 to 240 V AC 50 to 60 Hz external power adapter
• 802.3af PoE power via PD port

MTBF
• 648,153 hours

Acoustics
• 0 dB(A)

Heat Dissipation
• 52 BTU/hr

Weight
• 0.45 kg

Dimensions
• 171 x 98 x 27.5 mm

Ventilation
• Fanless

Operating Temperature
• 0 to 40 A°C

Storage Temperature
• -40 to 70 A°C

Operating Humidity
• 0% to 90% RH, non-condensing

Storage Humidity
• 0% to 95% RH, non-condensing

EMI
• FCC Class B, CE Class B, VCCI Class B, BSMI, CCC

Safety
• cUL, CE LVD, CB, BSMI, CCC

VLAN
• Port-based VLAN
• 802.1Q tagged VLAN
• Surveillance VLAN
• Voice VLAN
• Management VLAN
• VLAN Group
• Supports 32 static VLAN groups
• Max. 4094 VIDs
• Asymmetric VLAN

L2 Features
• Flow Control: 802.3x Flow Control, HOL Blocking Prevention
• Jumbo frames up to 9216 bytes
• IGMP Snooping: IGMP v1/v2 Snooping, Supports 128 Groups
• Static Trunk: 2 groups
• Loopback Detection
• Cable diagnostics
• Port mirroring: One-to-One, Many-to-One
• Statistics: Tx Ok, Tx Error, Rx Ok, Rx Error

Quality of Service (QoS)
• 802.1p Quality of Service
• 4 queues per port
• Queue handling: Strict, Weighted Round Robin (WRR)
• Bandwidth control: Port-based (Ingress/Egress, min granularity 16 Kb/s)
• DSCP

Security
• Static MAC addresses: Up to 32 entries
• Traffic segmentation
• Broadcast/Multicast/Unknown Unicast Storm Control
• Port security

Management
• Web-based GUI (Supports IPv4)
• D-Link Network Assistant (DNA)

D-Link Green
• Compliant with RoHS 6
• Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE)

RFC Standard List
• RFC768 UDP
• RFC791 IP
• RFC792 ICMP
• RFC793 TCP
• RFC826 ARP
• IEEE 802.1p
• RFC2236, IGMP Snooping
• RFC1213 MIBII
• RFC1215 MIB Traps Convention

נתונים פיזיים

תקנים

הורדות

DGS-1100-08PD  8-Port 10/100/1000Base-T + 1 PD port switch

איורים

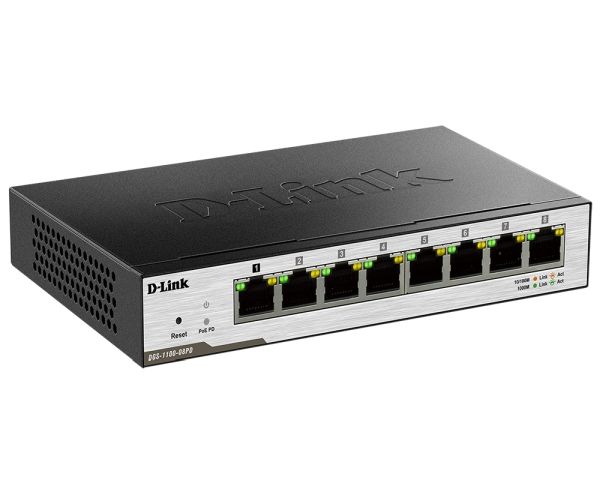

DGS-1100-08PD/B

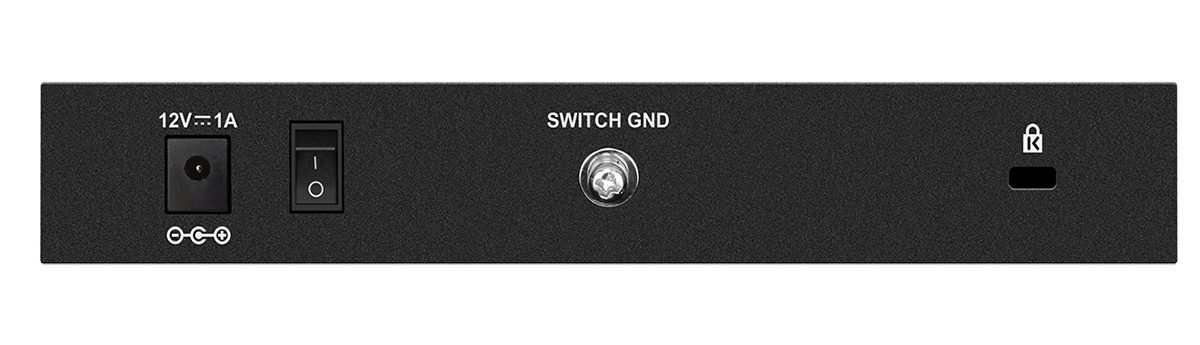

מראה מאחורה

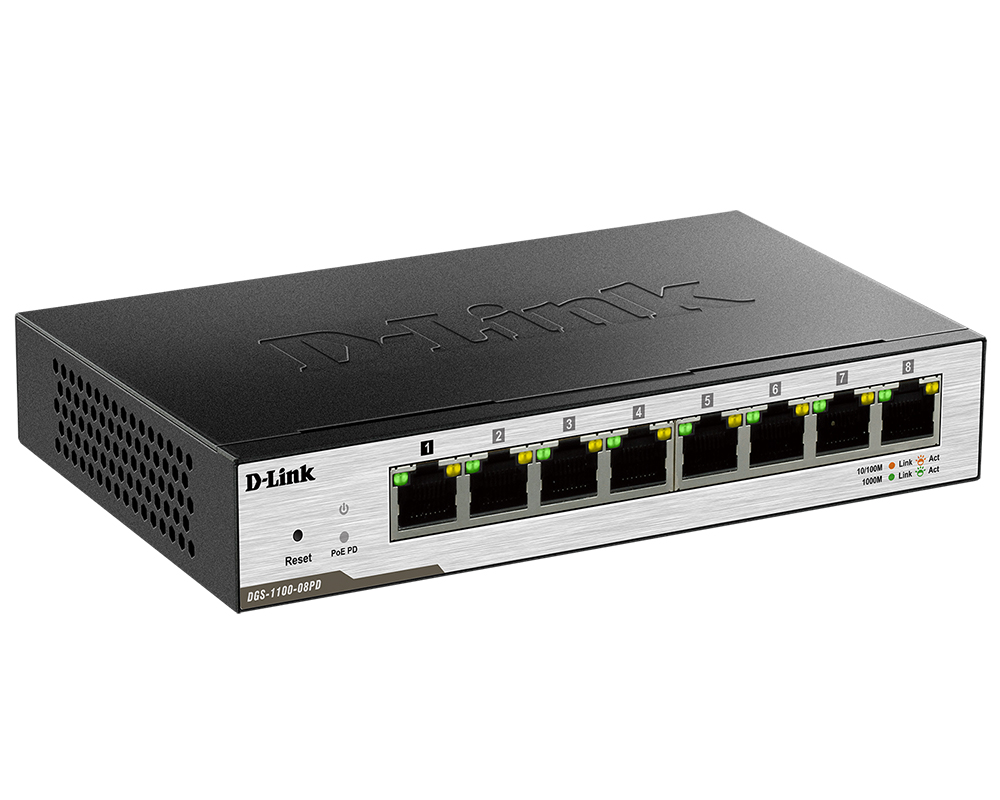

מראה מימין

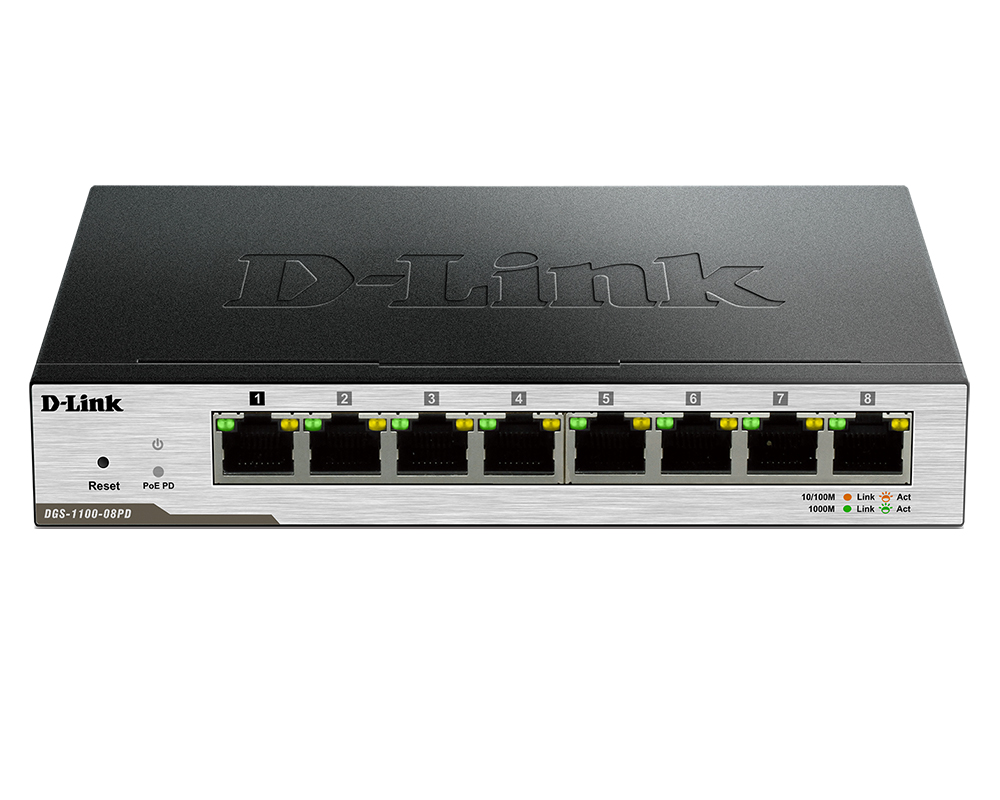

מראה מקדימה
