DGS-3612G

מתג מנוהל 12 פורטים (Layer3 Mini GBIC (SFP, בנוסף 4 פורטים Combo 1000Base-T/Mini GBIC SFP
היכן לקנות

תאור

For the SMB requiring a cost effective core switching solution, as well as for larger Enterprise and Metropolitan Service Provider (MSP) environments needing a managed, feature rich line aggregator, the xStack DGS-3612G is designed to meet the needs of the most demanding departmental and enterprise connectivity applications. The D-Link DGS-3612G Switch is a fully managed Layer 3 switch that provides 12 SFP ports and 4 Combo 1000BASE-T Gigabit Ethernet ports. The DGS-3612G also provides virtual stacking functionality via D-Link SIM technology allowing up to 32 units to be managed via single IP address. With support for IPv4/IPv6 static and dynamic routing and a plethora of advanced security and enhanced QoS features, the xStack DGS-3612G future proofs your network and provides a seamless migration path to IPv6.

Learn more. Download the D-Link End Point Security Strategy Whitepaper

Advanced L3 Routing
xStack DGS-3612G is a high performance Layer 3 switch that provides advanced Layer 3 routing features such as RIP, OSPF, IPv4/IPv6, VRRP, up to 5 IP addresses per VLAN*, and floating static routes. Policy Based routing* (which forwards traffic based on L3/L4 SA/DA) and Multi Path Routing* (which is the method of establishing multiple paths between given source-destination nodes within a network) are also features supported on the DGS-3612G. These added routing features provide redundancy, improve network utilization, and provide load balancing for the network.

Watch the episode on DGS-3612G for SMB with IPv6 routing.

Watch the advanced switching episode on DGS-3612G.

Comprehensive Security
The DGS-3612G incorporates an advanced portfolio of security features designed to protect your network from malicious attacks. SSH & SSL encrypted management guarantee secure private configuration and monitoring when using the Graphical User Interface and Command Line. IP to MAC binding prevents unauthorized devices from accessing network resources, and also acts as an anti- spoofing tool. 802.1x port and MAC based authentication help provide added network security by requiring all users attempting to connect to your network to provide a username and password. This username and password must then be authenticated on a RADIUS or TACACS+ server, insuring only authorized users have access to the network. Access control lists based on Layers 2/3/4, Rate Limiting, and Guest VLANs provide even more control over what and how users access the network. Finally, with D-Link’s CPU Safeguard Engine, the DGS-3612G is protected from Broadcast, Multicast, and Unicast flooding which in turn prevents the DGS-3612G from being crippled by DoS attacks.

Preparing your network for the future of routing. Read the whitepaper on IPv6

Enhanced Enterprise Features
The xStack DGS-3612G facilitates the deployment of enterprise applications such as VOIP, streaming media, and multicast content delivery such as IP video conferencing and software deployment with enhanced enterprise features such as L2/L3/L4 QoS, IGMP and MLD snooping, 802.1w Rapid Spanning Tree, 802.1s Multiple Spanning Tree group, 802.3ad Link Aggregation, and 802.1Q VLANs.

* To be supported via free future firmware upgrades

מאפיינים כללים



Product/Performance Specifications

DGS-3612G

Managed Layer 2/3/4 Switch with (12) 1000BASE-X SFP Ports and (4) Combo 1000BASE-T Ports

Packet Buffer

2MB

MAC address Table

16K

IP Routing

256 Static/ 16k Dynamic Total

Aggregated Bandwidth

24Gbps

Throughput

17.86Mpps

Transmission Method

Store-and-Forward

Forwarding Rate

14,880pps (10M)

148,800pps (100M)

1,488,000pps (1000M)

VLANs

Support up to 4K Static, 255 Dynamic 802.1p VLAN Groups

Priority Queues 8 Queues - Strict Priority or Weight Round Robin Queue Scheduling

Classification ACLs

Switch Port, VLAN ID, IEEE802.1p, MAC Address, DSCP, Protocol Type, IPv6 Traffic Class, IPv6 Flow Label, TCP/UDP Port, User Defined Packet Content, Time Based ACL, CPU Interface Filtering

Classification QoS

Switch Port, VLAN ID, IEEE802.1p Priority, MAC Address, IP Address, DSCP, Protocol Type, IPv6 Traffic Class, IPv6 Flow Label, TCP/UDP Port, User Defined Packet Content

Multicast Support

IGMP v1/2/3*, IGMP Snooping

Jumbo Frames

Up to 9216Bytes

Interface Options

RJ-45

10BASE-T, 100BASE-TX & 1000BASE-T

LC

With Optional Standard Small Form-Factor Pluggable (SFP) Gigabit Transceivers

RPS

Redundant Power Option Via Optional DPS-500

Network Management

In Band & Out of Band

Telnet, CLI/Console, RMON, Web-based HTTP, SNMPv1/v2/v3, Syslog, Port Mirroring, TFTP Client, BootP Client, DHCP Client, BootP/DHCP Client

IEEE

802.3 Ethernet, 802.3u Fast Ethernet, 802.3ab Gigabit Ethernet, 802.3z Gigabit Ethernet, 802.1d Spanning Tree, 802.1w Rapid Spanning Tree, 802.1p Priority Tags, 802.1q VLANs (4K static/255 dynamic), 802.3ad Link Aggregation (32 Groups/8 ports), 802.3x Flow Control, 802.1x Port-based/MAC Based Authentication, 802.1s (Multiple Spanning Tree)

IETF

RFC 1157 SNMP, RFC 1112/2236 IGMPv1/2 IGMPv3*, RFC 1757/2021/2819 RMON (4 Groups), RFC 1493 Bridge MIB, RFC 1213 MIB II, RFC 793 TCP, RFC 826 ARP, RFC 854 Telnet, and DiffServ, RFC 1724 RIP v1/2, RFC 1850 OSPF*, DVMRP, RFC 2934 PIM DM, PIM-SM*, RFC 2932 Multicast Routing, RFC 2787 VRRP, RFC 2096 IP Forwarding Table MIB (CIDR), RFC 2787 VRRP MIB, RFC 2618/2620 RADIUS Accounting Client, RFC2618 RADIUS Authentication Client MIB, RFC 2863 IF MI B, RFC 2674 802.1p MIB, RFC 2668 802.3 MAU MIB, RFC 2665 Ether-like MIB, SSH2, SSLv3, TACACS+

Electrical & Emissions Summary

Emissions

CE class A, FCC Class A, VCCI Class A, C-Tick Class A

Power Supply

AC Input: 100 - 240 VAC, 50/60 Hz Internal Universal Power Supply

Power Consumption

60 Watts (maximum)

Safety Agency Certifications and Environmental

Safety

CSA International, CB Report

Temperature

Operating: 0° to 40° C (32° to 104° F)

Storage: -40° to 70° C (-40° to 158° F)

Humidity

Operating: 10% to 85% RH, Non-condensing

Storage: 5% to 95% RH, Non-condensing

Physical Specifications

Dimensions (W x D x H)

441mm(W) x 310mm(D) x 44mm(H) (17.36 x 12.2 x 1.73 in.) 19-inch, 1U Rack-mount size

Weight

9.35lbs

Warranty and Support Information

Warranty

lifetime Warranty

Ordering Information

Part Number

Description

DGS-3612G

Standalone Managed Layer 2/3/4 Switch with (12) SFP Ports, (4) Combo Gigabit Copper Ports

DEM-310GT

Mini-GBIC/SFP 1000BASE-LX (up to 10Km)

DEM-311GT

Mini-GBIC/SFP 1000BASE-SX (up to 550m)

DEM-210

Mini-GBIC/SFP 100BASE-FX SMF (up to 15Km)

DEM-211

Mini-GBIC/SFP 100BASE-FX MMF (up to 2Km)

DPS-500

Redundant Power Supply

DPS-800

2 slot Redundant Power Supply Unit Chassis


נתונים פיזיים

תקנים

הורדות

איורים

DGS-3612G

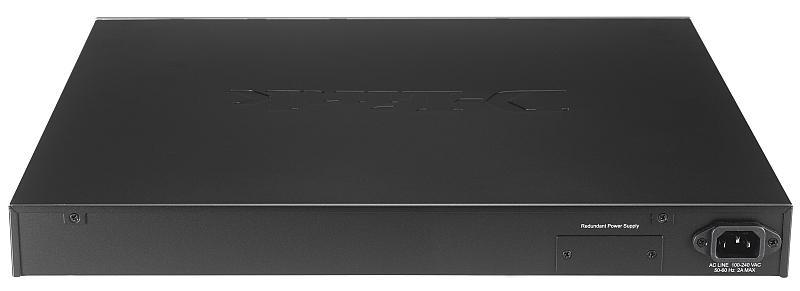

מראה מאחורה

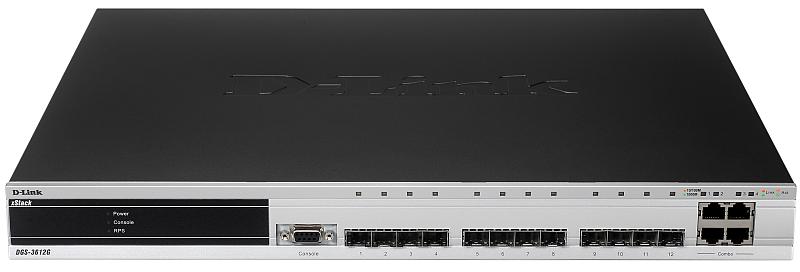

מראה מקדימה
