KVM-450

16-Port KVM Switch with VGA and USB Ports
היכן לקנות

תאור

The D-Link KVM-450 16-port KVM switch with VGA and USB ports allows you to manage up to sixteen computers with one monitor, one keyboard and one mouse. The KVM-450 requires no driver installation and can function without external power adapter connection by powering from USB port of your PC (the included power adapter can be used when connecting external device, for example, USB-disk, to the USB port of the KVM-450). This KVM switch supports hot-plugging - you don't need to turn your computers off before installing the device. The KVM-450 allows you to switch between computers quickly and easily using the buttons located on the front panel or IR remote controller. The KVM-450 supports autoscan mode, which provides automatic switching to the next PC after the scan interval expires. This KVM switch can be mounted in a 19-inch rack with the included mounting brackets.

מאפיינים כללים

Hardware
Ports for connecting KVM cables
• 16 VGA ports

Ports for connecting management console
• Monitor (local): VGA
• Keyboard (local): USB Type-A
• Mouse (local): USB Type-A

Port for connecting external devices
• USB Type

KVM cable connectors for connecting PC
• Video: 15-pin HDB connector (VGA)
• Keyboard/Mouse: USB Type-A connector

LEDs
• 16 port LEDs for connected PCs

Buttons
• 16 port switching buttons
• Reset button

Enclosure
• Metal, 19-inch rack mountable

General Specifications
Connected PCs
• Up to 16

Autoscan mode
• Yes

Switching between PCs
• Switching buttons on the front panel
• IR remote controller

Sound notification of switching
• Yes

Max. resolution
• 1920x1440

Physical Parameters
Weight
• 2.91 kg

Dimensions (L x W x H)
• 490 x 180 x 50 mm

Environmental Conditions
Power Supply
• From USB port on PC
• Power adapter when using external devices

Temperature
• Operating: -50 to 80 °C
• Storage: -20 to 60 °C

Humidity
• 0% to 80% non-condensing

Compatible KVM cables*
• DKVM-CU/B
• DKVM-CU3/B
• DKVM-CU5/B

* NOTE! The KVM cables of hardware revision B are compatible only with the KVM-450 KVM switch of hardware revision C.

נתונים פיזיים

תקנים

הורדות

KVM-450  16-Port KVM Switch with VGA and USB Ports

איורים

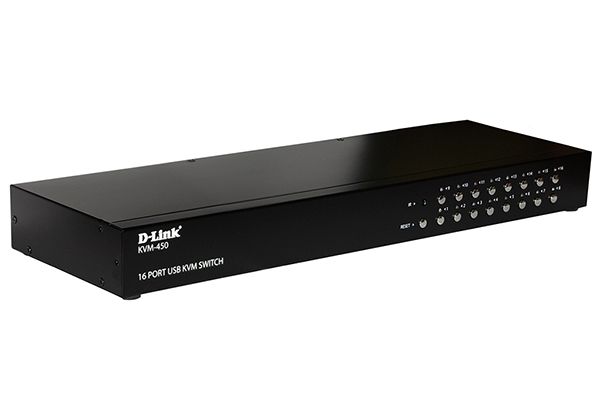

KVM-450

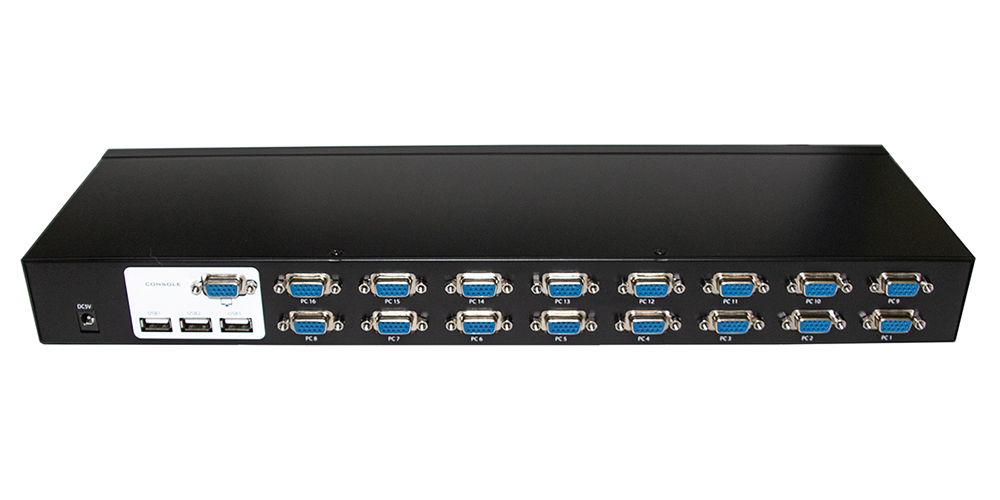

מראה מאחורה

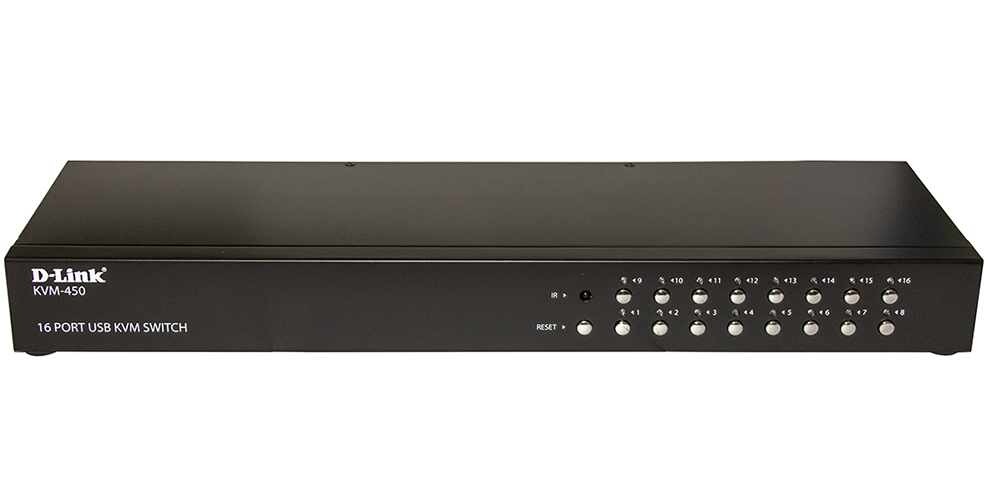

מראה מקדימה

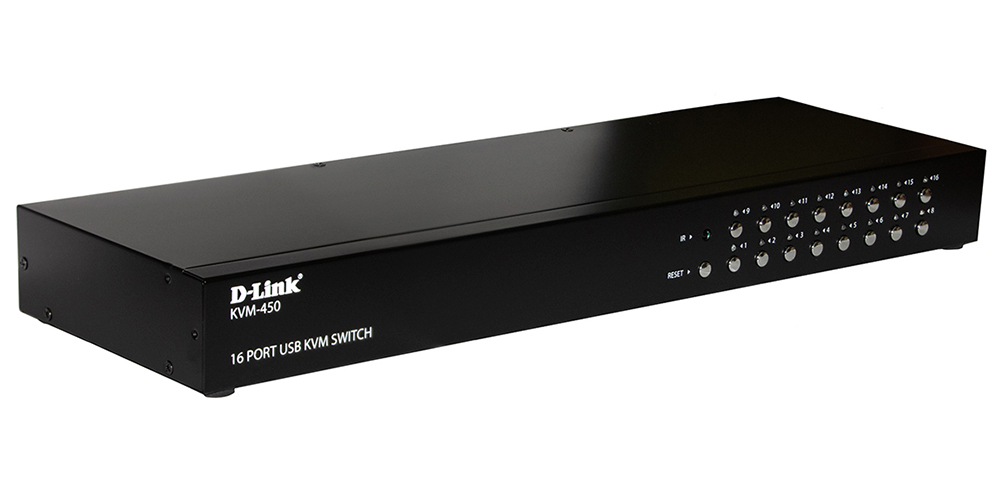

מראה מימין
