DKVM-4UEOL

מתג KVM כולל 4 ערוצים + 2 כבלים USB 2.0 משולבים למקלדת/עכבר/מוניטור

תאור

USB KVM Switch For 4 PCs
The D-Link DKVM-4U KVM switch is a handy device that allows you to control up to 4 PCs using only one monitor, keyboard and mouse. The monitor and the two input devices are connected directly to this KVM switch and not to the client computers. For office users with a need for several PCs, this KVM switch box eliminates the need for several monitors, keyboards and mice, saving the money and desktop space. The DKVM-4U is also a cost effective solution for control of several servers in a computer room, allowing an engineer to handily manipulate all connected computers from a single monitor, keyboard and mouse.

Save money and space
The DKVM-4U allows you to control up to 4 computers from a single keyboard, monitor and mouse, so you don't have to purchase a monitor, keyboard and mouse for each PC. Your desktop will also look less chaotic. Your KVM switch can be placed underneath your desk, with 4 sets to KVM cables connecting from this switch box to 4 computers. Each KVM cable set includes a video cable for PC's VGA connector, and a single USB 2.0 cable for the PC's USB port. From the KVM switch box, you can connect to 2 USB devices: a USB keyboard and a USB mouse. 2 sets of KVM cables are provided for ready connection to 2 computers, the remaining KVM cables are optional.

Easy control
You can switch quickly between the individual client computers by pushing a button on the DKVM-4U or by pressing the hot keys on your keyboard. The KVM switch confirms the switchover with an acoustic signal, and has LEDs indicating which PC is currently being served by the console. All connected PCs are automatically scanned every 10 seconds, so your monitor, keyboard and mouse are updated whenever you switch to a selected PC. CAPS LOCK, NUM LOCK and SCROLL LOCK key's status for each computer is automatically recalled. The DKVM-4U guarantees that the client PC does not crash when it is disconnected from KVM switch box.

High monitor resolution support
The DKVM-4U is capable of supporting the most demanding resolutions (VGA, SVGA and Multisync monitors) of up to 2048 x 1536 at 75Hz refresh rate (bandwidth up to 400MHz) without any noticeable degradation in image quality.

מאפיינים כללים

Connectivity
• 4 x DB-15 video "Daddy" (to the monitor port on your computer)
• 4 x USB 2.0 Type A (to the USB port)

Console connectors
• Video connector DB-15 "mother" (to the monitor console)
• Connector USB "mother" (to the USB-keyboard console)
• Connector USB "mother" (to the USB-mouse console)

Computer selection
• (Manually switching between 4 PCs)
• pressing the button
• Pressing a "hot" keys
• Confirmation of the switch: alarm sound

Menu shortcuts
• Scroll Lock + Scroll Lock + 1: switching on a computer
• Scroll Lock + Scroll Lock + 2: switch to computer 2
• Scroll Lock + Scroll Lock + 3: Switch on the computer 3
• Scroll Lock + Scroll Lock + 4: Switch on the computer 4
• Scroll Lock + Scroll Lock + ->: Switching to the next computer
• Scroll Lock + Scroll Lock + <-: Switch to the previous computer
• Scroll Lock + Scroll Lock + B: Disable connection / signal
• Scroll Lock + Scroll Lock + M: «reset» Keyboard and Mouse
• Scroll Lock + Scroll Lock + S: Auto-Scan mode every 10 seconds

Indicators
• 4 LEDs for port 4 connected computers

תקנים

הורדות

איורים

DKVM-4U/Ax

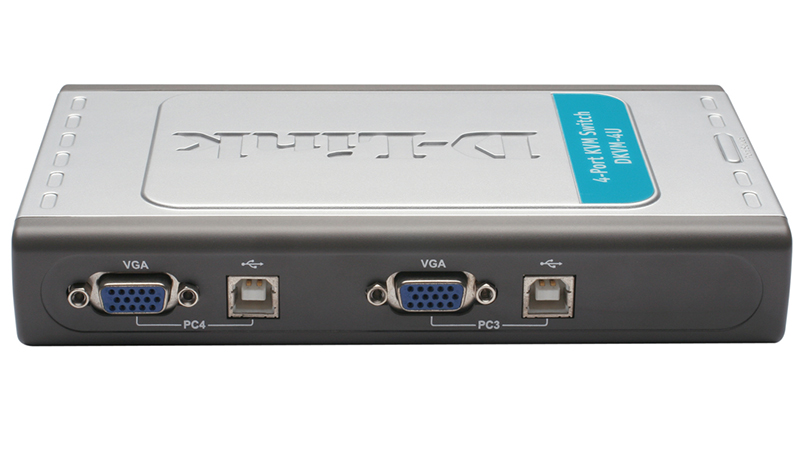

מראה מאחורה

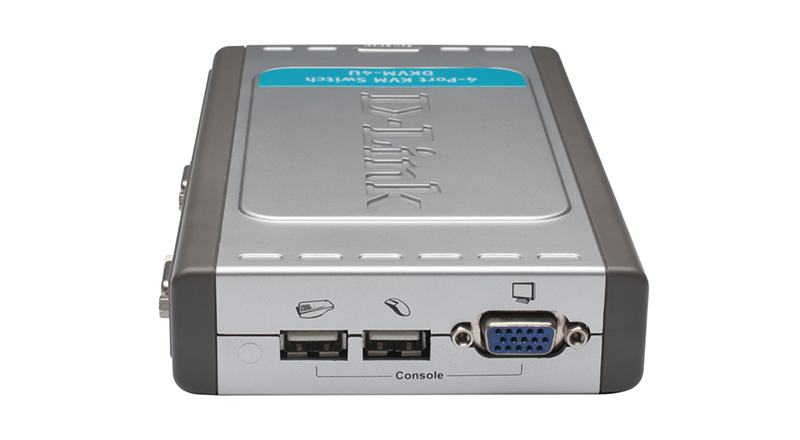

מראה משמאל

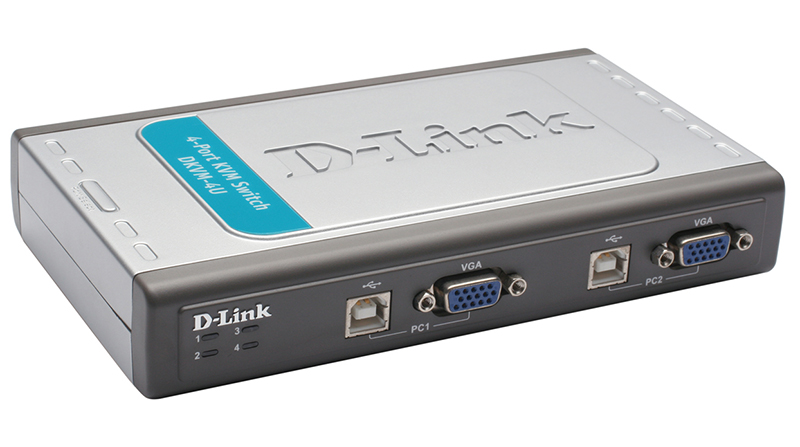

מראה מימין

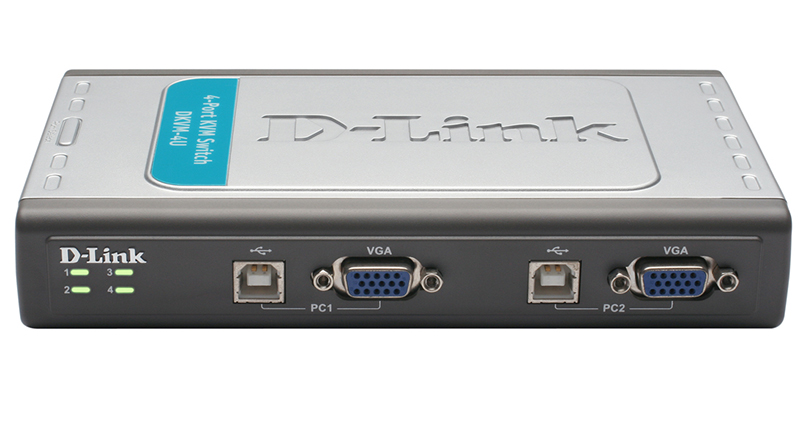

מראה מקדימה
