ANT70-1400N

אנטנה כיוונית רבת עוצמה בעיצוב פאנל עם תמיכה בשני תדרים Outdoor
היכן לקנות

תאור

Directional Dual Band passive antenna D-Link ANT70-1400N Triple polarization can increase the range of your wireless network LAN, operating in the 2.4 GHz or 5 GHz , and provides a high-speed connection to connect to the devices standard 11n. The antenna is equipped with three connectors for transmitting three spatial streams .

Point-to- Point
Antenna ANT70-1400N is ideal for operation in such modes as a point -to-point (WDS), and other modes which require a directional antenna with a high gain. Antenna ANT70-1400N provides the extension of the local network by combining the two networks LAN, separated physically. Alternatively customers WISP (Wireless Internet Service Provider) can also be used for this antenna installation secure connection between the host and external access point provider.

Weather resistance
Antenna ANT70-1400N is made in a rugged waterproof case that provides protection against environmental influences . Moreover, the case is made of a material resistant to corrosion, can withstand severe weather conditions and wind speeds up to 216km / h , providing reliable performance throughout the life cycle. Module lightning protection ANT70-SP can be purchased separately for the protection of the receiver antenna from electrical voltage which could cause damage to other elements of external influences such as lightning.

Installation flexibility
To apply the update package includes the antenna mounting kit , which provides for the installation of the antenna mast to provide improved wireless coverage . The package also included adapter cable with connectors N-type and RP-SMA for easy connections to the host.

Radiation pattern in the horizontal plane

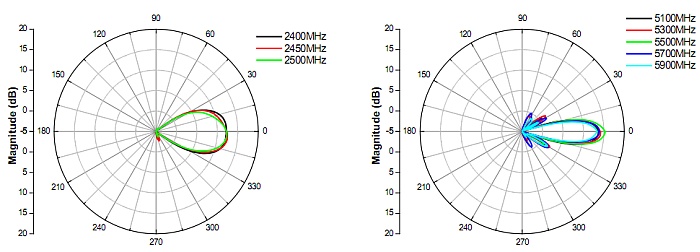

Port 1 (H-Plane)

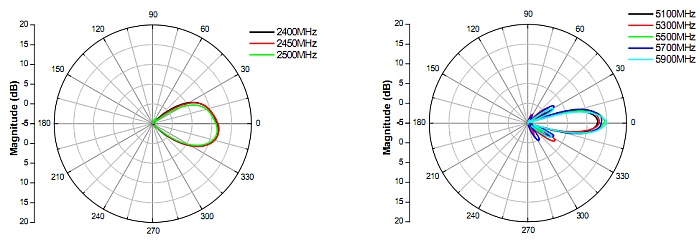

Port 2 (H-Plane)

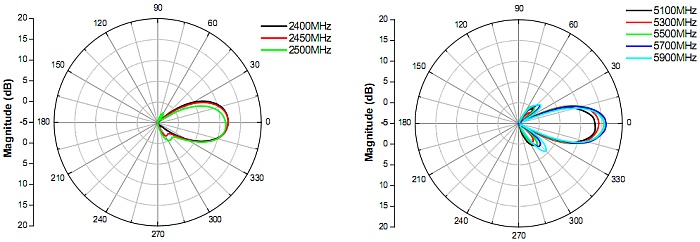

Port 3 (H-Plane)

Radiation pattern in the vertical plane

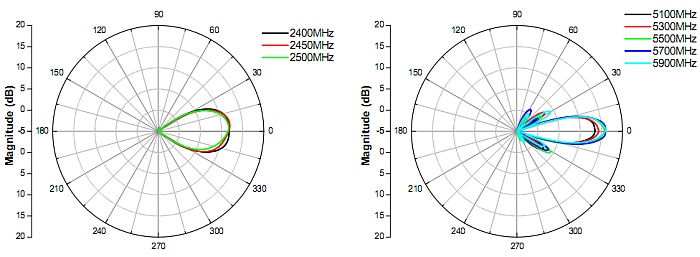

Port 1 (V-Plane)

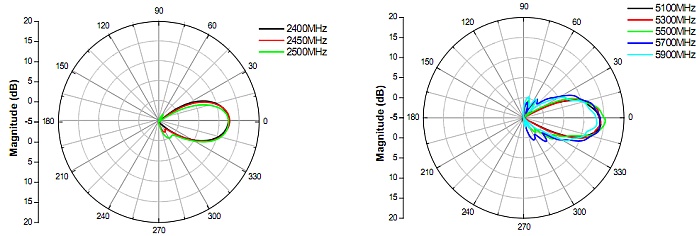

Port 2 (V-Plane)

Port 3 (V-Plane)

מאפיינים כללים

Electrical properties
Frequency band
• From 2400 MHz to 2500 MHz
• From 5150 MHz to 5875 MHz

Gain
• 11dBi (2.4 GHz)
• 12-14dBi (5GHz frequency band)

VSWR
• 2.0: 1 maximum (2.4 GHz)
• 2.0: 1 maximum (5 GHz frequency band)

Polarization
• Linear
• Vertical

Radiation pattern in the horizontal plane (HPBW / H-PLANE)
• 40 ° - 44 ° (2.4 GHz)
• 19 ° - 22 ° (range of frequencies 5.1 GHz)

Radiation pattern in the vertical plane (HPBW / V-PLANE)
• 38 ° - 41 ° (2.4 GHz)
• 25 ° - 31 ° (frequency range 5.1 GHz)

Ratio of foreground and background signal levels (PZO)
• -20dB (max)

Angle of inclination
• 0 °

Permissible power delivered to the antenna input
• 2.4 GHz 10 W (cw)
• 5GHz: 6 W (cw)

Resistance
• 50 ohms

Jack
• N-type (x 3)

Adapter cable
• 50 cm RP-SMA connectors and the N-type

Mount type
• Mast and on the wall


נתונים פיזיים

Wind load
• 216 km / h

Operating temperature
• From -40 ° C to 80 ° C.

Operating humidity
• 95% at 55 ° C.

Housing color
• White

Casing material
• ABS, with UV-protection

Weight
• 1.72 kg

Measurements
• 360 x 360 x 40 mm

תקנים

הורדות

איורים

ANT70-1400N

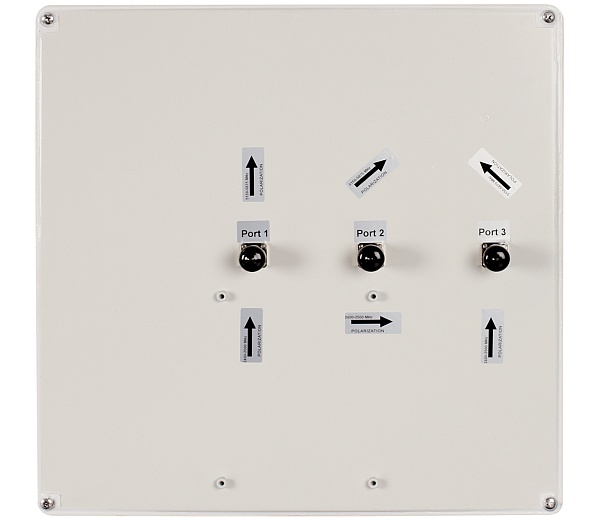

מראה מאחורה

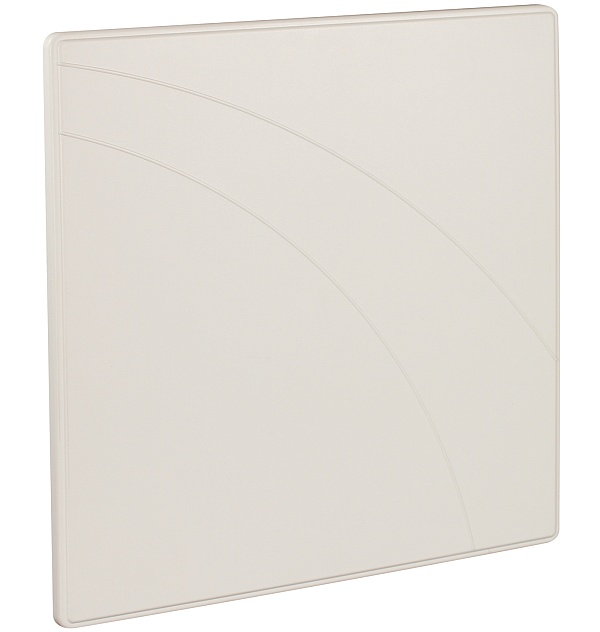

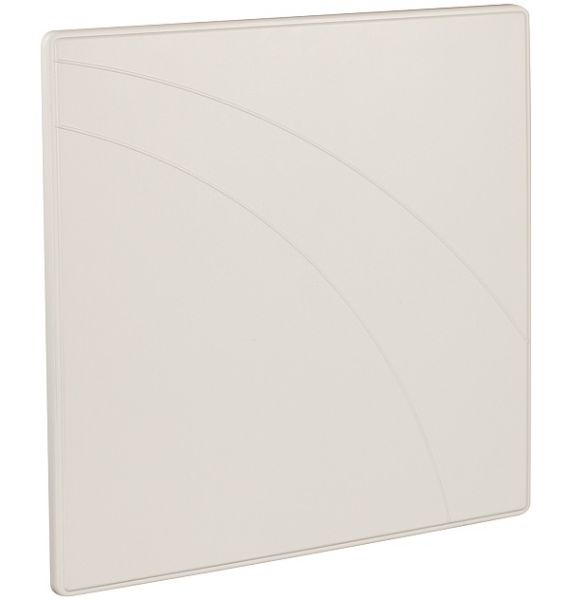

מראה מקדימה
