DAP-2310

נקודת גישה אלחוטית AirPremier N™ בתדר 2.4GHz בעל תקן 802.11n עד 300Mbps
היכן לקנות

תאור

The DAP-2310 AiPremier N Access Point is an 802.11n access point ideal for any network administrator to create or expand the capacity of a wireless network. This access point is mainly used in high traffic areas such as airports, coffee shops, shopping centers, sporting venues, and university campus deployments. With transfer rates of up to 300 Mbps in the 2.4 GHz frequency range, users are able to connect with legacy 802.11b/g adapters in addition to the latest 802.11n adapters to enjoy faster downloads and instant communication.

Versatile Access Point
The DAP-2310 allows network administrators to deploy a highly manageable and extremely robust 802.11n wireless network. The included antennas are detachable and provide optimal wireless coverage in the 2.4 GHz (802.11g and 802.11n) band using a high power radio design to reduce dead spots and increase capacity. For advanced installations, this high-speed access point has integrated 802.3af Power over Ethernet (PoE)3, making installation easy in areas where power outlets are not readily
available.

Enhanced Performance
The DAP-2310 delivers reliable wireless performance with maximum wireless signal rates of up to 300 Mbps in the 2.4 GHz wireless band. This coupled with support for Wi-Fi Multimedia (WMM™) Quality of Service features, makes it an ideal access point for audio, video, and voice applications. Additionally, the DAP-2310 supports load balancing features to ensure maximum performance by limiting the maximum number of users per Access Point.

Security
To help maintain a secure wireless network, the DAP-2310 provides the latest in wireless security technologies by supporting both Personal and Enterprise versions of WPA and WPA2 (802.11i) with support for a RADIUS server backend. To further protect your wireless network, MAC Address Filtering, Wireless LAN segmentation, Disable SSID Broadcast, Rogue AP Detection, and Wireless Broadcast Scheduling are also included. The DAP-2310 includes support for up to eight VLANs for implementing multiple SSIDs to further help segment users on the network. It also includes a wireless client isolation mechanism, which limits direct clientto-client communication.

Multiple Operation Modes
To maximize total return on investment, the DAP-2310 can be configured to optimize network performance based on any one of its multiple operation modes: Access Point, Wireless Client, Wireless Distribution System (WDS), and WDS with Access Point. With WDS support, network administrators can set up multiple DAP-2310 access points throughout a facility and configure them to bridge with one another while providing network access to individual clients. Also included are advanced features such as Load Balancing, which optimizes high network traffic volume, and redundancy for fail-safe wireless connectivity. Additionally, the DAP-2310 offers Spanning Tree Protocol support for greater efficiency and to protect against broadcast storms when used in WDS mode.

Network Management
Network administrators have multiple options for managing the DAP-2310, including a Web interface (HTTP), Secure Sockets Layer (SSL, which provides for a secure connection to the Internet), Secure Shell (SSH, which provides for a secure channel betwed en local and remote computers), and Telnet. For advanced network management, administrators can use the D-Link AP Manager II or D-View SNMPv3 management module to configure and manage multiple access points from a single location. In addition to a streamlined management process, the AP Manager II and D-View software provide network administrators with the means to verify and conduct regular maintenance checks remotely, eliminating the need to send personnel out to physically verify proper operation. With 2.4 GHz band functionality, extensive manageability, versatile operation modes, and solid security enhancements, the D-Link
DAP-2310 AirPremier N Access Point provides SMB environments with a business-class solution for deploying a wireless network in the workplace.

מאפיינים כללים

Standards
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.3ab
• IEEE 802.3af *
• IEEE 802.3u
• IEEE 802.3

Management
• Telnet - Secure (SSH) Telnet
• Web-browser
• HTTP - Secure HTTP (HTTPS)
• Support for SNMP
• Module D-View - Private MIB
• AP Manager II
• An array of access points

Security
• WPA ™ - Personal
• WPA2 ™ - Enterprise
• WPA2 ™ - Personal
• WPA2 ™ - Enterprise
• 64/128-bit WEP-encryption
• Disable SSID Broadcast
• Access control based on MAC-address
• Detection of non-registered on the network access points

Support for VLAN / SSID
• 802.1q/Multiple SSID (up to 8)

Quality of Service (QoS)
• 4 priority queues
• WMM Wireless Priority

Frequency bands of wireless networks
• From 2.4 GHz to 2.4835 GHz

Data transfer rate
• IEEE 802.11b: 11, 5.5, 2 and 1 Mbit / s
• IEEE 802.11g: 108, 54, 48, 36, 24, 18, 12, 9 and 6 Mbit / s
• IEEE 802.11n (2.4 GHz): Up to 300 Mbit/s2

Transmitter output power
IEEE 802.11b
• 24 dBm (± 2dB) for 1, 2, 5.5, 11 Mbit / s
IEEE 802.11g
• 24 ± 2 dBm at 6 ~ 24 Mbit / s
• 22 ± 2 dBm at 36 Mbit / s
• 21 ± 2 dBm at 48 Mbit / s
• 20 ± 2dBm at 54 Mbit / s
IEEE 802.11n (2.4 GHz)
HT20
• 22 ± 2dBm at MCS0 ~ 1
• 21 ± 2dBm at MCS2 ~ 3
• 20 ± 2dBm at MCS4
• 19 ± 2dBm at MCS5
• 18 ± 2dBm at MCS6
• 17 ± 2dBm at MCS7
HT40
• 21 ± 2dBm at MCS0 ~ 3
• 20 ± 2dBm at MCS4
• 19 ± 2dBm at MCS5
• 18 ± 2dBm at MCS6
• 17 ± 2dBm at MCS7

Receiver Sensitivity
IEEE 802.11b
• -76dBm at 1 Mb / s
• -76dBm at 2 Mb / s
• -76 dBm at 5.5 Mbit / s
• -76 dBm for 11 Mbit / s
IEEE 802.11g
• -82dBm at 6 Mbit / s
• -81dBm at 9 Mbit / s
• -79dBm @ 12 Mbit / s
• -77dBm at 18Mb / s
• -74dBm @ 24 Mbit / s
• -70dBm at 36 Mbit / s
• -66dBm at 48 Mbit / s
• -65dBm at 54 Mbit / s
IEEE 802.11n (2.4 GHz)
HT20
• -82dBm at MCS0
• -79dBm at MCS1
• -77dBm at MCS2
• -74dBm at MCS3
• -70dBm at MCS4
• -66dBm at MCS5
• -65dBm at MCS6
• -64dBm at MCS7
HT40
• -82dBm at MCS0
• -79dBm at MCS1
• -77dBm at MCS2
• -74dBm at MCS3
• -70dBm at MCS4
• -66dBm at MCS5
• -65dBm at MCS6
• -64dBm at MCS7

Modes of operation
• Access Point (AP)
• WDS with AP
• WDS / Bridge (No AP Broadcast)
• Wireless client

Gain of the dipole antenna
• 2 GHz dBi@2.4

Maximum transmitter power
• FCC: 25 dBm / ETSI: 17dBm (Dual Chain)

Indicators
• Power
• LAN
• 2.4 GHz


נתונים פיזיים

Maximum power consumption
• 9-watt PoE *
• 8 W without PoE

Operating voltage
• 48 VDC + / - 10% for PoE * or 5 / 2 A

Operating temperature
• From 0 to 40 ° C

Storage temperature
• -20 To 65 ° C

Operating humidity
• From 10% to 90% (no condensation)

Relative humidity
5% to 95% (no condensation)

Certificates
• FCC Class B
• CE
• WiFi ®

Weight
• 238 g

Dimensions
• 111 x 28 x 148 mm

1. This device is intended for indoor use. Installation of the device outside the premises can result in a breach of local regulations.
2. Maximum wireless signal rate derived from the specifications of standard 802.11g and 802.11n. Actual data throughput will vary. The conditions under which the network operates, as well as environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. The radius of coverage may be affected by environmental factors.
* Only certain versions of the product support PoE.

תקנים

הורדות

איורים

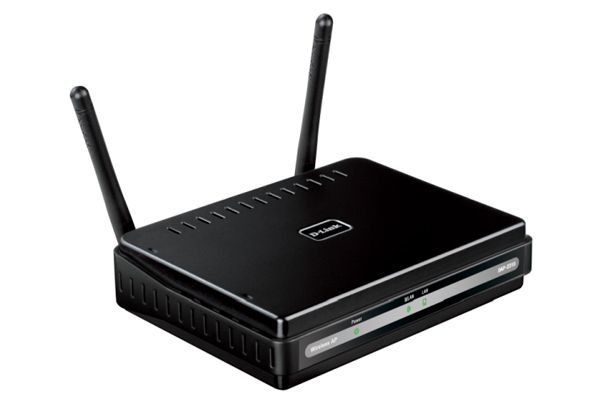

DAP-2310/Ax

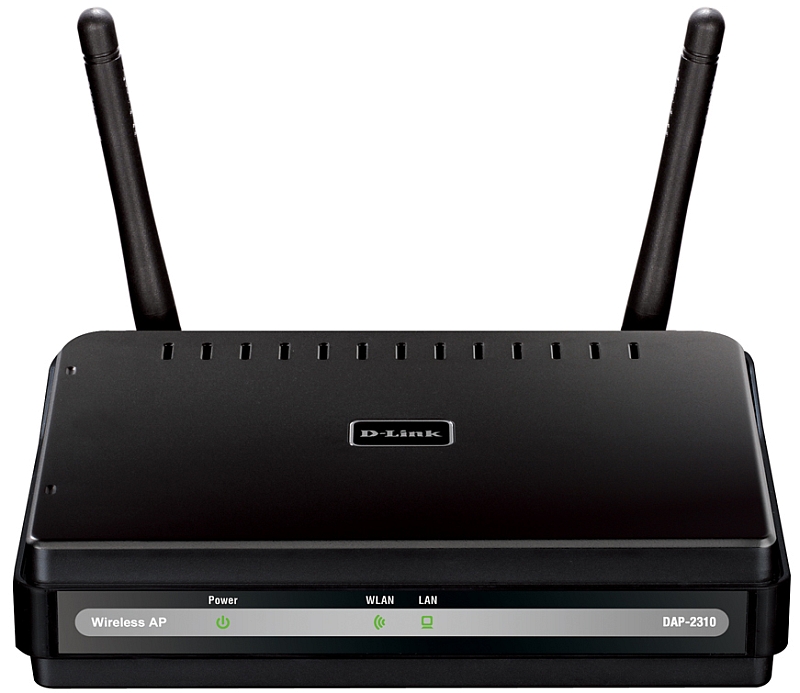

מראה מקדימה

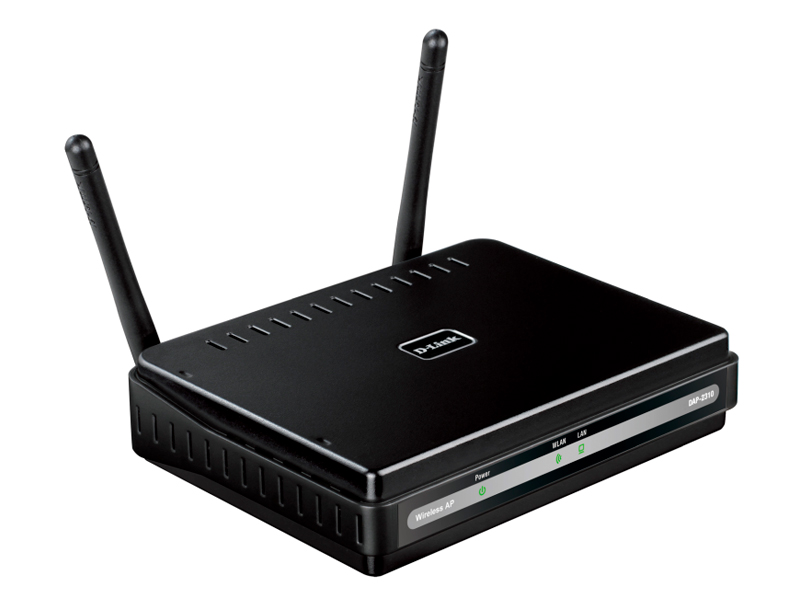

מראה מימין

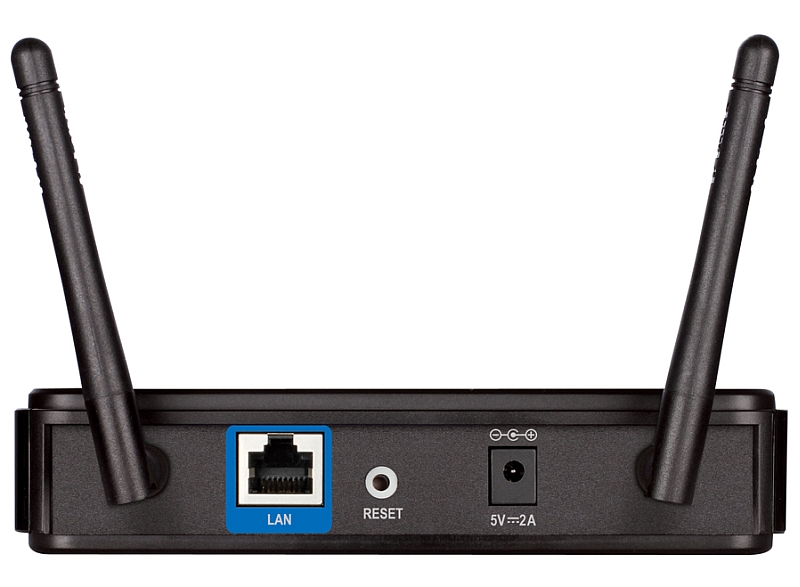

מראה מאחורה
