DIR-645EOL EOS
תאור
Fast and reliable connections to your devices

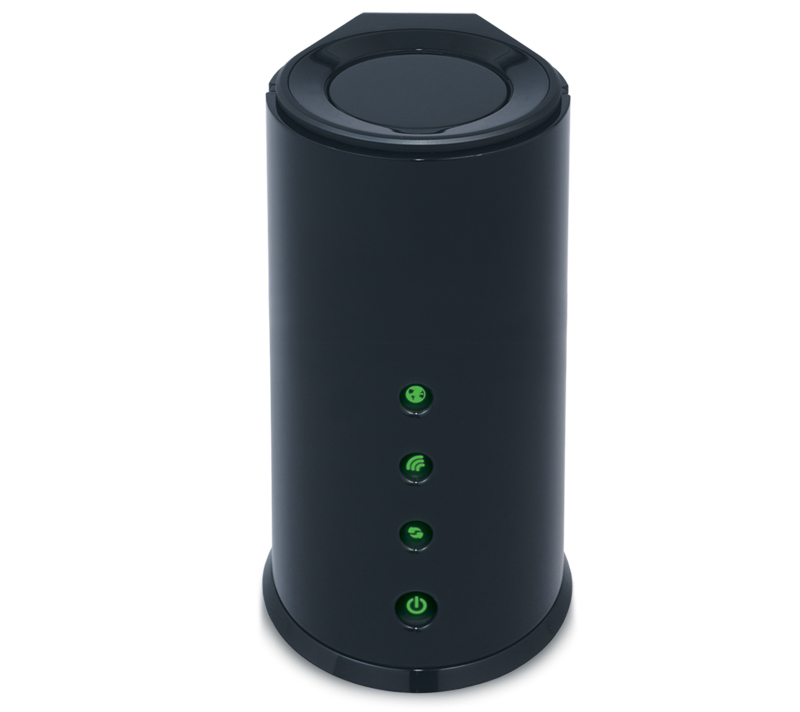

The D-Link Whole Home Router 1000 allows you to create reliable, high-speed connections to your wired and wireless devices. It features 802.11n wireless with D-Link’s unique Smart Beam technology to provide wireless access to the Internet for your entire home or office. It also includes four Gigabit LAN ports with easy to use port-based Quality of Service (QoS); simply plug in your wired devices in order of importance, and the Whole Home Router 1000 will automatically configure QoS for you. This allows you to watch smooth streaming video on your media PC or game console while surfing the web or downloading files on a PC. You can even connect a USB printer or storage drive and share it through D-Link’s SharePort feature.
Smart beam technology
By using D-Link’s unique Smart Antenna design, the Whole Home Router 1000 automatically adjusts its coverage to provide an optimized connection for each authorized wireless client. This extends coverage, minimizes interference, provides higher wireless speeds, and even helps save energy by adjusting the amount of power used for wireless connections. Experience fast, reliable wireless access to the Internet throughout your home or office, even in corners where wireless access was difficult before.
Double the wireless coverage
The Whole Home Router 1000’s multiple antenna design gives you double the wireless coverage when compared to a standard antenna, eliminating dead spots. Connect your devices from farther away than ever before and enjoy a solid connection to your network — inside, outside, and around your house, even across different floors.
Stay safe and secure
Prevent unauthorized access to your network with WPA/WPA2 wireless encryption, which keeps your network traffic secure from prying eyes. You can also set up a Guest Zone to provide limited wireless access on a separate wireless network from your own devices, and wireless scheduling allows you to shut down your wireless network when you are away from your home or office.
מאפיינים כללים
Standards
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
Device interfaces
• 802.11n/g/b Wireless LAN
• 4-port LAN 10/100/1000BASE-T Gigabit
• 1-port WAN 10/100/1000BASE-T Gigabit
• 1 USB 2.0
Type of antenna
• Smart indoor antenna technology SmartBeam
Security
• WPA and WPA2 (Wi-Fi Protected Access)
• 64/128-bit WEP-encryption
QoS
• Port-based QoS
Data transfer rate
• IEEE 802.11b: 11, 5.5, 2 and 1 Mbit / s
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbit / s
• IEEE 802.11n for 2.4 GHz, from 6.5 to 300 Mbit / s
Transmitter output power
• IEEE 802.11b:
+20 DBm (+ /-2dB) at 11, 5.5, 2 and 1 Mbit / s at room temperature of 25 º C
• IEEE 802.11g:
+17 DBm (+ /-2dB) at 54, 48, 36, 24 Mbit / s at room temperature of 25 º C
+18 DBm (+ /-2dB) at 18, 12, 9 and 6 Mbit / s at room temperature of 25 º C
• IEEE 802.11n for 2.4 GHz:
HT20
18dBm (+ /-2dB) for MCS0 ~ MCS3 and MCS8 ~ MCS11 at room temperature of 25 º C
17dBm (+ /-2dB) for MCS4 ~ MCS7 and MCS12 ~ MCS15 at room temperature of 25 º C
HT40
17dBm (+ /-2dB) for MCS0 ~ MCS13 and MCS8 ~ MCS11 at room temperature of 25 º C
16dBm (+ /-2dB) for MCS4 ~ MCS7 and MCS12 ~ MCS15 at room temperature of 25 º C
Receiver sensitivity
• IEEE 802.11b:
when PER = 8% for the batch size of 1000 bytes at room temperature
-76 DBm at 11 Mbit / s
-76 DBm at 5.5 Mbit / s
-80 DBm at 2 Mbit / s
-80 DBm at 1 Mb / s
• IEEE 802.11g:
at PER = 10% at room temperature
-65 DBm at 54 Mbit / s
-66 DBm at 48 Mbit / s
-70 DBm at 36 Mbit / s
-74 DBm at 24 Mbit / s
-77 DBm at 18 Mbit / s
-79 DBm at 12 Mbit / s
-81 DBm at 9 Mbit / s
-82 DBm at 6 Mbit / s
• IEEE 802.11n for 2.4 GHz:
at PER = 10% for packet size of 1000 bytes at room temperature of 25 º C
HT20 (MHz)
-82 DBm at MCS0 / 8
-79 DBm at MCS1 / 9
-77 DBm at MCS2/10
-74 DBm at MCS3/11
-70 DBm at MCS4/12
-66 DBm at MCS5/13
-65 DBm at MCS6/14
-64 DBm at MCS7/15
• HT40 (MHz)
-79 DBm at MCS0 / 8
-76 DBm at MCS1 / 9
-74 DBm at MCS2/10
-71 DBm at MCS3/11
-67 DBm at MCS4/12
-63 DBm at MCS5/13
-62 DBm at MCS6/14
-61 DBm at MCS7/15
Device management
• Wizard Wireless Network
• Web-based management interface Internet Explorer v6 or higher, Firefox 2.0 or later or other Java-enabled browser
Supports SharePort ™
• Sharing a multifunction printer or USB-USB-storage device
Indicators
• Internet
• Wireless
• WPS
• Power
