ANT24-2100

Outdoor Directional Antenna, 21 dBi
היכן לקנות

תאור


The ANT24-2100 outdoor directional antenna with 21 dBi gain operates in 2.4 - 2.5 GHz frequency band and has N Plug connector.

The ANT24-2100 antenna connects to a wireless device equipped with detachable external antennas, for example access point or router. Standard detachable antennas usually have lesser gain than the ANT24-2100, therefore using the 21 dBi ANT24-2100 antenna allows you to extend the 2.4 GHz wireless network coverage and improve the quality of signal reception/transmission. High gain allows you to build wireless bridges for long distances. This antenna is designed for outdoor use. Wide range of operating temperatures (-40 to 80 В°C) allows you to use the antenna in harsh environmental conditions. N type connector provides compatibility with the most of outdoor access points, while the optional N Jack & RP-SMA Plug cable allows you to connect the ANT24-2100 to indoor wireless devices.


מאפיינים כללים


Connector
• N Plug

Frequency band
• 2.4 GHz - 2.5 GHz

Gain
• 21 dBi

VSWR
• 1.8 : 1 Max.

Polarization
• Linear, vertical

HPBW / horizontal
• 10В°

HPBW / vertical
• 12В°

Impedance
• 50 Ohms

Power handling
• 100 W

Lightning protection
• DC Ground

Physical Parameters
Dimensions
• 900 x 600 x 45 mm
• Pole diameter: 40-50 mm

Weight
• 3.5 kg

Environmental Conditions
Survival wind speed
• 216 km/hr

Operating temperature
• -40 to 80 В°C

Operating humidity
• 100% @ 25 В°C


נתונים פיזיים

תקנים

הורדות

ANT24-2100  Outdoor Directional Antenna, 21 dBi

איורים

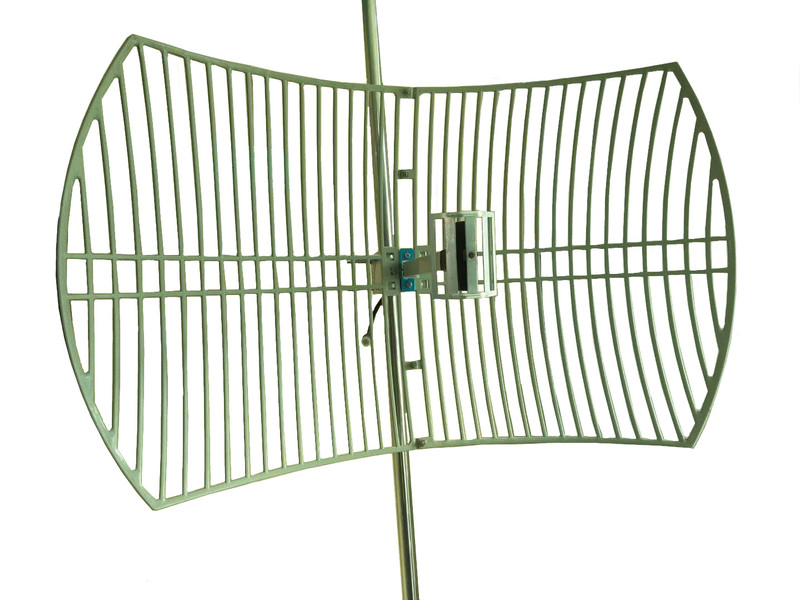

ANT24-2100
