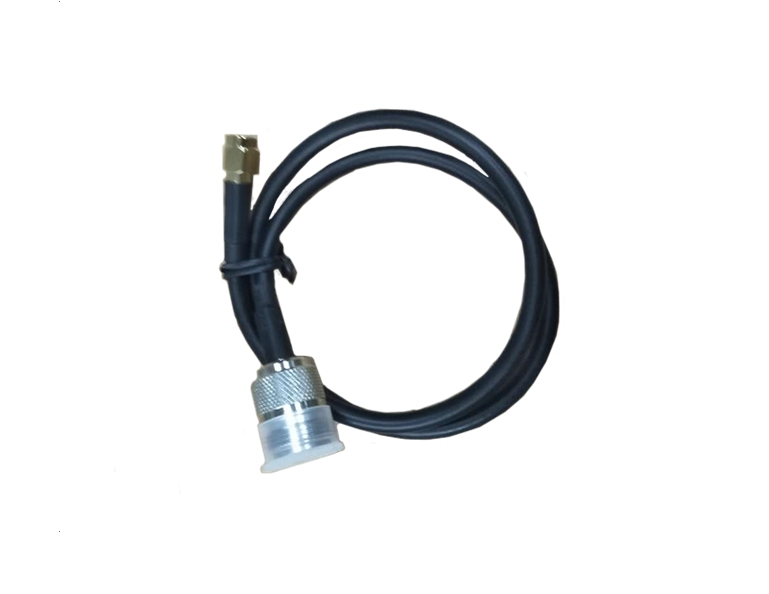

ANT24-CB01N

0.5 m LMR-200 Conversion Cable with N Jack and RP-SMA Plug for Antenna
היכן לקנות

תאור


The ANT24-CB01N LMR-200 low loss conversion cable with N Jack and RP-SMA Plug connectors is designed for connecting external antenna to indoor wireless device. This cable can be used with the antennas operating both in 2.4 GHz and 5 GHz frequency ranges. The nominal impedance of the ANT24-CB01N is 50 Ohms.

A lot of wireless devices, such as access points and routers, are equipped with detachable antennas. To extend the wireless network coverage you can replace them with the antennas that have higher gain. The 0.5 m length ANT24-CB01N cable allows you to connect an external antenna with N Plug connector to an indoor wireless device with RP-SMA Jack connector. This conversion cable is suitable both for outdoor and indoor use. Wide range of operating temperatures (-40 to 85 °C) allows you to use the conversion cable in harsh environmental conditions.


מאפיינים כללים


Cable type
• LMR-200

Connectors
• N Jack & RP-SMA Plug

Operating frequency range
• 2.4 GHz
• 5 GHz

Impedance
• 50 Ohms

Cable jacket
• Black polyethylene

Cable length
• 3 m

Minimum bend radius
• 12.7 mm

Environment
• Outdoor / Indoor

Operating temperature
• -40 to 85 °C

Compatible equipment
Routers
• DIR-640L*
• DIR-806A*
• DSR-250N*
• DSR-500AC*
• DSR-1000N*
• DSR-1000AC*

Wireless access points
• DAP-1360U*
• DAP-2310*
• DAP-2360*
• DAP-2695*
• DAP-3860*
• DWL-8710AP*

Wireless adapters
• DWA-137*
• DWA-525*
• DWA-548*
• DWA-582*

Antennas
• ANT24-0800
• ANT24-0801
• ANT24-2100
• ANT70-0800
• ANT70-1800

Lightning surge protectors
• ANT-SP
• ANT70-SP

* With external antennas only.


נתונים פיזיים

תקנים

הורדות

ANT24-CB01N   0.5 m LMR-200 Conversion Cable with N Jack and RP-SMA Plug for Antenna

איורים

ANT24-CB01N/Ax
מראה מקדימה

דף מידע
