DWL-8620APחדש

Unified AC Wave 2 Wireless Access Point
היכן לקנות

תאור

The D-Link DWL Wave 2 Series Unified AC Wave 2 Wireless Access Points are specially designed for small to medium businesses or enterprises, providing unparalleled bandwidth and flexibility for administrators looking to deploy a medium to large scale Wi-Fi network with manageable dual-band wireless LAN options and utilizing the cutting-edge speed of Wireless AC Wave 2. Not only can it operate in standalone mode, the D-Link Unified AC Wave 2 Wireless Access Points can also be centrally managed by D-Link Unified Wireless Controllers. Highly manageable and capable of blazing speeds, the Unified AC Wave 2 Wireless Access Points integrate seamlessly into any existing network infrastructure and can be easily scaled to meet future demands.

Greater Speed and Connectivity
The DWL Wave 2 Series Unified AC Wave 2 Wireless Access Points leverage the full potential of 802.11ac Wave 2 to provide unparalleled connectivity with ultra-high combined data rates. DWL-8620AP offers combined speed of up to 2,533 Mbps*. In addition, the DWL Wave 2 Series supports Link Aggregation which allows two Gigabit Ethernet ports to be linked together and act as a single port to double the available bandwidth and maximize the overall throughput of the access point.

MU-MIMO Technology
All models in the DWL Wave 2 Series support MU-MIMO (Multi-User Multiple Input Multiple Output), which enables the device to simultaneously communicate with multiple clients using multiple antennas. This allows the access point to utilize the spectrum more efficiently and significantly increase the network capacity. DWL-8620AP supports 4 x 4 MU-MIMO to take full advantage of all streams to serve more wireless clients to dramatically improve wireless performance.

Centrally Managed
When working in conjunction with D-Link Unified Controllers, the Unified AC Wave 2 Wireless Access Points can be centrally managed. This allows for a large number of access points to be deployed and managed easily and efficiently. Once the APs are discovered by the controller, the administrator can push the configuration to them as a group, instead of configuring each access point individually. Additionally, Radio Frequency (RF) resource management allows wireless coverage to be managed centrally, providing the best coverage possible for wireless clients.

Easy to Install
The DWL Wave 2 Series can be ceiling mounted or wall mounted to meet the needs of any wireless application. For additional flexibility, all D-Link Unified AC Wave 2 Wireless Access Points have integrated Power over Ethernet (PoE) support, allowing the devices to be installed in areas where power outlets are not readily available.

Automatic Radio Frequency (RF) Management
When access points are deployed in close proximity to each other, there may be interference between channels if RF management is not implemented. When a D-Link Unified AC Access Point senses a neighbor nearby, it will automatically select a non-interfering channel. This greatly reduces RF interference and will allow the administrator to deploy APs more densely. To further minimize interference, when a nearby AP is on the same channel, the D-Link Unified AC Wave 2 Access Point will automatically lower its transmission power**. When, for whatever reason, the nearby AP is no longer present, the access point will increase its transmission power to expand coverage.

Advanced Wireless Features
The D-Link Unified AC Wave 2 Wireless Access Points support 802.1p Quality of Service (QoS) for enhanced throughput and better performance of time-sensitive traffic like VoIP and streaming DSCP. All D-Link Unified AC Wave 2 Wireless Access Points support Wi-Fi Multimedia (WMM), so in the event of network congestion, time-sensitive traffic can be given priority ahead of other traffic. Furthermore, when a number of access points are in close proximity to each other, an access point will refuse new association requests once its resources are fully utilized, allowing the association request to be picked up by a neighboring unit, distributing the load over multiple APs. Band steering technology enables Unified AC Wave 2 Wireless Access Points to intelligently place clients on the optimal wireless band to avoid congestion and allows for smooth streaming of video, seamless browsing, and fast downloads for mobile devices. Airtime Fairness ensures that equal airtime is given to each client, providing increased performance even if slower devices are connected.


* Maximum wireless signal rate derived from IEEE standard 802.11n and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
** This feature is available when Unified AP is used in conjunction with D-Link’s line of Unified Wireless Controllers.

מאפיינים כללים

Wireless Interface
• IEEE 802.11b/g/n 2.4 GHz wireless
• IEEE 802.11/a/n/ac Wave 2 5 GHz wireless

MIMO
• 4 x 4 MU-MIMO

Data Rate*
• 2.4 GHz - Up to 800 Mbps
• 5 GHz - Up to 1733 Mbps

Antenna
• Internal omnidirectional antennas
• 2.4 GHz: 3 dBi
• 5 GHz: 4 dBi

Operating Frequency
• 2400 to 2483.5 MHz
• 5150 to 5850 MHz

Operating Channels
• 1 to 13 channels for 2.4 GHz band (per country code)
• 36 to 165 channels for 5 GHz band (per country code)

Ethernet Interface
• 2 x 10/100/1000BASE-T LAN port

Console Port
• RJ-45

Advanced Features
• Auto Channel selection
• 802.1p Quality of Service (QoS)
• Wireless Mulimedia (WMM)
• Wireless Distribution System (WDS)
• Band steering
• Airtime Fairness
• Link Aggregation
• IEEE 802.11k Fast Roaming

Operating Mode
• Standalone mode
• Managed mode - Centrally managed by D-Link Wireless Controller

Interfaces
• Web-based User Interface (Web UI)
• Telnet/SSH
• Command Line Interface (CLI)
• SNMP v1/v2c/v3

SSID Security
• Up to 32 SSIDs, 16 per radio
• 802.1Q VLAN
• Station Isolation

Wireless Security
• WPA/WPA2 Personal/ Enterprise
• AES
• TKIP

Detection & Prevention
• Rogue and Valid AP Classification

Authentication
• MAC Address Filtering

Dimensions
• 220 x 47 mm

Weight
• 0.79 kg w/o bracket
• 0.84 kg w bracket

Power Supply
• External power adapter: 12 V DC 2.5 A
• Supports 802.3at PoE PD on LAN 1 Port

Power over Ethernet
• IEEE 802.3at

Maximum Power Consumption
• 24.24 W

Enclosure
• Bottom cover – plastic
• Top cover – plastic
• UL2043-certified chassis

Temperature
• Operating: 0 to 40 °C
• Storage: -20 to 65 °C

Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing

MTBF
• 463,255 hours

Certifications
• CE
• EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60601-1-2 (Medical electrical equipment), EN301489-1, EN301489-17, EN300328, EN301893
• FCC
• IC
• cUL+UL
• CB
• RCM
• NCC
• BSMI
• UL2043

* Maximum wireless signal rate derived from IEEE standard 802.11n and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.

נתונים פיזיים

תקנים

הורדות

DWL-8620AP Unified AC Wave 2 Wireless Access Point

איורים

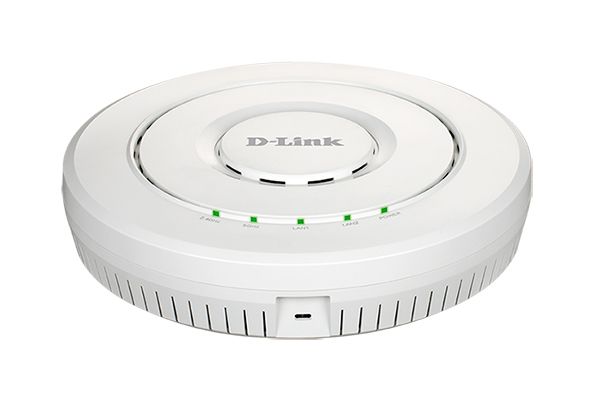

DWL-8620AP

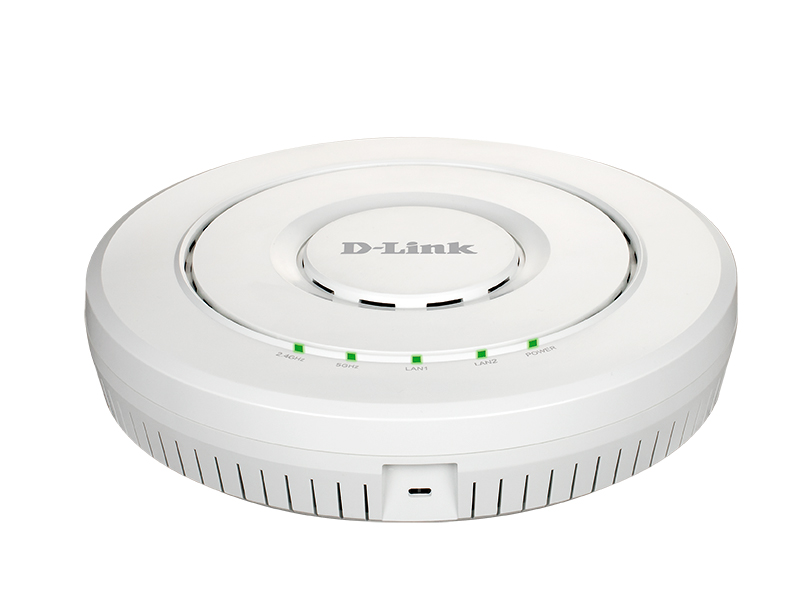

מראה מקדימה

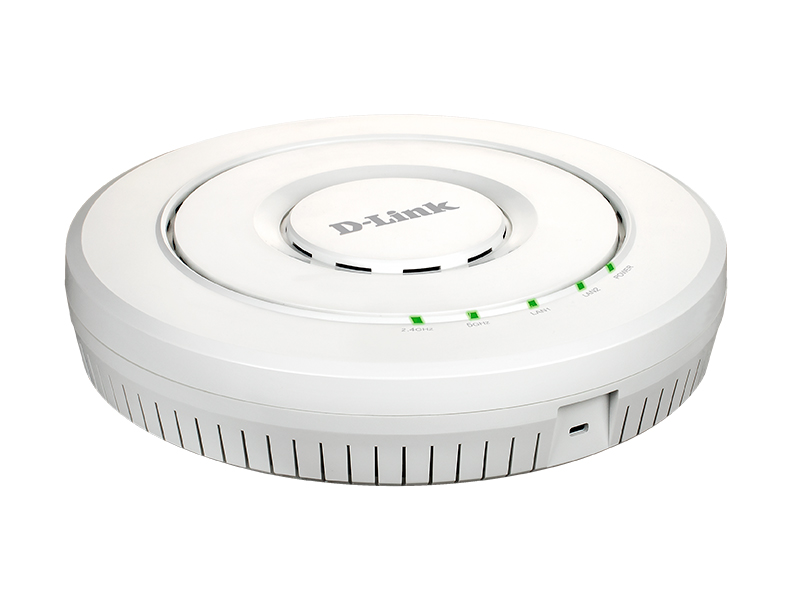

מראה מימין

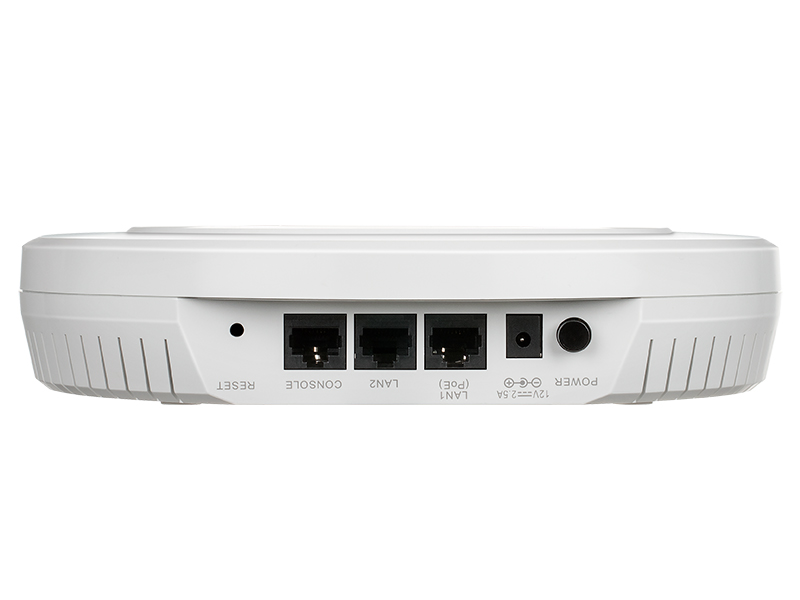

מראה מאחורה
