DGE-528T

כרטיס רשת ג'יגהביט PCI 10/100/1000Mbps - פרופיל רגיל
היכן לקנות

תאור

The D-Link DGE-528T is a high-performance 10/100/1000Mbps copper Gigabit PCI card for desktop PC. Installable in a PC equipped with PCI expansion slots, this card turns a desktop computer into a high-bandwidth Gigabit workstation or a server running at 2000Mbps full-duplex speed.

High-performance Gigabit Speed
Capable of running at full-duplex Gigabit speed, this card gives your PC 2000Mbps data transmission on your existing
Cat. 5 twisted-pair network cable. As an inexpensive alternative solution to fiber-optic, the card allows you to instantly upgrade to Gigabit without requiring you to install new, expensive fiber cables. The card supports 10/100/1000Mbps network speed auto-sensing and full/half duplex auto-negotiation.

VLAN to Improve Performance and Security
The card provides on-board screening of VLANs Tagged Ethernet frames, allowing your PC to be configured with a
VLAN-supported switch. Your PC can be part of a VLAN network, where domains are segmented up to enhance performance and security.

Wake-On-LAN for Power Management
Wake-On-LAN (WOL) is an Advanced Configuration Power Interface (ACPI) function allowing a powered OFF computer
to be powered ON from a remote station. This function allows the administrator to send wake-up signals to a computer. The WOL function provides a great utility for power management of the PC and allows users to initiate action at irregular times and from distant locations.

Flow Control to Minimize Packet Loss The card's embedded flow control and independent FIFO provide a means to protect against possible data loss during
transmission on the network. When connected to a Gigabit switch supporting flow control, the card receives signals
from the switch regarding buffer overrun during peak usage periods. The card then delays transmission until the switch is ready again to accept new data.

Small Form Factor, Lower Power Requirement
Using a single chip solution, this card is very small in size and consumes very little power of your computer system.

מאפיינים כללים

Standards
•  IEEE 802.3 10BASE-T Ethernet
•  IEEE 802.3u 100BASE-TX Fast Ethernet
•  IEEE 802.3ab 1000BASE-T Gigabit Ethernet
•  Auto-negotiation of ANSI / IEEE 802.3 NWay
•  Specifications PCI local bus 2.1, 2.2
•  Universal Bus Support 3.3V, 5V
•  IEEE 802.3x Flow Control
•  IEEE 802.1Q VLAN tags on
•  Supports IEEE 802.1p priority queues

Protocol
•  CSMA / CD

Data transfer rate
•  Ethernet:
•  10Mbit / s (half duplex)
•  20Mbps / s (full duplex)
•  Fast Ethernet:
•  100Mb / s s (half duplex)
•  200Mbps / s (full duplex)
•  Gigabit Ethernet:
•  2000Mbps / s (full duplex)

Network Cables
•  10BASE-T:
•  UTP Cat. 3, 4, 5 (100 m max.)
•  EIA/TIA-586 100-ohm STP (100 meters max.)
•  100BASE-TX, 1000BASE-T:
•  UTP Cat. 5 (100 m max.)
•  EIA/TIA-568 100 - ohm STP (100 meters max.)

Flow Control
•  IEEE 802.3x flow control for full duplex
•  Back pressure for half duplex

Full / half duplex
•  Only full-duplex (1000Mbps / s)
•  Full / half duplex (10/100Mbps)

Indicators
•  1000/100/10Mbit/s
•  Full duplex

Installing the system
•  IRQ
•  Allocated by system

I/O address
•  Allocated by system


נתונים פיזיים

Operating temperature
• From 0 to 40 C

Storage temperature
• From -25 to 55 C

Operating humidity
• 5% - 90% non-condensing

Relative humidity
• 5% - 90% non-condensing

Electromagnetic radiation
• FCC Class B
• CE Class B
• VCCI Class B

Support network operating system
• Microsoft Windows 98, NT 4.0, ME, 2000, XP, XP 64 Edition, Server 2003
• Novell NetWare Server 5.x, 6.x
• Novell Client for DOS
• Linux kernel 2.2.x, 2.4.x, 2.6.x
• Macintosh OS 10.2, 10.3, 10.4.X
• DOS ODI Client
• NDIS driver for DOS
• Free BSD 4.x, 5.0

תקנים

הורדות

איורים

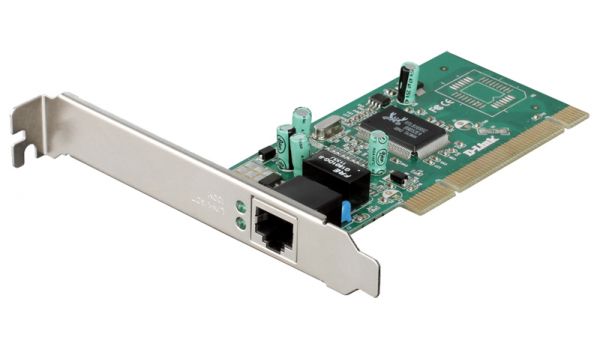

DGE-528T
