DEM-CB300S

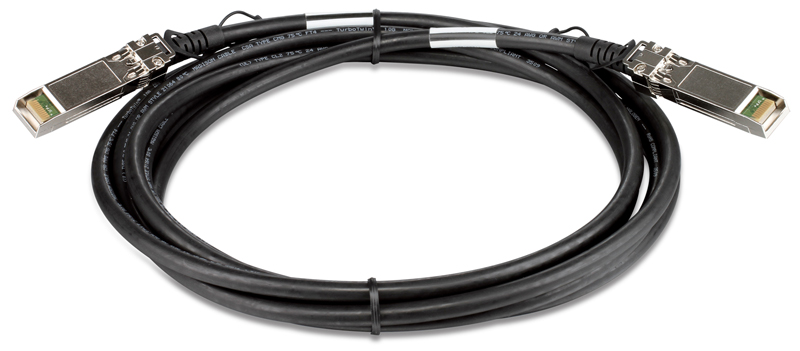

10G Passive SFP+ Twinaxial Direct Attach Cable, 3m
Description
DEM CB300S is designed to support connections1 for 10 Gbps Gigabit Ethernet switches. The 10G Passive SFP+ Twinaxial Direct Attach Cable is equipped with SFP+ connectors, and is suitable for the distances up to 3 meters.
Ideal for High-Bandwidth Operations
The D-Link 10G Passive SFP+ Twinaxial Direct Attach Cable supports speeds of up to 10Gbps, while having lower latency and power consumption than other cables types such as 10GBASE-CX4 and CAT6/CAT6A 10GBASE-T. This makes it an optimal solution for handling high bandwidth transmission within short distances such as inside energy-efficient data centers.
11 It is recommended that you only use the 10G Passive SFP+ Twinaxial Direct Attach Cable with D-Link products.
General features
|
Hardware Version
|
B1
|
D1
|
|
General
|
||
|
Device Rate
|
10 Gbps Gigabit Ethernet
|
|
|
Connector Type
|
SFP+ Cable Assembly
|
|
|
Wire AWG
|
30 AWG
|
|
|
VMA Loss to Crosstalk Ratio (VCR)
|
Min.: 32.5 dB
|
|
|
Physical
|
||
|
Minimum Cable Bend Radius
|
23.5 mm (0.93 inches)
|
39 mm (1.54 inches)
|
|
Cable Characteristic Impedance
|
100 Ohms
|
|
|
Maximum Nominal Voltage
|
30 V AC
|
30 V DC
|
|
Operating Voltage
|
3.3 V DC
|
|
|
Current
|
0.5 А
|
|
|
Operating Temperature
|
-40 to 85 °C (-40 to 185 °F)
|
0 to 70 °(32 to 158 °F)
|
|
Storage Temperature
|
-40 to 85 °C (-40 to 185 °F)
|
-40 to 85 °C (-40 to 185 °F)
|
|
Operating Humidity
|
45% to 75%
|
35% to 65%
|
|
Storage Humidity
|
45% to 75%
|
35% to 65%
|
|
Certifications
|
||
|
|
SFP MSA (Multi-Source Agreement)
SFF-8431
EIA 364
UL 94
|
SFP MSA (Multi-Source Agreement)
SFF-8432
EIA-364
UL 94
EIA-364-1000.01
RoHS
|
Certificates
Order info
DEM-CB300S/D1 10G Passive SFP+ Twinaxial Direct Attach Cable, 3m
