DGS-1210-52מיועד לפרויקטים

מתג מנוהל WEB עם 48 פורטים במהירות ג'יגהביט, ארבע יציאות ג'יגהביט/אופטי (SFP)

תאור

DGS-1210-28 / 28P / 52/20 - Web Smart Switch is a next-generation technology to support D-Link Green. These switches support advanced management and security, providing high performance and scaling network. Control functions include SNMP, the management Web-based interface, the utility D-Link Network Assistant and Compact Command Lines. Switch DGS-1210-28 / 28P / 52/20 supports Auto Voice VLAN, ensuring higher priority for the "voice" traffic. Model DGS-1210-20 / 28 is equipped with a passive cooling system, which ensures quiet operation and allows you to extend the life of the device. Model DGS-1210-28P and DGS-1210-52, in turn, are equipped with intelligent silent fans that are capable of adjusting the rotational speed depending on the temperature, thus saving energy and reducing costs without affecting performance.

Energy savings
Using the technology of D-Link Green, Switches DGS-1210-28 / 28P / 52/20 are able to save energy without sacrificing performance and functionality of the devices. The switch determines the connection status of each port and automatically turns inactive ports in sleep mode. Due to the chipset used switches DGS-1210-28 / 28P / 52 can significantly reduce energy costs.

Easy operation and function of the level 2
These switches support a full set of Layer 2 features, including IGMP Snooping, Port Mirroring, Spanning Tree and Link Aggregation Control Protocol (LACP). Function IEEE 802.3x Flow Control allows you to directly connect servers to the switch for fast, reliable data transfer. By keeping the rate at each of the ports up to 2000 Mbit / s in full duplex mode, switches provide the performance needed to connect jobs with minimal loss of data. The switches support the diagnostic cable and function Loopback Detection. Loopback Detection is used to determine the loops and automatic shut-off port that detected the loop. Cable Diagnostics is designed to determine the quality of the twisted pair, and the type of cable error.

QoS, bandwidth control
Switches DGS-1210-28 / 28P / 52/20 supports Auto Surveillance VLAN (ASV), and Auto Voice VLAN, and are the ideal solution for the deployment of VoIP and video. Auto Surveillance VLAN - is a new, industry-leading technology built into the switches Smart D-Link. This technology integrates data and video transmission through a single switch Web Smart, reducing thus the cost of facilities and equipment. ASV also ensures high-quality video viewing in real time and management without prejudice to the transfer of conventional data network. The automatic determination of the connected VoIP equipment allows you to put the "voice" traffic to a dedicated VLAN. Because of the highest priority and individual VLAN, this feature provides the quality and security of VoIP-traffic. In addition, DSCP marks Ethernet-packs with the appointment of the network traffic of different services. In addition, bandwidth management feature allows network administrators to reserve bandwidth for a variety of applications that require high bandwidth or highest priority.

Network Security
Function D-Link Safeguard Engine protect the switches against traffic flooding caused by virus. Authentication based on 802.1X port allows you to use an external RADIUS server to authenticate users. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the network by filtering traffic from unauthorized MAC-addresses or IP-addresses. The switches also support the prevention of attacks ARP Spoofing, protecting against attacks on the network Ethernet, which can cause a change in the traffic or delay by sending false ARP-messages. To prevent ARP Spoofing attacks the switch uses the Packet Control ACLs to block packets containing false ARP-message. To increase security, the DHCP Server Screening, prohibiting access by unauthorized DHCP-servers.

Convenient operation
Using the utility SmartConsole1 / D-Link Network Assistant2 allows administrators to remotely manage the network at the port level. Utility D-Link Network Assistant supports automatic detection and display on the D-Link switches series Web Smart, belonging to the same network segment L2. The utility provides access to the switch from anywhere on the network without the need to enter the IP-address or subnet mask, which allows you to setup and basic installation of devices found, including password change and update software. Switches DGS-1210-28 / 28P / 52/20 also support the program D-View 6.0 and simplified command-line interface (CLI) through Telnet. D-View 6.0 is a Network Management System that allows you to control the most important parameters such as performance, reliability, flexibility and security.

מאפיינים כללים

Port Standards & Functions
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX (Fast Ethernet)
• IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
• IEEE 802.3x Flow Control for Full-Duplex Mode
• IEEE 802.3af compliance (DGS-1210-28P only)
• Auto-negotiation

Number of Ports
• DGS-1210-10:
     • 8 10/100/1000BASE-T
     • 2 SFP
• DGS-1210-10P:
     • 8 10/100/1000BASE-T PoE
     • 2 SFP
• DGS-1210-20:
     • 16 10/100/1000BASE-T
     • 4 SFP
• DGS-1210-28:
     • 24 10/100/1000BASE-T
     • 4 SFP
• DGS-1210-28P:
     • 24 10/100/1000BASE-T PoE
     • 4 SFP
• DGS-1210-52:
     • 48 10/100/1000BASE-T
     • 4 SFP
• DGS-1210-52MP:
     • 48 10/100/1000BASE-T PoE
     • 4 SFP

Network Cables
• UTP Cat.5, Cat.5e (100m max)
• EIA/TIA-568 100-ohm STP (100m max)

Full/Half Duplex
• Full/half duplex for 10/100Mbps speeds
• Full duplex for Gigabit speed

Media Interface Exchange
• Auto or configurable MDI/MDI-X

Switching Capacity
• DGS-1210-10:  20 Gbps
• DGS-1210-10P:  40 Gbps
• DGS-1210-20:  40 Gbps
• DGS-1210-28:  56 Gbps
• DGS-1210-28P:  56 Gbps
• DGS-1210-52:  104 Gbps
• DGS-1210-52MP:  104 Gbps

Transmission Method
• Store-and-forward

MAC Address Table
• 16,000 entries per device

MAC Address Update
• Up to 256 static MAC entries
• Enable/disable auto-learning of MAC addresses

Maximum 64 bytes packet forwarding rate
• DGS-1210-10:  14.88 Mpps
• DGS-1210-10P:  14.88 Mpps
• DGS-1210-20:   29.8 Mpps
• DGS-1210-28:  41.7 Mpps
• DGS-1210-28P:  41.7 Mpps
• DGS-1210-52:  77.4 Mpps
• DGS-1210-52MP:  77.4 Mpps

Packet Buffer Memory
• DGS-1210-10:  1.5 MB
• DGS-1210-10P:  1.5 MB
• DGS-1210-20:  1.5 MB
• DGS-1210-28:  1.5 MB
• DGS-1210-28P:  1.5 MB
• DGS-1210-52:  3.0 MB
• DGS-1210-52MP:  3.0 MB

Power over Ethernet - DGS-1210-10P, -28P, -52MP only

PoE Standard
• IEEE 802.3af & IEEE 802.3at

PoE Capable Ports
• DGS-1210-10P:
     • Ports 1 to 8: Up to 30W
• DGS-1210-28P:
     • Ports 1 to 4: Up to 30W
     • Ports 5 to 24: Up to 15.4W
• DGS-1210-52MP:
     • Ports 1 to 8: Up to 30W
     • Ports 9 to 48: Up to 15.4W

PoE Power Budget
• DGS-1210-10P:  Max. 78W
• DGS-1210-28P:  Max. 193W
• DGS-1210-52MP:  Max. 370W

L2 Features
• MAC Address Table
     • 16K entries
• IGMP Snooping
     • IGMP v1/v2 Snooping
     • Supports 256 IGMP groups
     • Supports at least 64 static multicast addresses
     • IGMP per VLAN
     • Supports IGMP Snooping Querier
• Loopback Detection
• 802.3ad Link Aggregation:
     • DGS-1210 28/28P: Maximum of 14 groups/8 ports per group
     • DGS-1210 52/52MP: Maximum of 26 groups/8 ports per group
     • DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group
• LLDP
• LLDP-MED
• Jumbo Frame
     • Up to 9,216 bytes
• Spanning Tree Protocol
     • 802.1D STP
     • 802.1w RSTP
• Flow Control
     • 802.3x Flow Control
     • HOL Blocking Prevention
• Port Mirroring
     • One-to-One
     • Many-to-One
     • Supports Mirroring for Tx/Rx/Both
• Multicast Filtering
     • Forwards all unregistered groups
     • Filters all unregistered groups
• Configurable MDI/MDIX
     • MLD snooping v1/v2 (256 groups)

VLAN
• 802.1Q
• VLAN Group
     • Max. 256 static VLAN groups
• Configurable VID from 1 - 4094
• Asymmetric VLAN
• Auto Voice VLAN
     • Max. 10 user-defined OUI
     • Max. 8 default OUI
• Auto Surveillance VLAN

QoS (Quality of Service)
• 802.1p Quality of Service
• 8 queues per port
• Queue Handling
     • Strict
     • Weighted Round Robin (WRR)
• Bandwidth Control
     • Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps)
• QoS based on:
     • 802.1p Priority Queues
     • DSCP
     • ToS
     • IPv6 Traffic Class
     • TCP/UDP port

L3 Features
• IP Interface
     • Supports 1 interface
• IPv6 Neighbor Discovery (ND)

Access Control List (ACL)
• Max. 50 access list
• Max. 768 rules shared by IPv4, MAC and IPv6
• Each rule can only be associated with a single port
• ACL based on
     • 802.1p priority
     • VLAN
     • MAC address
     • Ether type
     • IP address
     • DSCP
     • Protocol type
     • TCP/UDP port number
     • IPv6 Traffic Class

Security
• Broadcast/Multicast/Unicast Storm Control
• D-Link Safeguard Engine
• DHCP Server Screening
• IP-MAC-Port Binding (Smart Binding)
     • Supports 512 address binding entries
     • ARP Inspection
     • ARP + IP Inspection
     • Supports DHCP Snooping
• 802.1X Port-based Access Control
• ARP Spoofing Prevention
     • Max. 64 entries
• Traffic Segmentation
• SSH v2
• SSL
     • Supports v1/v2/v3
• Port Security
     • Supports up to 64 MAC addresses per port
• Duplicate address detection

AAA
• 802.1X Authentication
     • Supports local/RADIUS database
     • Supports port-based access control
     • Supports EAP, OTP, TLS, TTLS, PEAP
• IPv6 RADIUS Server
• Support MD5 authentication

MIB/RFC Standards
• RFC 783 TFTP
• RFC 951 BootP/DHCP Client
• RFC 1157 SNMP v1, v2, v3
• RFC 1213 MIB II
• RFC 1215 MIB Traps Convention
• RFC 1350 TFTP
• RFC 1493 Bridge MIB
• RFC 1769 SNTP
• RFC 1542 BootP/DHCP Client
• RFC 1901 SNMP v1, v2, v3
• RFC 1907 SNMP v2 MIB
• RFC 1908 SNMP v1, v2, v3
• RFC 2131 BootP/DHCP Client
• RFC 2138 RADIUS Authentication
• RFC 2139 RADIUS Authentication
• RFC 2233 Interface Group MIB
• RFC-2246 SSL
• RFC 2475
• RFC 2570 SNMP v1, v2, v3
• RFC 2575 SNMP v1, v2, v3
• RFC 2598 CoS
• RFC 2618 RADIUS Authentication
• RFC 2819 RMON v1
• RFC 2865 RADIUS Authentication
• RFC 3164 System Log
• RFC 3195 System Log
• RFC 3411-17 SNMP
• D-Link Private MIB
• LLDP MIB
• Zone Defense MIB
• 2233 Interface Group MIB

OAM
• Cable Diagnostics
• Factory Reset

Management
• Web-based GUI
• D-Link Network Assistant Utility
• Compact CLI
• Telnet Server
• TFTP Client
• Configurable MDI/MDIX
• SNMP
     • Supports v1/v2c/v3
• SNMP Trap
• Backup/Upgrade firmware
• Smart Wizard
• Upload/Download Configuration file
• System Log
     • Max. 500 log entries
• BootP/DHCP Client
• SNTP
• ICMP v6
• IPv4/v6 Dual Stack
• DHCP Auto Configuration
• Time Setting
     • SNTP
• RMONv1
• Trusted Host

Green v3.0 Technology
• Power Saving by:
     • Link Status
     • Time-based PoE: PoE ports can be turned on/off by port or system through schedule
     • LED Shutoff
     • System Hibernation
     • Port Shutoff

תקנים

הורדות

איורים

DGS-1210-52/B

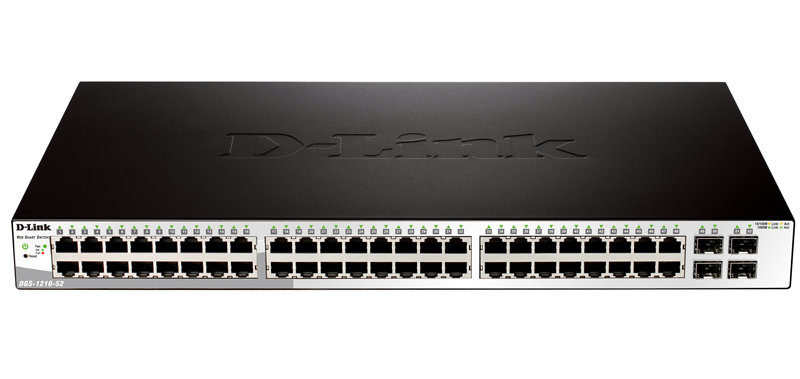

מראה מקדימה

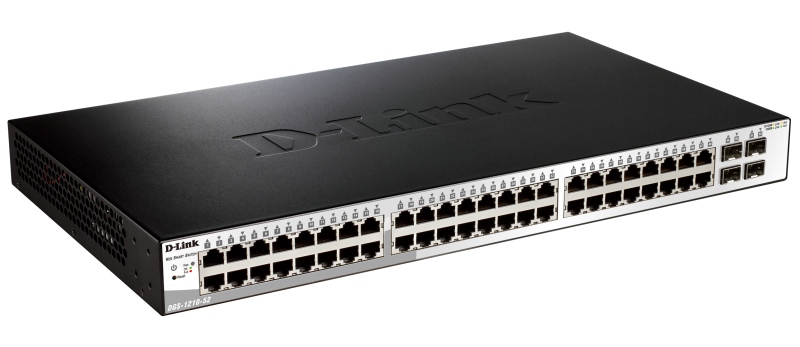

מראה מימין

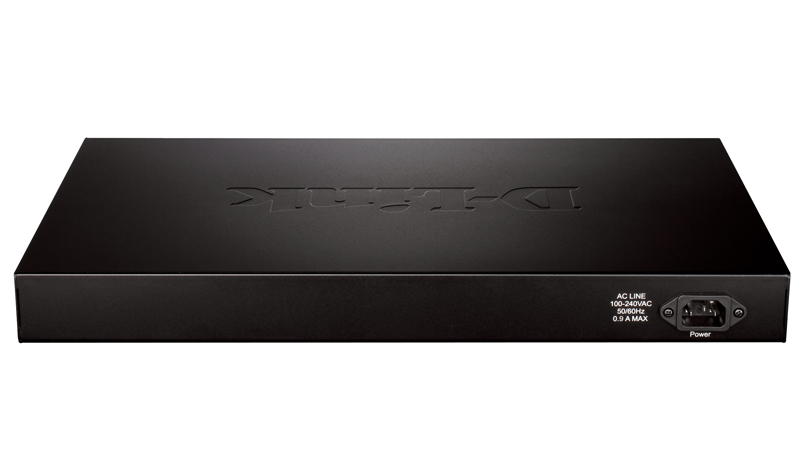

מראה מאחורה
