DXS-PWR300DCמיועד לפרויקטים

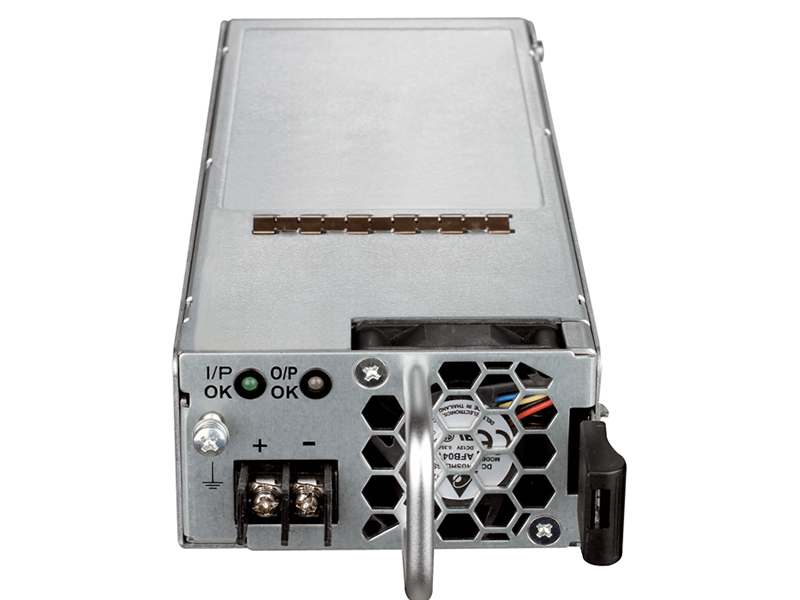

300 W DC Power Supply with a Fan for the DXS-3400 and DXS-3600 Switches
תאור
DXS-PWR300DC is a 300 W DC Power Supply with a fan (front-to-back air flow) for the DXS-3400 and DXS-3600 Switches.
מאפיינים כללים
Output Power
• 300 W
Input Voltage Range
• From -40 to -72 VDC
Max. Input Current
• 9 A @ -40 VDC
Max. Inrush Current
• 50 A
Efficiency
• 87%
Physical Parameters
Dimensions (L x W x H)
• 27.5 х 7.9 х 4 cm
Weight
• 1.01 kg
MTBF
• 134 699 hours
Temperature
• Operating: -5 to 50 °C
• Storage: -40 to 70 °C
Humidity
• Operating: 0 to 95% non-condensing
• Storage: 0 to 95% non-condensing
תקנים
הורדות
DXS-PWR300DC 300 W DC Power Supply with a Fan for the DXS-3400 and DXS-3600 Switches
איורים
DXS-PWR300DC/A
