DGS-1005AEOL

5-Port Gigabit Easy Desktop Switch

תאור

The DGS-1005A 5-Port Gigabit Easy Desktop Switch is part of D-Link’s new series of SOHO devices that make use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. It provides five Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.

Fast and Reliable Networking
The D-Link DGS-1005A 5-Port Gigabit Easy Desktop Switch‘s Gigabit Ethernet ports provide high-speed wired connections for up to five PCs or other devices. The DGS-1005A QoS feature prioritizes network traffic so that time-sensitive data, such as online gaming or digital video streaming is delivered efficiently for the best possible preformance. Even during bursts of high data traffic, the DGS-1005A consistently provides your network with a reliable connection.

Cost-Efficient Solution
The simple and compact design of the DGS-1005A makes this switch an easy addition to any network. D-Link provides a high value for money product, without sacrificing quality. Additionally, the DGS-1005A 5-Port Gigabit Easy Desktop Switch supports 802.3 Energy-Efficient Ethernet that can automatically save power usage based on data activity and transmission distance, saving on your electric bill.

מאפיינים כללים

Interface
• 5 10/100/1000Base-T ports

LEDs
• Power
• Link/Activity (per port)

Port Standards & Functions
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.1p QoS (8 Queues)
• IEEE 802.3x Flow Control
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
• Auto MDI/MDIX adjustment for all ports

Full/Half Duplex
• Full/half duplex for 10/100 Mbps speeds
• Full duplex for Gigabit speed

D-Link Green Features
• Power saving by link status and cable length

Performance
Switching Capacity
• 10 Gbps

Switching method
• Store and forward

MAC Address Table Size
• 2K Entries

MAC Address Learning
• Automatic Update

Maximum 64-byte Max.packet Forwarding Rate
• 7.44 Mbps

Packet Buffer
• 128 KB

Jumbo Frame
• 9,216 bytes

Physical/Environmental
Dimensions (W x D x H)
• 94 x 75 x 22.45 mm

Weight
• 75 g

Power
• 5 V/1 A Power Adapter

MTBF
• 1,479,725 hours

Heat Dissipation
• 9.79 BTU/h

Maximum Power Consumption
• 2.87 W

Standby Power Consumption
• 0.47 W

Ventilation
• Fanless

Operating Temperature
• 0 to 40 °C

Storage Temperature
• -10 to 70 °C

Operating Humidity
• 10% to 90% non-condensing

Storage Humidity
• 5% to 90% non-condensing

Certifications
• CE class B
• FCC class B
• ICES-003 Class B
• VCCI class B
• BSMI
• LVD
• RCM
• Anatel
• KCC

תקנים

הורדות

DGS-1005A/F1  5-Port Gigabit Easy Desktop Switch
DGS-1005A/E1  5-Port Gigabit Easy Desktop Switch

איורים

DGS-1005A/F1
מראה מקדימה
מראה מימין
מראה מימין
מראה משמאל
מראה מאחורה

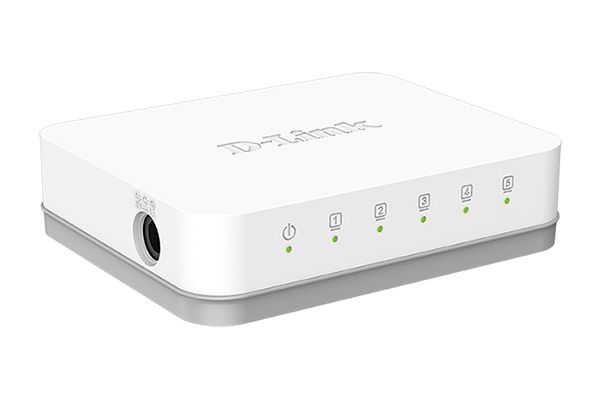

DGS-1005A/E1
מראה מקדימה
מראה מימין
מראה משמאל
מראה מאחורה

דף מידע
