DXS-1210-28S

24-port 10GBase-X SFP+ + 4-port 10GBase-T Smart Managed Switch
היכן לקנות

תאור

The D-Link DXS-1210-28S 10 Gigabit Ethernet Smart Managed Switch is a cost-effective 10 Gigabit switch capable of servicing a range of network needs in any business environment. Supporting a combination of 10GBase-T and SFP ports, this switch provides connection flexibility across a network allowing easier network integration. With high performance and low latency, the DXS-1210-28S fulfills the needs for virtualization, cloud services, and server-to-server applications.

Extensive Management and Layer 2 Features
The DXS-1210-28S comes with a complete lineup of L2 features, including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Network maintenance features include loopback detection and cable diagnostics. Loopback detection significantly speeds up troubleshooting by automatically detecting and shutting down difficult to diagnose switching loops. The cable diagnostic feature, designed primarily for administrators and customer service representatives, determines the cable quality and quickly discovers errors, allowing hassle-free diagnostics and maintenance.

Quality of Service and Bandwidth Control
The DXS-1210-28S supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a new, industry-leading technology that consolidates data and surveillance video transmission through a single DXS-1210-28S switch, sparing businesses the expense of dedicated hardware and facilities. ASV also ensures quality real-time video monitoring and control without compromising the transmission of conventional network data. Auto Voice VLAN technology enhances the VoIP service by automatically placing voice traffic from IP phones to a designated VLAN. With higher priority and an individual VLAN, these features guarantee the quality and security of VoIP traffic. The Differentiated Service Code Point (DSCP) markings on Ethernet packets enable different levels of service to be assigned to network traffic. As a result, these voice and video packets take precedence over other packets. In addition, with bandwidth control, network administrators can reserve bandwidth for important functions that require higher priority or more bandwidth.

Versatile Management
The DXS-1210-28S comes with the D-Link Network Assistant (DNA) utility that simplifies the configuration of devices that support the D-Link Discovery Protocol. The D-Link Network Assistant utility easily allows customers to discover multiple D-Link Smart Switches within the same L2 network segment and displays them on screen for instant access. With this utility, users do not need to change the IP address of their PC. This utility further allows for simultaneous configuration and basic setup of all discovered devices, including password changes and firmware upgrades. The DXS-1210-28S also supports a comprehensive 10 language multi-lingual web UI, a full command line interface (CLI) through Telnet, a console port, as well as D‐View 7; a network management system (NMS) that allows central management of critical network characteristics such as availability, reliability, resilience, and security.

Secure your Network
D-Link’s innovative Safeguard Engine protects the switch against traffic flooding caused by malicious attacks. The DXS-1210-28S supports 802.1X port-based and host-based authentication, allowing the network to be authenticated through external RADIUS servers. The Access Control List (ACL) feature enhances network security and helps to protect the internal IT network. For added security, the DHCP server screening feature filters DHCP replies on unauthorized ports to prevent them from being assigned an IP address.

מאפיינים כללים

Interfaces
• 24 10GBase-X SFP+ ports
• 4 10GBase-T ports
• RJ-45 console port

Port Standard & Functions
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3an 10GBase-T
• IEEE 802.3z 1000Base-X
• IEEE 802.3ae 10GBase-X
• IEEE 802.3az Energy Efficiency Ethernet (EEE)
• Auto MDI/MDIX support for 1000/10GBase-T

Diagnostic LEDs
• Power
• Fan Error
• Console
• Link/Activity/Speed (Per 10GBase-T port and per 10GBase-X SFP+ port)

Network Cables for 10GBase-T
• Cat. 6 (30 m max)
• Cat. 6A or Cat. 7 (100 m max)

Switching Capacity
• 560 Gbps

Maximum Packet Forwarding Rate
• 416.64 Mpps

Transmission Method
• Store-and-forward

MAC Address Table
• Up to 32,000 entries per device

Packet Buffer
• 4 Mbytes

Flash Memory
• 64 Mbytes

Software Features
L2 Features
• MAC Address Table: Up to 32K entries
• Static MAC Addresses: 256
• IGMP Snooping:
  IGMP v1/v2/v3 Snooping
  Supports 512 groups (shared between dynamic and static, with a max of 128 static)
  Per VLAN IGMP Snooping
  Support port-based fast leave
  Report Suppression
• MLD Snooping:
  MLD v1/v2 Snooping
  Supports 256 groups (shared between dynamic and static, with a max of 128 static)
  Support port-based fast leave
• LLDP
• LLDP-MED
• Spanning Tree Protocol:
  802.1D STP
  802.1w RSTP
  802.1s MSTP
• Flow Control:
  802.3x Flow Control
  HOL Blocking Prevention
• Port Mirroring:
  One-to-One
  Many-to-One
  Supports Mirroring for Tx/Rx/Both
• 802.3ad Link Aggregation: Maximum of 8 groups/8 ports per group
• Jumbo Frame: Up to 12,288 Bytes
• Loopback Detection

VLAN
• 802.1Q VLAN
• Port-based VLAN
• Configurable VID: 1~4094
• Voice VLAN
• Auto Surveillance VLAN
• Asymmetric VLAN
• 4K VLAN Groups

Quality of Service (QoS)
• CoS based on:
  Switch port
  802.1p Priority Queues
  Outer 802.1p priority
  DSCP
  ToS
  IPv6 Traffic Class
  TCP/UDP port
  MAC Address
  Ether Type
  IP Address
  Protocol Type
  IPv6 Flow Label/ Traffic Class
• 802.1p Priority Queue
• 8 queues per port
• Queue Handling:
  Strict Priority Que (SPQ)
  Weighted Round Robin (WRR)
• Bandwidth Control:
  Port-based (Ingress/Egress, min. granularity 64 Kbps)
  Queue-based (Egress, min. granularity 64 Kbps)

L3 Features
• IP Interface: Supports 4 IPv4/v6 interfaces
• ARP: 384 Static ARP
• Default Route
• IPv6 Neighbor Discovery (ND)
• Static Route:
  Max. 128 IPv4 entries
  Max. 64 IPv6 entries

Access Control List (ACL)
• ACL based on:
  IPv4 address: Source/destination IP Address mask, IP preference/ ToS mask, DSCP mask, Protocol
  MAC address: 802.1p priority mask, VID mask, Source/destination MAC address mask, Ether type mask
  IPv6 address: Source/destination IP Address mask, DSCP mask, Protocol type mask, TCP/UDP port number mask, IPv6 traffic class mask, IPv6 flow label mask
• Max. 1536 ingress ACL entries
• Max. 1024 egress ACL entries
• Max. 1024 Access List Numbers

Security
• Broadcast/Multicast/Unicast Storm Control
• D-Link Safeguard Engine
• DHCP Server Screening
• IP-MAC-Port Binding:
  DHCP Snooping
  DHCPv6 Guard
  IPv4/v6 Source Guard
  Dynamic ARP Inspection
  IPv6 ND Inspection
  IPv6 Route Advertisement (RA) Guard
  Duplicate Address Detection (DAD)
• Traffic Segmentation
• SSH:
  Support v2
  Support IPv4/IPv6
• SSL:
  Support TLS 1.0/1.1/1.2
  Support IPv4/IPv6
• DoS Attack Prevention
• Port Security: Supports up to 64 MAC addresses per port
• Duplicate Address Detection

Operations, Administration, and Management (OAM)
• Cable Diagnostics

Authentication, Authorization, and Accounting (AAA)
• 802.1X Authentication
  Supports Dynamic VLAN Assignment
  Supports local/RADIUS database
  Supports Port-based access control
  Supports Host-based access control
  Supports EAP, TLS, TTLS, PEAP
• Support IPv4/IPv6 RADIUS Server
• Guest VLAN
• Trusted Host
  Support IPv4/v6 host
  Trusted host for Telnet, HTTP, HTTPS, SSH, Ping

Management
• Web-based GUI
• D-Link Network Assistant Utility
• Full CLI
• Telnet Server
• TFTP Client
• Configurable MDI/MDIX
• SNMP: Supports v1/v2c/v3
• SNMP Trap
• Smart Wizard
• LLDP
• LLDP-MED
• ICMP v4
• DHCP Relay
• DHCP Auto-image
• System Log
• BootP/DHCP Client
• SNTP
• ICMP v6
• IPv4/v6 Dual Stack
• DHCP Auto Configuration
• RMON v1/v2
• Dual Images
• Dual Configurations
• DNS Client

Green V3.0 Technology
• Power Saving by:
  LED Shutoff
  System Hibernation
  Port Shutoff

MIB/RFC Standards
• RFC 783/1350 TFTP Client
• RFC 951/1542/2131 BootP/DHCP Client
• RFC 1213 MIB II
• RFC 1215 MIB Traps Convention
• RFC 3612 Power-Ethernet MIB
• RFC 3418 SNMPv2-MIB
• RFC 2863 Interface Group MIB
• RFC 3635 Ethernet-Like MIB
• RFC 4293 IP-MIB
• RFC 2819 RMON v1
• RFC 4502 RMON2-MIB
• RFC 4188 Bridge MIB
• RFC 4363(6) P-Bridge-MIB
• RFC 4363(7) Q-Bridge-MIB
• RFC 4668 RADIUS Authentication Client MIB
• RFC 4292 IP Forward MIB
• RFC 4836 MAU MIB
• RFC 4133 Entity MIB
• RFC 4560(80) PING-MIB
• RFC 4560(81) Traceroute-MIB
• RFC 3411 SNMP-Framework-MIB
• RFC 3414 SNMP-User-Based-MIB
• RFC 3412 SNMP-MPD-MIB
• RFC 3413(12) SNMP-Target-MIB
• RFC 3413(13) SNMP-Notification-MIB
• RFC 3415 SNMP-View-Based-ACM-MIB
• RFC 3584 SNMP-Community-MIB
• D-Link Private MIBs
• LLDP MIB
• Zone Defense MIB

Physical Parameters
Power Input
• 100 to 240 V AC

Maximum Power Consumption
• 100 V / 60 Hz: 87.7 W
• 240 V / 60 Hz: 85.7 W

Standby Power Consumption
• 100 V / 60 Hz: 27.6 W
• 240 V / 60 Hz: 27.7 W

Acoustic
• Fan at high speed: 52.3 dB(A)
• Fan at low speed: 40.2 dB(A)

Heat Dissipation
• 298.4 BTU/hr (100 V)
• 290.9 BTU/hr (240 V)

MTBF
• 574,720 hours

Fans
• 2 Smart Fans

Weight
• 3.27 kg

Dimensions
• 441 x 209.5 x 44 mm

Temperature
• Operating: -5° to 50°C
• Storage: -20° to 70°C

Humidity
• Operating: 0% to 95% non-condensing
• Storage: 0% to 95% non-condensing

Certifications
• CE Class A
• FCC Class A
• VCCI Class A
• IC
• BSMI

Safety
• UL
• CB
• BSMI

נתונים פיזיים

תקנים

הורדות

DXS-1210-28S  24-port 10GBase-X SFP+ + 4-port 10GBase-T Smart Managed Switch

איורים

DXS-1210-28S/A1

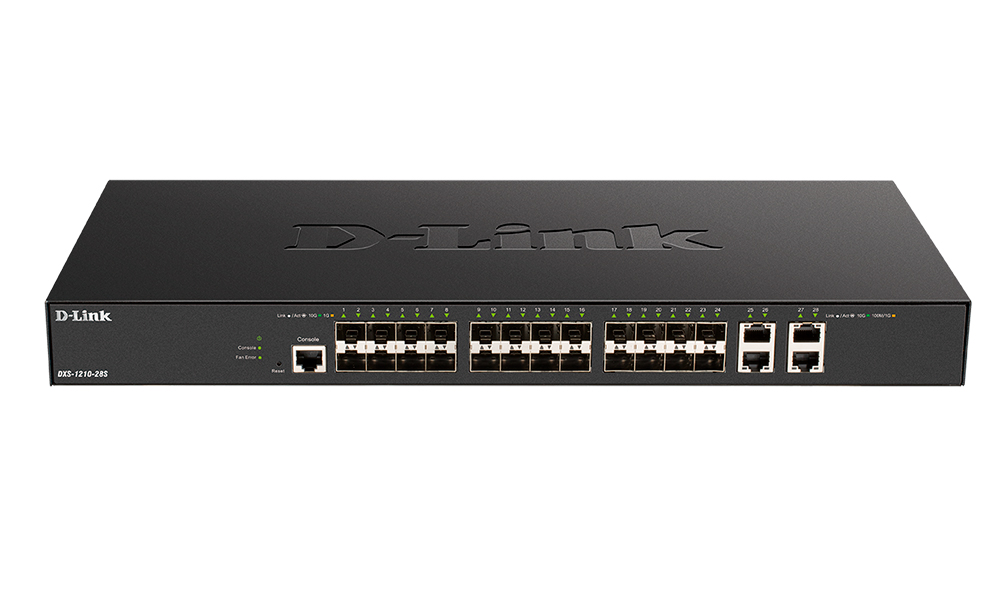

מראה מקדימה

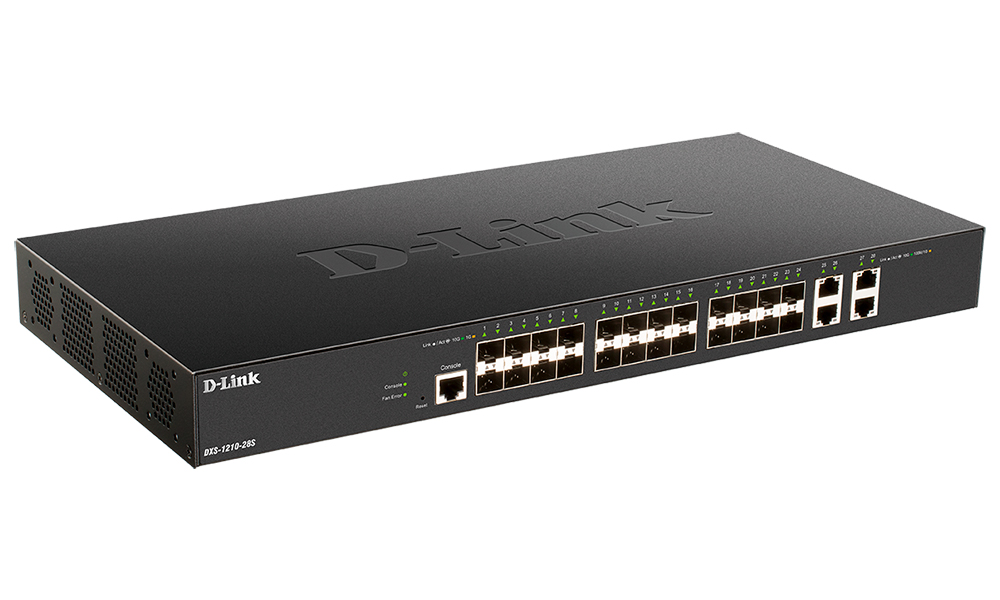

מראה מימין

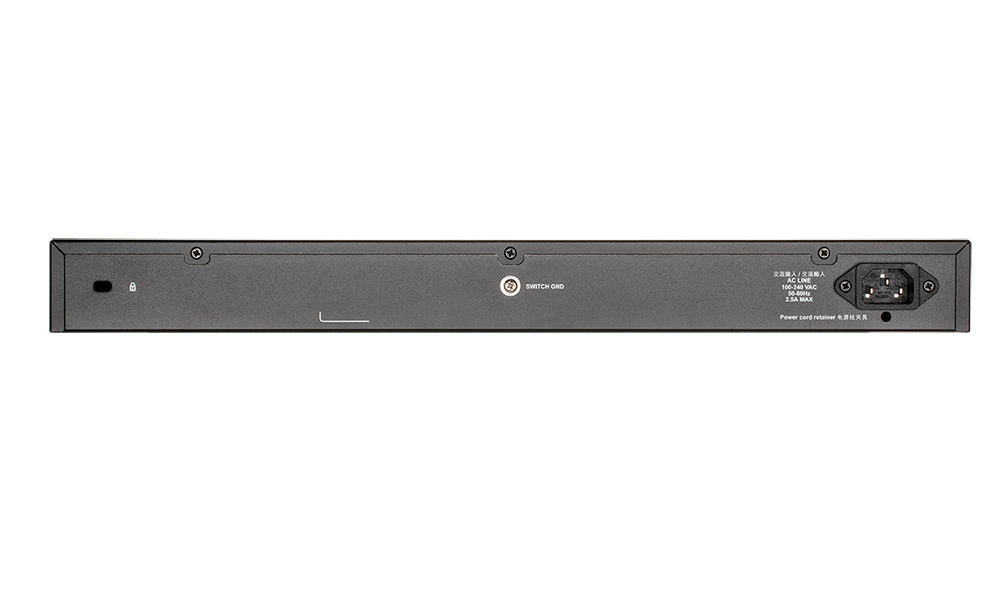

מראה מאחורה
