DES-1009MPחדש

9-Port 10/100 PoE Unmanaged Desktop Switch
היכן לקנות

תאור

The DES-1009MP is an unmanaged 9-port PoE Switch to power your devices such as wireless access points and IP cameras with up to 30 W per port (117 W total PoE budget), and a Gigabit uplink port that allows sufficient bandwidth for uplink connectivity. To streamline network operation, the DES-1009MP is an affordable desktop solution with convenient functionalities such as Auto-negotiation and Store-and-Forwarding which is minimizing data transmission errors. Fanless Design provides enhanced heat dissipation for silent operation.

High Performance
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables. Auto-negotiation on each port intelligently adjusts the port speed for compatibility with the connected device. The Gigabit uplink port provides high data throughput to connect remote networks and can ensure uncongested access to high-bandwidth network devices such as surveillance NVRs. The DES-1009MP supports a wide array of Plug-&-Play features providing fast configuration-free deployment.

Power over Ethernet
8 Fast Ethernet ports are PoE-equipped, conveniently supplying up to 30 W of power per port for connected PoE devices with a maximum PoE budget of 117 W, eliminating the need for access to power outlets.

Reliable Protection on Every Port
The DES-1009MP is shielded from unexpected electrical surges such as from lightning strikes with 6kV surge protection, safeguarding your switch from internal circuit damage.

מאפיינים כללים

Interfaces
• 8 x 10/100 Mbps Ethernet ports
• 1 x 10/100/1000 Mbps Ethernet port

Standards
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3ab Gigabit Ethernet
• IEEE 802.3x Flow Control Support

Media Interface Exchange
Auto MDI/MDIX adjustment for all ports

LEDs
• Link/Activity (per port)
• Power (per device)
• PoE Status (ports 1-8)

Functionality
Max. Packet Forwarding Rate
• 2.68Mpps

Switching Fabric
3.6 Gbps

Transmission Method
• Store-and-forward

MAC Address Table
• 2K entries per device

Flash Memory Size
• 8Kbits

Packet Buffer Size
• 1Mbits

PoE
PoE Standards
• IEEE 802.3af
• IEEE 802.3at

PoE ports
• Ports 1 to 8

PoE Power Budget
• 117 W

Physical/Environmental
Power Input
• 51V 2.5A

Power Consumption
• Maximum Power Consumption: 127W
• Standby Power Consumption: 10W

Heat Dissipation
• 433.34 BTU/h

Acoustics
• 0 dB

Surge Protection
• 6kV

Ventilation System
• Fanless

Temperature
• Operating: 0° to 40°C
• Storage: -10° to 70°C

Humidity
• Operating: 0 to 95% non-condensing
• Storage: 0 to 95% non-condensing

Dimensions
• 177*104*26mm

Weight
• 0.396 kgs

EMI/EMC
• CE

Comply with RoHS 6
• Yes

Safety
• LVD

נתונים פיזיים

תקנים

הורדות

DES-1009MP  9-Port 10/100 PoE Unmanaged Desktop Switch

איורים

DES-1009MP/A

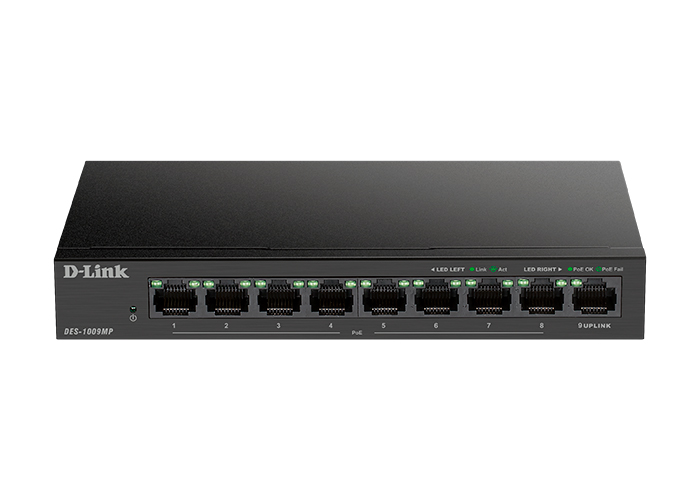

מראה מקדימה

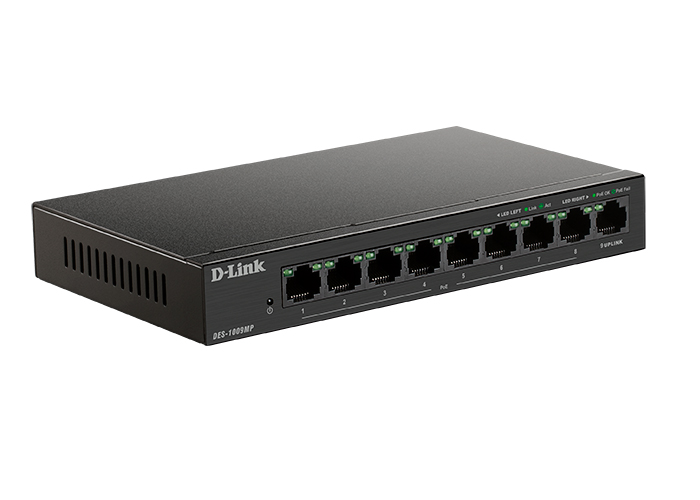

מראה מימין

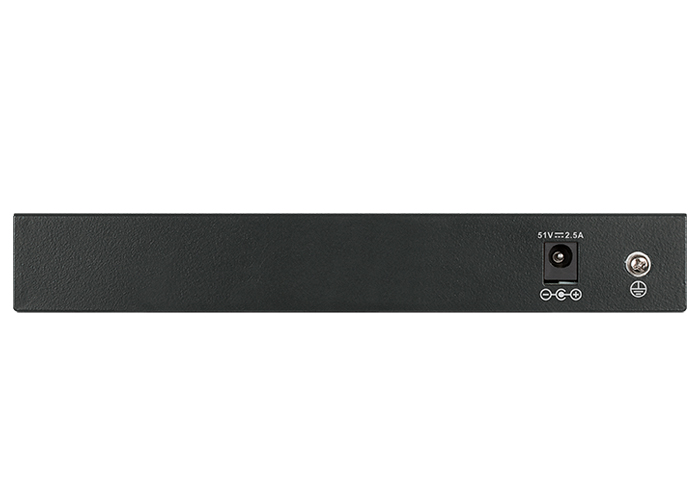

מראה מאחורה
