DEM-211
100Base-FX Multi-Mode SFP transceiver (up to 2 km)
תאור
The DEM-211 SFP fiber transceiver is external transceiver designed for insertion in SFP (Small Form-Factor Pluggable) slot of network device for transmission and reception of data signals on the fiber cables. The transceiver provides IEEE 802.3u compliant link for up to 200 Mbps in full-duplex mode transmission to deliver the speed, reliable long-distance (up to 2 km) data transfer.
The DEM-211 transceiver uses standard duplex LC connector for fiber cable connection. All D-Link transceivers are hot-pluggable. Hot-swap capability allows network administrators to plug or unplug them from the SFP slots without having to turn off the power of the connected device.
מאפיינים כללים
|
General features
|
|
|
Standard
|
• IEEE 802.3u 100Base-FX
|
|
Wavelength
|
• 1310 nm
|
|
Data Rate
|
• 100 Mbps
|
|
Connector
|
• Duplex LC
|
|
Fiber Type
|
• 50/125 um Multi-mode Fiber (up to 2 km)
• 62.5/125 um Multi-mode Fiber (up to 1 km)
|
|
Maximum Fiber Cable Length
|
• 2 km
|
|
Transmit Power Range
|
• -8 to -20 dBm
|
|
Receive Power Range
|
• -3 to -32 dBm
|
|
Sensitivity
|
• -32 dBm
|
|
Supported Features
|
• Hot swap
• MSA compliant
• RoHS compliant
|
|
Physical Parameters
|
|
|
Power Support
|
• 3.3 V
|
|
Supply Current
|
• 300 mA
|
|
Temperature
|
• Operating: 0° to 70°C
• Storage: -40° to 85°C
|
|
Humidity
|
• Operating: 0% to 85%
• Storage: 0% to 85%
|
|
Dimensions
|
• 55.9 mm x 13.7 mm x 8.5 mm
|
|
Certificates
|
• Class 1 laser: EN 60825-1
• FDA 21 CFR 1040.10 и 1040.11
|
תקנים
הורדות
DEM-211/A1 100Base-FX Multi-Mode SFP transceiver (up to 2 km)
איורים

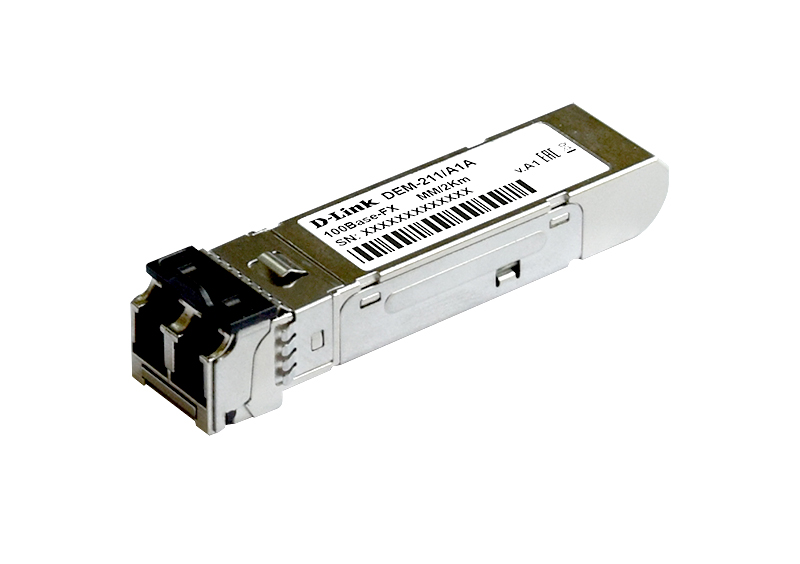

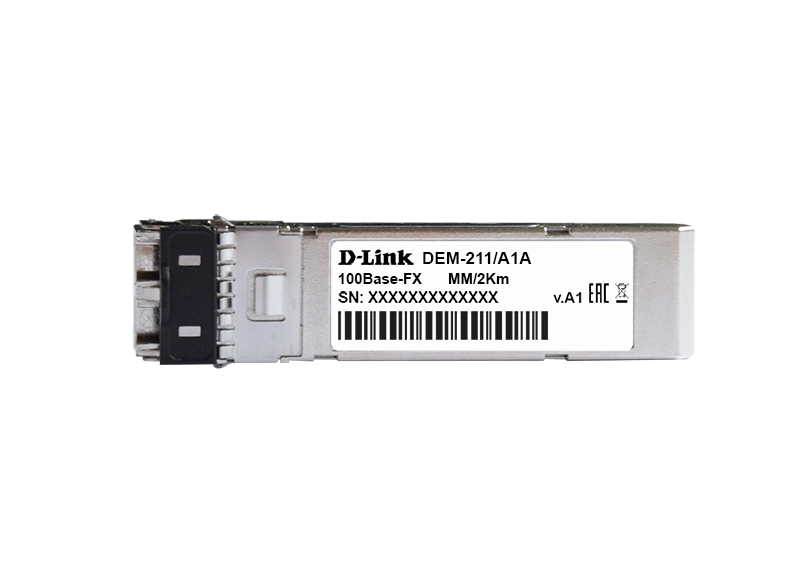

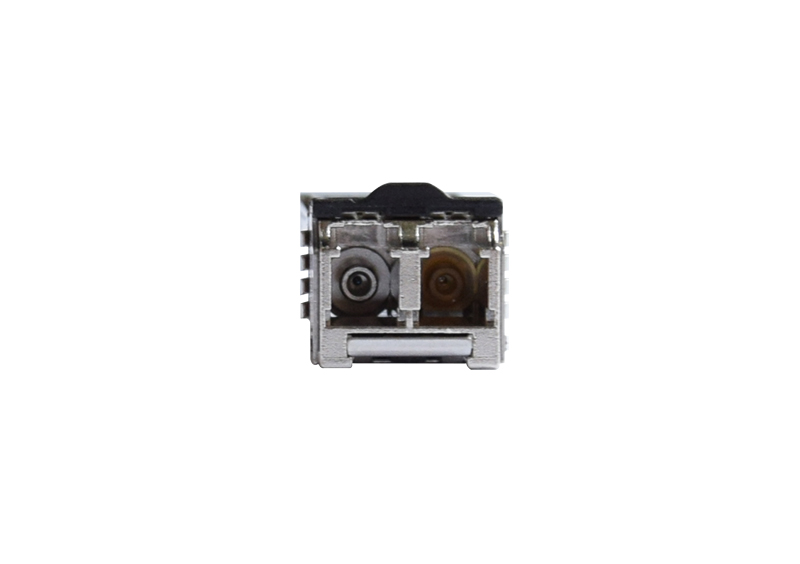

DEM-211/A1
