DGS-1005D

5-Port Gigabit Desktop Unmanaged Switch
היכן לקנות

תאור

The DGS-1005D 5-Port Gigabit Desktop Switch is economical, plug-and-play networking switch solution for SOHO and small to medium businesses. It enables you to easily expand your network and quickly upgrade your connectivity.

Plug-and-Play Installation
The DGS-1005D is plug-and-play device that requires no configuration. You can easily connect multiple computers, share files, music, and video across your home or small office network. 802.3 flow control automatically and efficiently manages the data transmission process without packet loss, providing a more reliable connection for all of your connected devices.

Auto MDI/MDIX CrossOver
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly into a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables, streamlining installation.

Conserve Energy
The DGS-1005D implements a power saving function that can detect when a connected computer is shut down or when there is no Ethernet traffic. The 5-Port Gigabit Desktop Switch will automatically put inactive ports in standby mode, saving a substantial amount of power, and power them back on later when needed.

מאפיינים כללים

Device Interfaces
• 5 10/100/1000Base-T ports

LEDs
• Power
• Link/Activity (per port)

Standards
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.1p QoS
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficiency Ethernet (EEE)

Data Transfer Rates
• Ethernet: 10 Mbps/20 Mbps (Half-duplex/Full-duplex)
• Fast Ethernet: 100 Mbps/200 Mbps (Half-duplex/Full-duplex)
• Gigabit Ethernet: 2000 Mbps (Full-duplex)

Switching Capacity
• 10 Gbps

Forwarding Mode
• Store-and-forward

MAC Address Table Size
• 2K

Packet Filtering/Forwarding Rates
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port

Pshysical Parameters
Power Input
• Power adapter (5 V DC / 1 A)

Maximum Power Consumption
• 3.55 watts

Maximum Heat Dissipation
• 12.11 BTU/hr

MTBF
• 1,455,562 hours

Dimensions
• 100 x 64 x 24 mm

Temperature
• Operating: 0 to 40 °C
• Storage: -10 to 70 °C

Humidity
• Operating: 10% to 90% (non-condensing)
• Storage: 5% to 95% (non-condensing)

Certifications (EMI)
• CE
• FCC
• RoHS

נתונים פיזיים

תקנים

הורדות

DGS-1005D/J2A  5-Port Gigabit Desktop Unmanaged Switch

איורים

DGS-1005D/J2

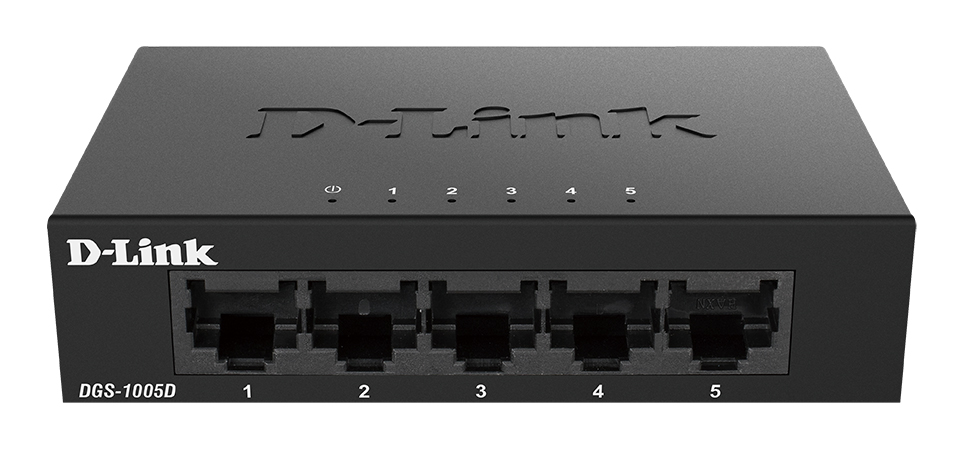

מראה מקדימה

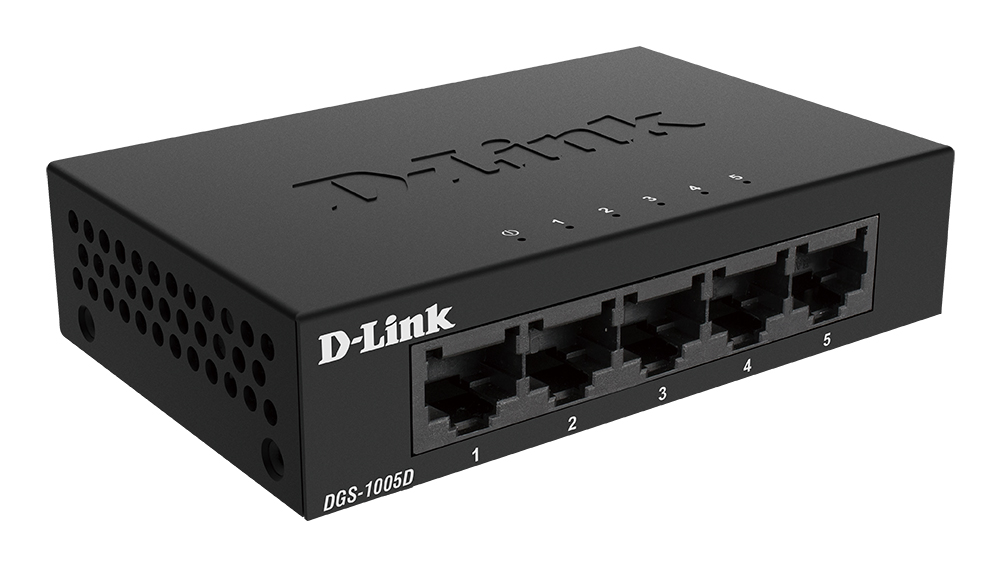

מראה מימין

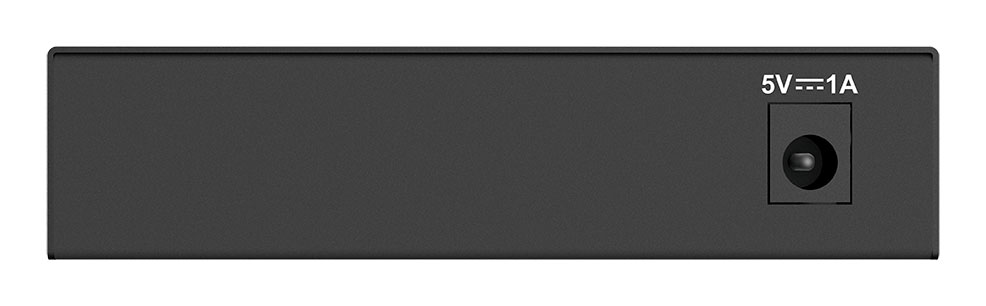

מראה מאחורה
