DEM-CB100QXS-4XS

40G Passive QSFP+ Twinaxial Direct Attach Cable, 1m
היכן לקנות

תאור

The DEM-CB100QXS-4XS QSFP+ to 4X SFP+ one-meter cable is designed to support high-density connections1 for switches with 40G interface. DEM-CB100QXS-4XS features a QSFP+ connector on one end, and four SFP+ connectors on the other end, allowing it to connect to up to four 10G servers.

Ideal for High-Bandwidth Operations
DEM-CB100QXS-4XS supports speeds of up to 40 Gbps, while having lower crosstalk and power consumption than other cables. This makes it an optimal solution for handling high bandwidth transmission within short distances such as within a rack or between racks inside energy-efficient data centers.

Quad Small Form-factor Pluggable Plus Format
The D-Link 40G Passive QSFP+ Twinaxial Direct Attach Cable uses Quad Small Form-factor Pluggable Plus format (QSFP+) connectors, which integrate four transmitting and four receiving channels. The QSFP+ cable assemblies can replace four standard SFP+ cable assemblies, resulting in higher port density, cost efficiency, and a reduction in power savings compared to standard SFP+.

Save on Costs
DEM-CB100QXS-4XS features a QSFP+ connector on one end, and four SFP+ connectors on the other end, thus eliminating the need for expensive QSFP+ transceivers. This makes it more cost-effective than fiber cables which must use QSFP+ transceivers.

1It is recommended that the 40G Passive QSFP+ Twinaxial Direct Attach Cable is only used with D-Link products.

מאפיינים כללים

General
Device Rate
• 40 Gbps Gigabit Ethernet
Connector Type
• 1 QSFP+ connector
• 4 SFP+ connectors
Wire AWG
• 30 AWG
Physical
Cable Length
• 1 m
Minimum Cable Bend Radius
• 59 mm (2.32 inches)
Cable Characteristic Impedance
• 100 Ohms
Maximum Nominal Voltage
• 30 V DC
Operating Voltage
• 3.3 V DC
Current
• 0.5 А
Operating Temperature
• 0 to 70 (32 to 158 °F)
Supply Package
• One DEM-CB100QXS-4XS Cable
Additional
Certifications
• SFP MSA (Multi-Source Agreement)
• SFF-8661
• EIA-364
• UL 94
• EIA-364-1000.01
• RoHS

נתונים פיזיים

תקנים

הורדות

DEM-CB100QXS-4XS/C1A
40G Passive QSFP+ Twinaxial Direct Attach Cable, 1m

איורים

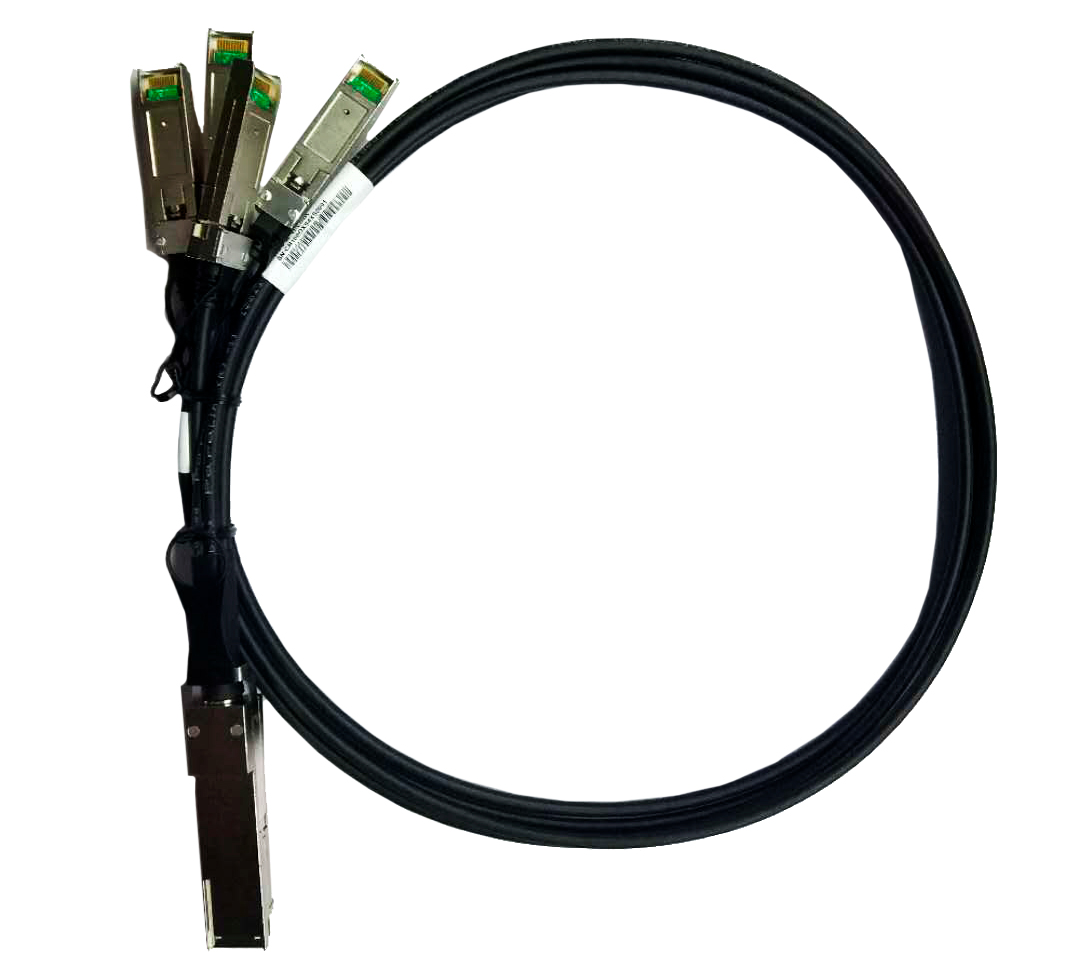

DEM-CB100QXS-4XS/C1
