DGS-3130-30PSמיועד לפרויקטים

24 10/100/1000Base-T PoE ports, 2 10GBase-T ports and 4 10G SFP+ port L3 Stackable Managed Switch
היכן לקנות

תאור

The DGS-3130 Series switches are Lite Layer 3 Stackable Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support multicast, and enhanced security, making them an ideal Gigabit access layer solution. The DGS-3130-30PS provides 24 10/100/1000Base-T PoE ports, 2 10GBase-T ports and 4 10G SFP+ port. Each 10/100/1000Base-T port on the DGS-3130-30PS supports the 802.3af and 802.3at PoE standards. The default power budget is 370 watts and can be expanded to 740 watts with the DPS-700 RPS*. The switches are also equipped with an USB 2.0 port, allowing the user to boot images and upload configuration files directly from, as well as conveniently save syslog files onto a USB 2.0 storage device.

Enhanced Network Reliability
The DGS-3130 Series targets enterprises and metro Ethernet applications, and customers who require a high level of network security and maximum uptime. All the models in the DGS-3130 Series support an external redundant power supply** to ensure continued operation. They also include reliability features, such as 802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP), and 802.1s Multiple Spanning Tree (MSTP), Loopback Detection (LBD), and Broadcast Storm Control, that enhances network resilience. G.8032 Ethernet Ring Protection Switching (ERPS) minimizes the recovery time to 50 ms. For load sharing and redundancy backup in a switch cascading/server attachment configuration, the DGS-3130 Series provides dynamic 802.3ad Link Aggregation Port Trunking.

Comprehensive Security
The DGS-3130 Series provides users with the latest security features such as Multi-layer and Packet Content Access Control Lists (ACL), Storm Control, and IP-MAC-Port Binding (IMPB) with DHCP Snooping. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC and also define the port number to enhance user access control. With the DHCP Snooping feature, the switch automatically learns IP/MAC pairs by snooping DHCP packets and saving them to the IMPB white list.

Easy Access Control Policies
The DGS-3130 Series supports authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and easy deployment. After authentication, individual policies such as VLAN membership, QoS policies, and ACL rules can be assigned to each host.

Versatile Traffic Management
The DGS-3130 Series implements a rich set of multilayer QoS/CoS features to ensure that critical network services such as VoIP, video conferencing, IPTV, and IP surveillance are given high priority. Traffic Shaping features guarantee bandwidth for these services when the network is busy. L2 Multicast support enables the DGS-3130 Series to handle growing IPTV applications. Host-based IGMP/MLD Snooping allows multiple multicast subscribers per physical interface and ISM VLAN to send multicast streams in a multicast VLAN to save bandwidth and to provide better security to the backbone network. The ISM VLAN profiles allow users to bind/replace the pre-defined multicast registration information to subscriber ports quickly and easily.

High Availability and Flexibility
The DGS-3130 Series allows multiple switches to be combined to form a single physical or virtual stack. This increases redundancy over multiple physical units, simplifies management, and provides a single IP address to manage all members in the stack. Up to 9 switches can be combined using DACs/Fibers to make up to 300 Gigabit Ethernet ports available, allowing switching capacity to be increased with demand.

6 kV Surge Protection
The DGS-3130 Series features built-in 6 kV surge protection on all PoE and non-PoE Gigabit Ethernet access ports, and requires no external surge protection equipment. This effectively protects the switches against sudden electrical surges caused events such as lightning strikes or unstable electrical current. Built-in 6 kV surge protection significantly reduces the chances of equipment being damaged from electrical surges, and effectively lowers maintenance costs by minimizing the need for expensive equipment repairs or replacement.

Power over Ethernet (PoE) Support
The DGS-3130-30PS features Power over Ethernet, which allows PoE-powered devices to be powered by the switch through a standard Ethernet cable. Both models support the IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, providing up to 30 W of power per port. PoE effectively reduces deployment time for PoE devices such as IP cameras, VoIP phones, and access points, and eliminates the cost for additional electrical cabling.

Perpetual PoE and Fast PoE are also available with the DGS-3130-30PS. Perpetual PoE delivers uninterrupted power to connected powered devices (PD) even when the power sourcing equipment (PSE) switch is booting. Fast PoE enables the switch to supply power to connected endpoint devices in a relatively short time without waiting for the operating system to boot up.

The DGS-3130-30PS features a 370 W PoE power budget which can be increased to 740 W when outfitted with the DPS-700 redundant power supply, allowing the switches to power even more devices. Additionally, an extended Link Layer Discovery Protocol (LLDP) automatically negotiates and manages the power feed to IEEE 802.3at PoE+ powered devices for optimal power distribution.

* RPS is not included in the package contents.

מאפיינים כללים

Number of Ports
• 24 x 10/100/1000Base-T PoE ports
• 2 x 10GBase-T ports
• 4 x 10G SFP+ ports

Optional Redundant Power Supply*
• DPS-700

Console Port
• 10/100/1000Base-T RJ-45 port for out-of-band CLI management

Management Port
• 10/100/1000Base-T RJ-45 port for out-of-band IP management

Stacking Ports
• 4

Stacking Cost**
• 1

USB Ports
• USB 2.0 Type A port

Performance
• Switching Capacity: 168 Gbps
• Packet Forwarding Rate: 125 Mpps
• Packet Buffer Memory: 2 MB
• MAC Address Table: 16K entries
• Jumbo Frame Size: 9 KB

PoE Standards
• IEEE 802.3af
• IEEE 802.3at
• Perpetual PoE
• Fast PoE

PoE Power Budget
• 370 W (740 W with DPS-700 RPS)

Software Features
Stackability
• Virtual Stacking
  - D-Link Single IP Management (SIM)
  - Up to 32 units per virtual stack
• Physical Stacking**
  - Up to 80 Gbps stacking bandwidth
  - Up to 9 units per stack or up to 12 stacking cost per stack**
  - Ring/chain topology support

L2 Features
• MAC Address Table: 16K (16,384) entries
• Flow Control
  - 802.3x Flow Control
  - HOL Blocking Prevention
• Jumbo Frames up to 9 Kbytes
• 802.1AX/802.3ad Link Aggregation
  -Max. 32 groups per device, 8 ports per group
• Spanning Tree Protocols
  - 802.1D STP
  - 802.1w RSTP
  - 802.1s MSTP
  - BPDU Filtering
  - Root Guard (Restriction)
• Loopback Detection
• Port Mirroring
  - One-to-One
  - Many-to-One
  - Supports Mirroring for both Tx/Rx
  - Supports 4 mirroring groups
• Flow mirroring
  - Supports Mirroring for Tx/Rx
• VLAN Mirroring
• RSPAN
• L2 Protocol Tunneling
• Ethernet Ring Protection Switching (ERPS) v1/v2

L2 Multicasting
• IGMP Snooping
  - IGMP v1/v2/v3 Snooping
  - Supports 1024 IGMP groups
  - IGMP Snooping Fast Leave
  - Supports 128 static IGMP groups
  - Per VLAN IGMP Snooping
  - Data Driven Learning
  - IGMP Snooping Querier
  - IGMP Authentication
  - IGMP Accounting
• Report Suppression
• MLD Snooping
  - MLD v1/v2 Snooping
  - Support 1024 MLD Groups
  - MLD Snooping Fast Leave
  - Supports 64 static MLD groups
  - MLD Snooping Querier
  - Per VLAN MLD Snooping
  - MLD Proxy Reporting

L3 Multicasting
• IGMP v1/v2/v3
• PIM-SM for IPv4***

VLAN
• VLAN Group
  - Max. 4K VLAN Groups
  - Max. 1~4094 VIDs
• GVRP
  - Max. 4K Dynamic VLAN Groups
• 802.1Q Tagged VLAN
• Auto Surveillance VLAN
• Port-based VLAN
• 802.1v Protocol VLAN
• Voice VLAN
• MAC-based VLAN
• VLAN translation
• Multicast VLAN (ISM VLAN for IPv4/IPv6)
• Asymmetric VLAN
• Private VLAN
• VLAN Trunking
• Super VLAN
• Double VLAN Q-in-Q
  - Port-based Q-in-Q
  - Selective Q-in-Q

QoS (Quality of Service)
• 802.1p
• 8 queues per port
• Queue Handling
  - Strict Priority
  - Weighted Round Robin (WRR)
  - Strict + WRR
  - Weighted Deficit Round Robin (WDRR)
• Policy Map
  - Remark 802.1p priority
  - Remark IP precedence/DSCP
  - Time based QoS
  - Congestion Control
  - Weighted Random Early Detection (WRED)
• CoS based on
  - Switch port
  - Inner/Outer VID
  - Inner/Outer 802.1p Priority
  - MAC address
  - IP address
  - DSCP
  - Protocol type
  - TCP/UDP port
  - IPv6 traffic class
  - IPv6 flow label
• Bandwidth Control
  - Port-based (Ingress/Egress, Min. Granularity 8 Kbps)
  - Flow-based (Ingress/Egress, Min. Granularity 8 Kbps)
  - Per queue bandwidth control (Min. Granularity 8 Kbps)
• Three Color Marker
  - CIR/PIR minimum granularity: 8 kbps
  - Two Rate Three Color Marker (trTCM)
  - Single Rate Three Color Marker (srTCM)

Access Control List (ACL)
• ACL based on
  - 802.1p priority
  - VID
  - MAC address
  - Ether Type
  - LLC
  - VLAN
  - IP address
  - IP preference/ToS
  - DSCP mask
  - Protocol type
  - TCP/UDP port number
  - IPv6 Traffic Class
  - IPv6 Flow Label
• Time-based ACL
• CPU Interface Filtering
• Max. ACL entries:
  - Ingress (hardware entries): 2048
  - Egress (hardware entries): 512
  - VLAN Access Map Numbers: 100

Security
• Port Security
  - Supports up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
• D-Link Safeguard Engine
• DHCP Server Screening
• IP Source Guard
• DHCP Snooping
• IPv6 Snooping
• Dynamic ARP Inspection (DAI)
• DHCPv6 Guard
• IPv6 Route Advertisement (RA) Guard
• IPv6 ND Inspection
• Duplicate Address Detection (DAD)
• ARP Spoofing Prevention
  - Max. 64 entries
• L3 Control Packet Filtering
• Traffic Segmentation
• SSL
  - Supports TLS 1.0/1.1/1.2
  - Supports IPv4/IPv6 access
• SSH
  - Supports SSH v2
  - Supports IPv4/IPv6 access
• BPDU Attack Protection
• DOS Attack Prevention

AAA
• Guest VLAN
• 802.1X Authentication
  - Supports port/host-based access control
  - Identity-driven Policy Assignment
  - Dynamic VLAN Assignment
  - Ingress/Egress Bandwidth Control
  - ACl Assignment
• Privilege Level for Management Access
• Trusted Host
• RADIUS/TACACS+ Accounting
• Web-based Access Control (WAC)
  - Supports port/host-based access control
  - Identity-driven Policy Assignment
  - Dynamic VLAN Assignment
  - Support IPv4 access
  - Ingress/Egress Bandwidth Control
  - ACL Assignment
• RAIDUS and TACACS+ Authentication
• Authentication Database Failover
• Compound Authentication
• MAC-based Access Control (MAC)
  - Supports port/host-based access control
  - Identity-driven Policy Assignment
  - Dynamic VLAN Assignment
  - Ingress/Egress Bandwidth Control
  - ACL Assignment

Green Features
• Energy-Efficient Ethernet (EEE)
• Power saving by link status
• Power saving by cable length
• Dying Gasp
• 802.1ag Connectivity Fault Management (CFM)
• Y.1731 OAM
• Optical Transceiver Digital Diagnostic Monitoring (DDM)

Management
• Web-based GUI
  - Support IPv4/IPv6 access
  - Support SSL (HTTPS)
• Command Line Interface (CLI)
• Telnet Server for IPv4/IPv6
• Telnet Client for IPv4/IPv6
• TFTP Client for IPv4/IPv6
• DNS Client for IPv4/IPv6
• Secure FTP Server for IPv4/IPv6
• SNMP
  - Support v1/v2c/v3
  - Support for IPv4/IPv6 access
• SNMP Traps
• System Log for IPv4/IPv6 Syslog Server
• sFlow
• Multiple images/ Multiple Configurations
• RMON v1:
  - Supports 1, 2, 3, 9 groups
• RMON v2:
  - Supports ProbeConfig group
• LLDP/LLDP-MED
• BootP/DHCP Client
• DHCP Auto-Configuration
• DHCP/DHCPv6 Local Relay
• DHCP Relay Option 60/61/62/125
• Flash File System
• PPPoE Circuit-ID Tag Insertion
• D-Link Discover Protocol (DDP)
• Debug command
• Support IPv4/v6 SNTP Server
• NTPv3/v4
• Password recovery/ encryption
• DHCP server
  - Support for IPv4/IPv6 address assignment
• Command Logging
• SMTP
• DHCPv6 Prefix Delegation (PD)
• Ping/ Traceroute for IPv4/IPv6
• Microsoft® Network Load Balancing (NLB)
• PD Alive (PoE Models Only)

L3 Features
• IPv4 ARP Entries 4096
  - 256 Static ARP
• IPv6 ND Entries:1024
  - 128 Static ND Entries
• IP Interface
  - Supports 128 interfaces
• Gratuitous ARP
• Loopback Interface
• Proxy ARP
  - Support local ARP proxy
• VRRP v2/v3
• IP Helper

L3 Routing
• Supports 1024 hardware routing entries shared by IPv4/IPv6
  - 1 entry consumed by each IPv4 route
  - 2 entries consumed by each IPv6 route
• Supports up to 4096 hardware L3 forwarding entries shared by IPv4/IPv6 4
  - 1 entry consumed by each IPv4 route
  - 2 entries consumed by each IPv6 route
• IPv4/IPv6 Static Route
  - Max. 512 IPv4 entries
  - Max. 256 IPv6 entries
  - Support Equal-Cost Multi-Path Route (ECMP)
• IPv4/IPv6 Default Route
• PBR (Policy-based Route)
• Null Route
• Route Preference
• Route Redistribution
• RIPv1/v2/ng
• OSPF
  - OSPF v2/v3
  - OSPF passive interface
  - Stub/NSSA area
  - Support Equal-Cost Multi-Path Route (ECMP)
  - Text/MD5

MIB
• RFC1065, RFC1066, RFC1155, RFC1156, RFC2578 MIB Structure
• RFC1212 Concise MIB Definitions
• RFC1213 MIBII
• RFC1215 MIB Traps Convention
• RFC1493, RFC4188 Bridge MIB
• RFC1157, RFC2571, RFC2572, RFC2573, RFC2574, RFC2575, RFC2576 SNMP MIB
• RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC3636 SNMPv2 MIB
• RFC271, RFC1757, RFC2819 RMON MIB
• RFC2021 RMONv2 MIB
• RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC3635 Ether-like MIB
• RFC2668 802.3 MAU MIB
• RFC2674, RFC4363 802.1p MIB
• Interface Group MIB
• RFC2618 RADIUS Authentication Client MIB
• RFC4022 MIB for TCP
• RFC4113 MIB for UDP
• RFC2389 MIB for Diffserv.
• RFC2620 RADIUS Accounting Client MIB
• RFC2925 Ping & TRACEROUTE MIB
• TFTP uploads and downloads (D-Link MIB)
• Trap MIB (D-Link MIB)
• RFC4265 IPv6 MIB
• RFC4266 ICMPv6 MIB
• Entity MIB
• VRRP MIB
• RIPv2 MIB
• RFC1850, RFC5643 OSPF MIB
• RFC4293 IPv6 SNMP Mgmt Interface MIB
• DDM MIB (D-Link MIB)
• Private MIB
• MIB for D-Link Zone Defense
• RFC3621 Power Ethernet MIB
• DDP MIB
• LLDP-MED MIB

RFC Standard Compliance
• RFC768 UDP
• RFC791 IP
• RFC793 TCP
• RFC826 ARP
• RFC3513, 4291, IPv6 Addressing Architecture
• RFC2474, RFC3168, RFC3260 Definition of the DS Field in the IPv4 and IPv6 Headers
• RFC1321, RFC2284, RFC2865, RFC2716, RFC1759, RFC3580, RFC3748 Extensible Authentication Protocol (EAP)
• RFC2571 SNMP Framework
• RFC 2068 HTTP
• RFC 2866 RADIUS Accounting
• RFC792 ICMPv4
• RFC2463, RFC4443 ICMPv6
• RFC4884 Extended ICMP to support Multi-Part Messages
• RFC1338, RFC1519 CIDR
• RFC2574 User-based Security Model for SNMPv3
• RFC1981 Path MTU Discovery for IPv6
• RFC2460 IPv6
• RFC2571, 2572, 2573, 2574, SNMP
• RFC854 Telnet
• RFC951, 1542 BootP
• RFC2461, RFC4861 Neighbor Discovery for IPv6
• RFC2462, RFC4862 IPv6 Stateless Address Auto-configuration (SLAAC)
• RFC2464 IPv6 over Ethernet and definition
• RFC1886 DNS extension support for IPv6

Physical Parameters
MTBF
• 279,418 hours

Acoustics
• Max: 56 dB
• Min: 43.5 dB

Heat Dissipation
• 1,550.92 BTU/h

Power Input
• 100 to 240 VAC 50/60 Hz

Maximum Power Consumption
• 454.55 W

Standby Power Consumption
• 19.63 W

Dimensions
• 440 x 430 x 44 mm

Weight
• 5.6 kg

Ventilation
• 3 Smart fans

Operating Temperature
• 0 to 50 °C

Storage Temperature
• -40 to 70 °C

Operating Humidity
• 10% to 90% RH

Storage Humidity
• 5% to 90% RH

EMI
• FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI

Safety
• CB, cUL, BSMI

* RPS is not included in the package contents.
** When stacking the DGS-3130-30TS/30S/30PS models, the stacking cost is 1 per unit so the maximum units per stack is 9.
When stacking the DGS-3130-54TS/54S/54PS models, the stacking cost is 2 per unit so the maximum units per stack is 6.
When stacking different models in the same stack, switches can be stacked up to a maximum of 12 stacking cost per stack. For example: 2 x DGS-3130-30TS (2 stacking cost) + 2 x DGS-3130-30S (2 stacking cost) + 4 x DGS-
3130-54TS (8 stacking cost) consumes a total stacking cost of 12 (2+2+8).
*** This feature does not support physical stacking mode. Only standalone mode is supported.

נתונים פיזיים

תקנים

הורדות

DGS-3130-30PS/B1A
24 10/100/1000Base-T PoE ports, 2 10GBase-T ports and 4 10G SFP+ port L3 Stackable Managed Switch

איורים

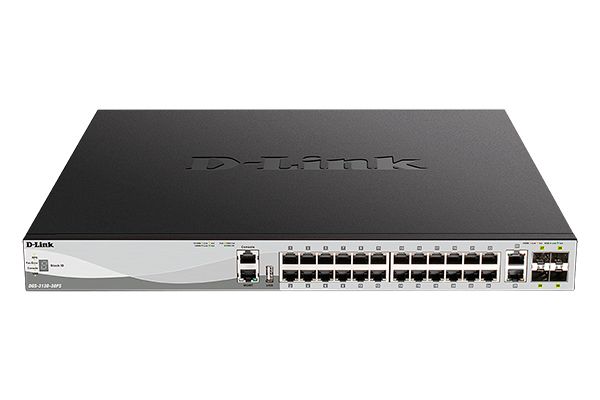

DGS-3130-30PS/B1

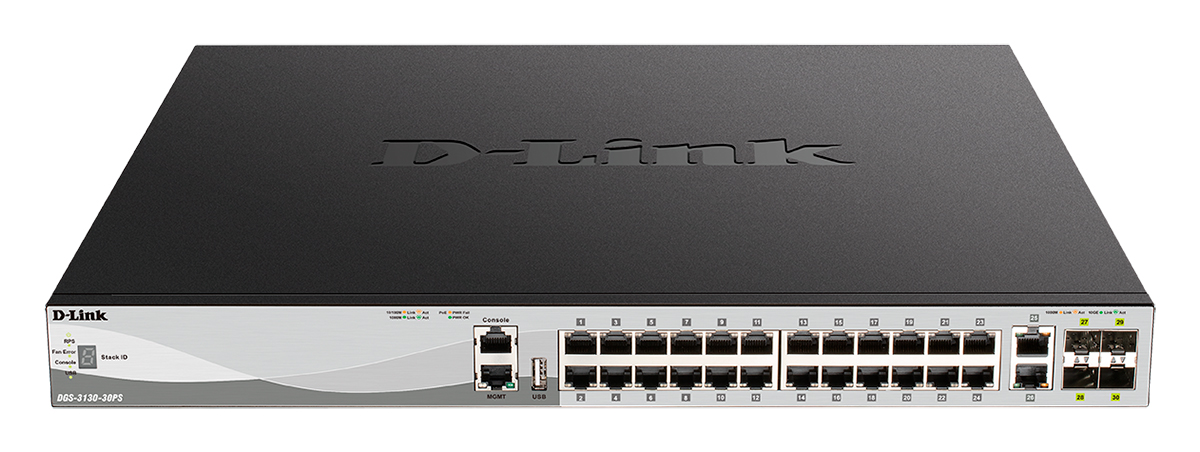

מראה מקדימה

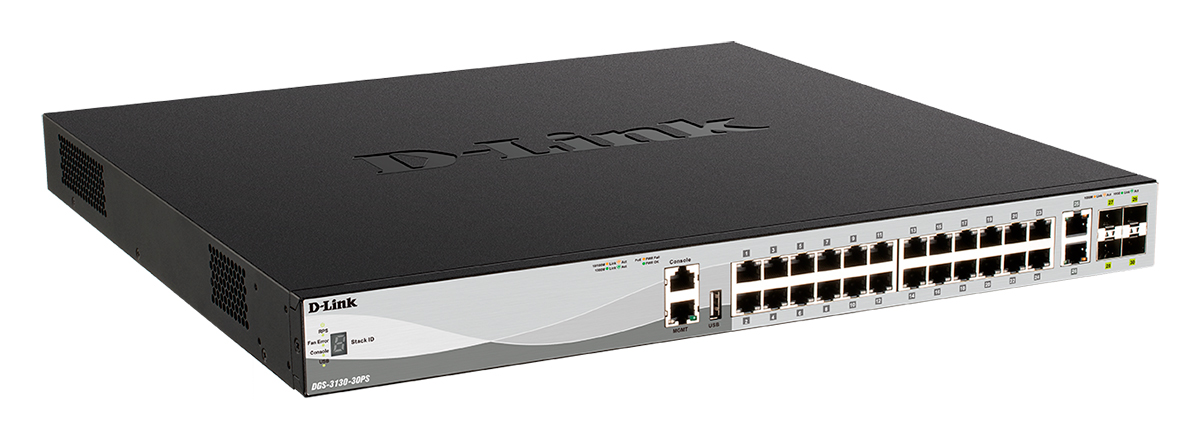

מראה מימין

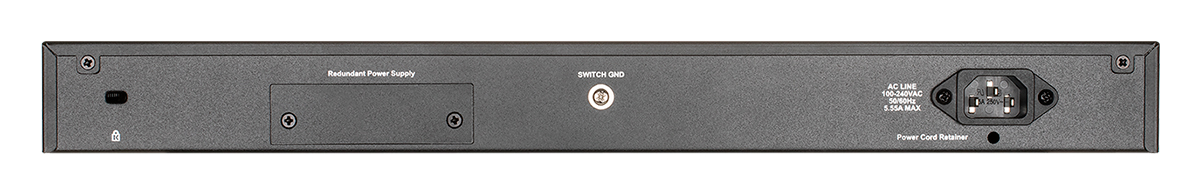

מראה מאחורה

דף מידע

ראה גם
