KVM-440

8-Port KVM Switch with VGA and USB Ports

תאור

The D-Link KVM-440 8-port KVM switch with VGA and USB ports allows you to manage up to eight computers with one monitor, one keyboard and one mouse. The KVM-440 requires no driver installation and no external power adapter connection. This KVM switch supports hot-plugging - you don't need to turn your computers off before installing the device. The KVM-440 allows you to switch between computers quickly and easily using the buttons located on the front panel, IR remote controller or desktop controller. The KVM-440 supports autoscan mode, which provides automatic switching to the next PC after the scan interval expires. Two USB ports can be used for connecting external devices, for example, USB-disk. This KVM switch can be mounted in a 19-inch rack with the included mounting brackets.

מאפיינים כללים

Hardware
Ports for connecting KVM cables
• 8 VGA ports

Ports for connecting management console
• Monitor (local): VGA
• Keyboard (local): USB Type-A
• Mouse (local): USB Type-A

Ports for connecting external devices
• 2 USB Type-A ports

Port for connecting smart desktop controller
• Mini-USB

KVM cable connectors for connecting PC
• Video: 15-pin HDB connector (VGA)
• Keyboard/Mouse: USB Type-A connector

LEDs
• 8 port LEDs for connected PCs

Buttons
• 8 port switching buttons

Enclosure
• Metal, 19-inch rack mountable

General Specifications
Connected PCs
• Up to 8

Autoscan mode
• Yes

Switching between PCs
• Switching buttons on the front panel
• IR remote controller
• Desktop controller

Sound notification of switching
• Yes

Max. resolution
• 1920x1440

Physical Parameters
Weight
• 2.37 kg

Dimensions (L x W x H)
• 370 x 83 x 30 mm

Environmental Conditions
Power Supply
• From USB port on PC (no external power adapter required)

Temperature
• Operating: -50 to 80 °C
• Storage: -20 to 60 °C

Humidity
• 0% to 80% non-condensing

Compatible KVM cables*
• DKVM-CU/B
• DKVM-CU3/B
• DKVM-CU5/B

* NOTE! The KVM cables of hardware revision B are compatible only with the KVM-440 KVM switch of hardware revision C.

תקנים

הורדות

KVM-440  8-Port KVM Switch with VGA and USB Ports

איורים

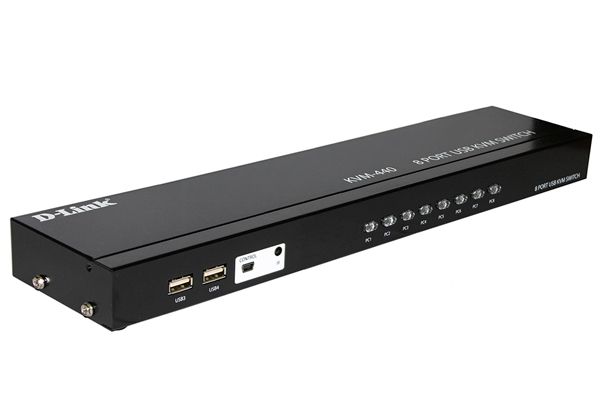

KVM-440/Cx

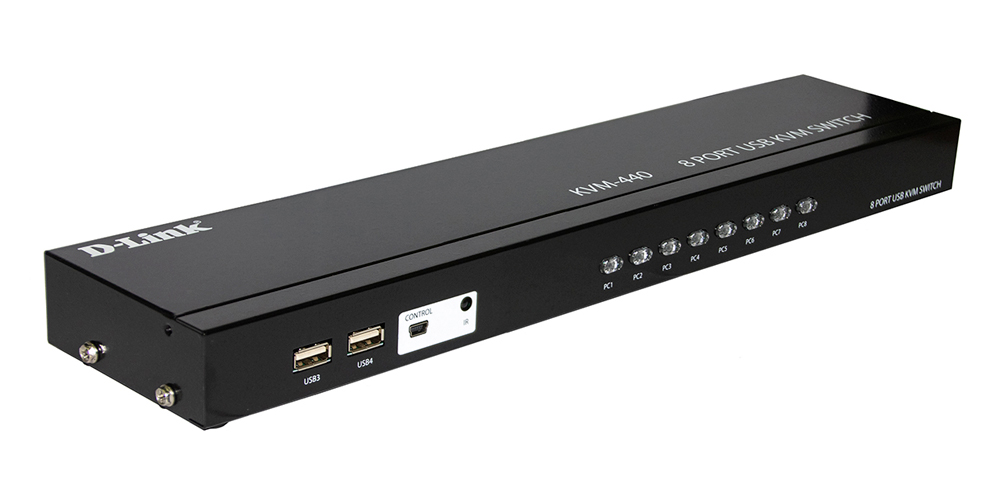

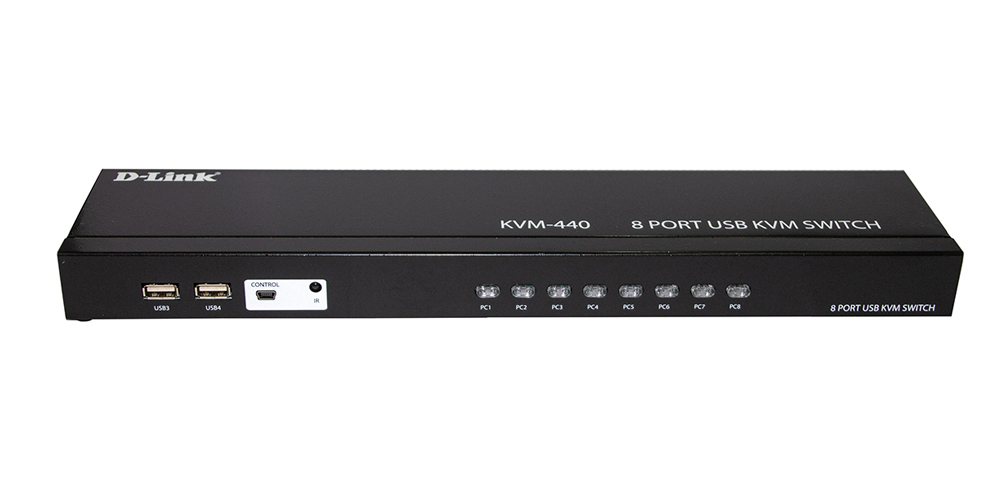

מראה מקדימה
מראה מקדימה

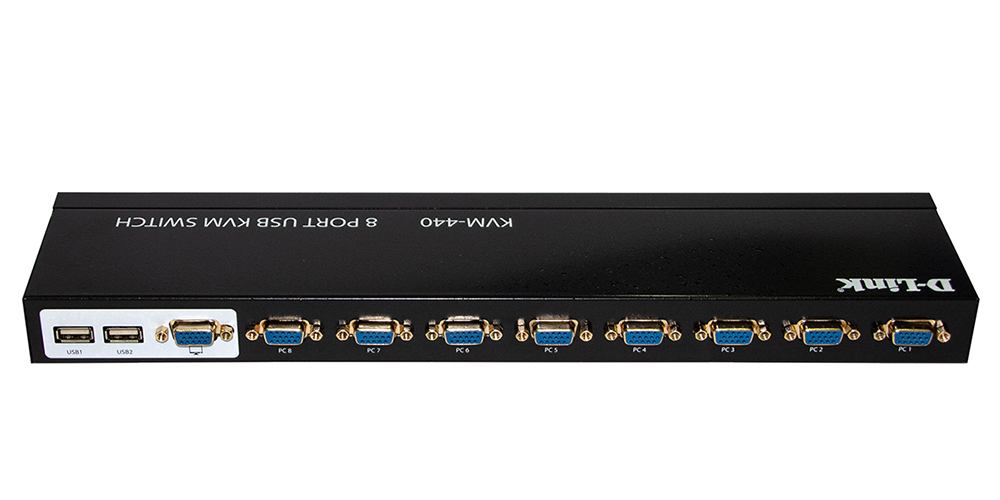

מראה מאחורה
