DPH-150SEEOL
IP Phone with color LCD, 1 10/100Base-TX PoE WAN port and 1 10/100Base-TX LAN port
תאור
DPH-150SE IP Phones are mainly designed for general office users (from VSE, SOHO to SMB) in VoIP communication. With sophisticated and elegant design, this platform has high performance and can offer versatile features and specifications to meet different environment requirements. It can be installed on LAN /DSL/Cable network environment and registered to SIP registrar Server(s), soft switch(es), IP-PBX(s), or IMS-based system and let SIP-enabled terminals to communicate with. Beyond this, users PC can be connected to this phone instead of LAN directly. The phone comes with a plastic Housing and some accessories, including handset, handset cord, keypad, keys and wall-mounting kit. A TFT color LCD display on the panel provides direct visual interface with user. User can use keypad/LCD or Web browser to configure this phone.
מאפיינים כללים

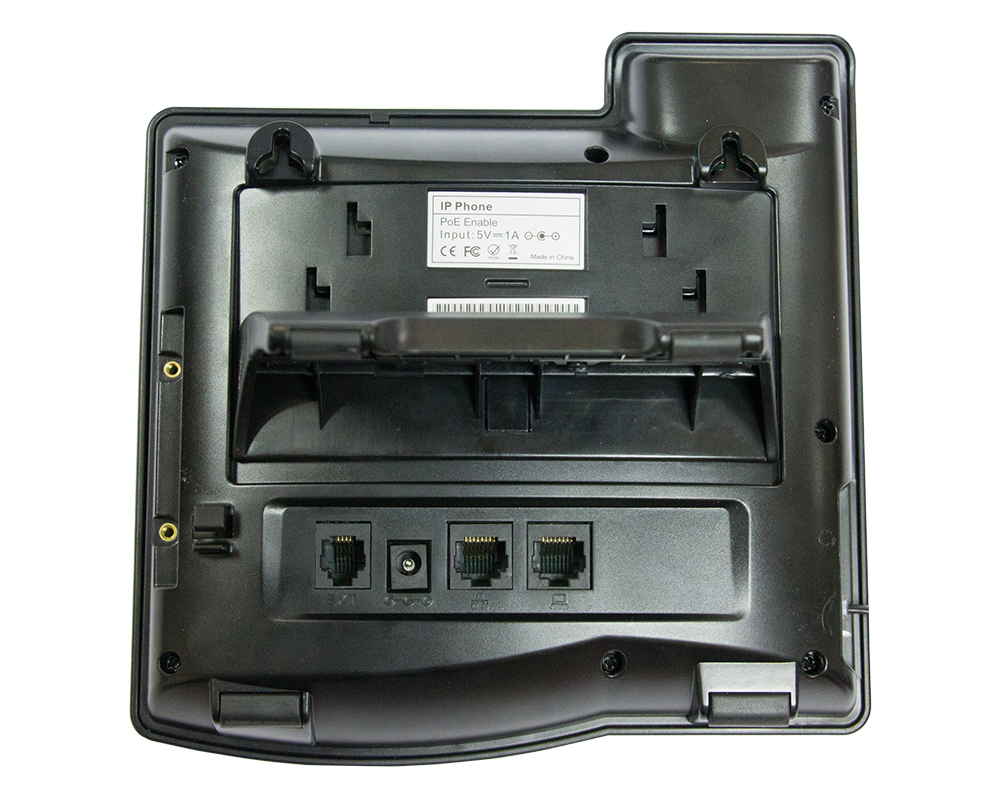

Network interface
• WAN Port 10/100Base-TX Ethernet with PoE support
• LAN Port 10/100Base-TX Ethernet
• 5V DC IN Jack
• Handset Hook switch
• Handset Jack
• External console Jack
Keypad Features
• 4 Soft keys for doing more functions
• 8 DSS keys
• 4 Navigator Keys and 1 ok key for navigating in configuration
• Hold
• Call forward
• Three-partyA conference
• MWI
• Headset
• Redial (Redial and the entry to access call history; finish dialing and call the number)
• Speaker
• 12 numeric keys with star & pound key
• Mute
• Vol - / Vol +
Hardware
• CPU: BCM 1190
• SDRAM: 16 M
• FLASH: 8 M
LCD
• 2.8 inch Color LCD
• Resolution: 320x240,TFT color LCD
Physical
• Dimension: 195 A— 188 A— 51 mm
• Net Weight: 0.51kg
Power Adaptor
• AC-DC Switching Power switching
• Wall-Mount type
• Input: 100~120, 220~240VAC
• Output: DC 5V / 0.6A
• Max. Watt: 5 Watt.
• IEEE802.3af POE Class 1
Power Consumption
• Typical: 1.3 Watt (Standby)
• Max.: 4.3 Watt (Talking)
Temperature
• Operating: 0 to 40
• Storage: -20 to 60
Related Humidity
• Operating: 10% to 65 % (no-condensing)
• Storage: 15% to 85% (non-condensing)
Software
• Operating System: VxWorks
• SIP Stack: D-link SIP Stack
• Software Platform: VxWorks Software Platform
Software Requirements
• Browser for Web of Phone: Microsoft Windows IE, or PC-based general web browser
• Auto Provisioning Server: General compatible TFTP, FTP & HTTP&HTTPS Server Software
Phone Features
• Multi-user (4 SIP accounts)
• Caller ID display
• Call History: 100 Missed Calls, 100 Received Calls, 100 Dialed Calls
• Phone book (up to 500 contact names and phone numbers)
• Day/Time display
• Call/Time display
• 9 Selective Ring tones
• 9 Speed dial number
• Incoming call indicator
• Flexible dial map
• Password control for Configuration
• Pre-dial before sending

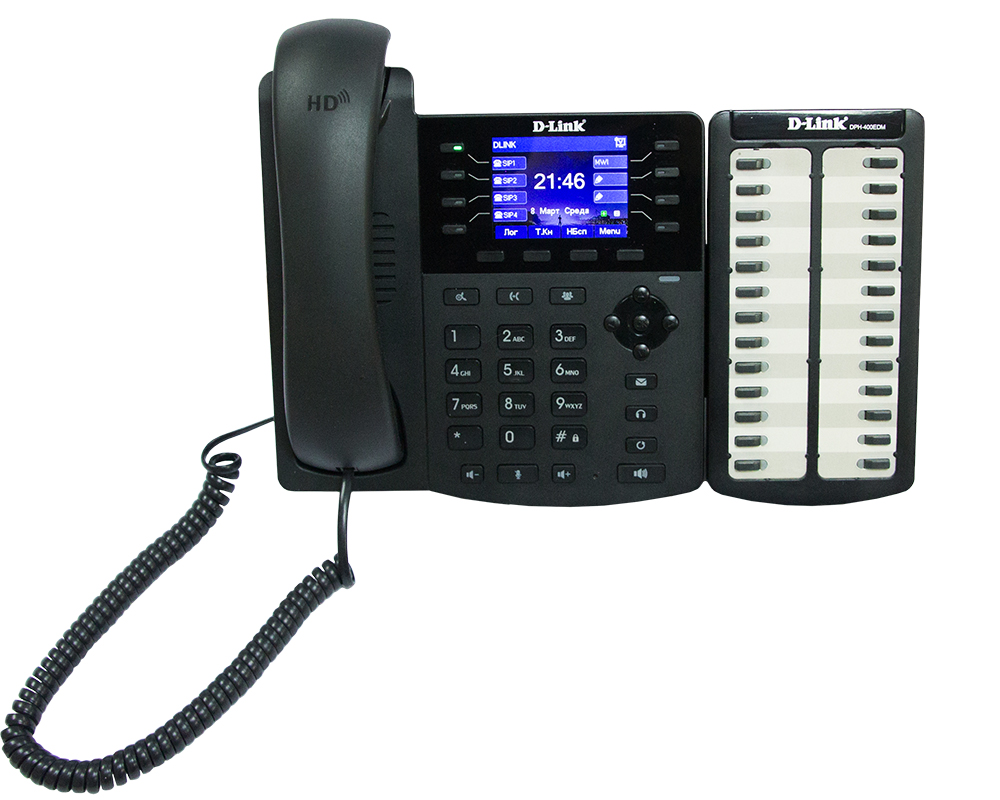

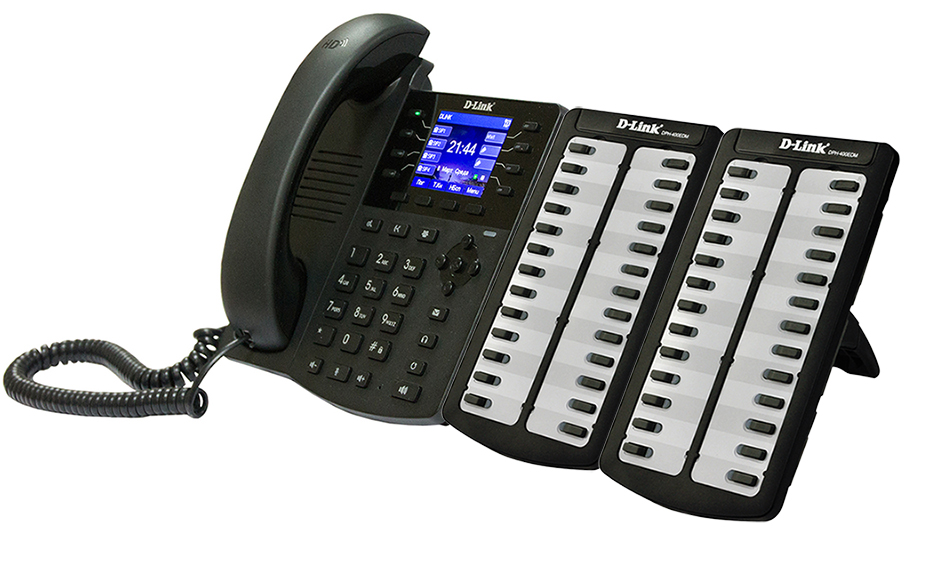

• Connect with expansion module
• Memo
• MWI
• SMS
• Keypad lock
• Emergency call
• Customize DSS key/ softkey
Voice Codec
• G.711a/u (64k bps)
• G.729A/B (8k bps)
• G.723.1 high/low
• G.726-32
• G.722
Advance Voice Quality Feature
• Silence Suppression
• Acoustic Echo Cancellation (G.168): Hands-free can support 96ms
• Voice Active Detection (VAD)
• Comfort Noise Generation
• Jitter Buffer
• DTMF Transmitter (SIP info, Transparent, RFC 2833)
• Packet Lost Concealment (PLC)
• Support HD voice
Signal, Media & Network Protocols
• SIP RFC 3261 & the related RFC standard in Appendix A
• SDP RFC 2327
• RTP RFC 1889
• IP assignment: Static IP, DHCP and PPPoE
• STUN, static port mapping (for NAT traversal)
• SNTP
• DNS & DNS SRV
• TFTP/FTP/HTTP for Auto Provision
• IP/TCP/UDP/ARP/ICMP
Supplementary Call Feature
• Call Hold Resume
• Call Mute
• Call Transfer (Blind, Attend & Early Attended Transfer)
• Call Forward (Busy, No answer, Unconditional)
• Call Waiting
• Call waiting Indication
• Three Way Conference
• Anonymous Call/Rejection
• Message Waiting Indication
• Do Not Disturb
• Auto Answer
• Black list
• Limit list
• Auto hangup
• Ban outgoing
• Hot line
• BLF/Presence
• Intercom
• Call Pickup
• Action url/Active uri
Network Capability
• QoS: IEEE 802.1Q & IEEE 802.1p Compliant
• Diffserv (DSCP)/ToS
• Full range VLAN ID Support(voice vlan/data vlan)
• Class of Service Support by VLAN Tag
• LLDP
• L2TP VPN/OpenVpn
User Interface and Network Management
• LCD/Keypad UI in English & other Languages
• HTTP(WEB) UI in English version & other Languages
• FTP/TFTP/HTTP for Firmware remote update
• APS auto-provisioning for firmware and profile upgrade
• Emergence upgrade if firmware corrupted
Certifications
• CE Class B
