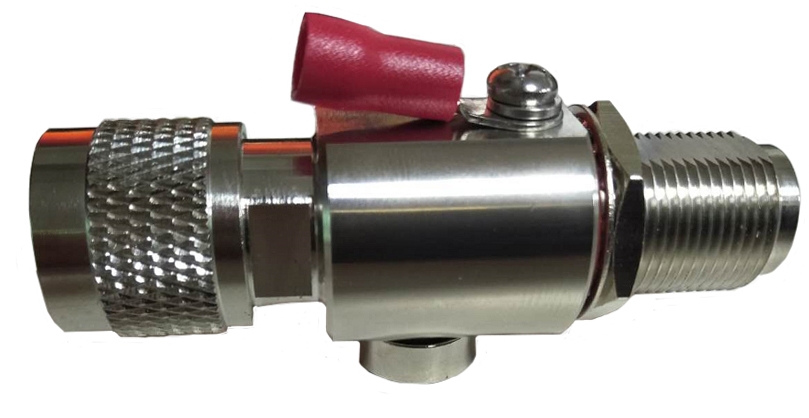

ANT-SP
Lightning surge protector
תאור
The ANT-SP lightning surge protector for outdoor antennas is designed for protecting wireless devices from lightning strikes. This device provides protection from the intrusion of high-voltage currents into receiving equipment through the antenna cable during lightning discharge and the generation of static electricity. The ANT-SP lightning surge protector must be grounded. This device is compatible with all D-Link outdoor antennas.
מאפיינים כללים
Connectors
• N Plug & N Jack
Frequency range
• 0 GHz - 6 GHz
Impedance
• 50 Ohms
Insertion loss
• 0.8 dB (max.)
VSWR
• 1.3 @ 0 GHz - 3 GHz
• 1.5 @ 3 GHz - 6 GHz
Gas tube DO breakdown voltage
• 90 V ± 20%
Impulse discharge voltage
• 5 KA min (wave 8/20 μs)
• 10 KV min (wave 1.2/50 μs)
Insulation resistance
• DC 50 V > 10000 MOhms
Physical Parameters
Dimensions (L x W x H)
• 68 x 23 x 27 mm
Weight
• 180 g ± 20 g
Environmental Conditions
Weatherproof
• IP67
Operating temperature
• 40° to 80°C
Operating humidity
• 0% to 95%
