ACS-WPCASE

Waterproof outdoor case for wireless access point/router

תאור

Waterproof outdoor case ACS-WPCASE is a comprehensive and low-cost solution for use with wireless access point/router. This IP67-certified case protects your access point/router against dust and heavy jets of water. Metal case ACS-WPCASE is equipped with 2 STD-N antenna connectors and Ethernet port hole. Additionally it has 2 omnidirectional 5dBi antennas for 2.4GHz band and one LAN port Waterproof protection. Mounting kit, two external antennas and grounding wire are included.

מאפיינים כללים

Interfaces
• LAN port 10/100/1000Base-T

LEDs
• LAN
• WLAN
• PWR

Antennas
• 2 detachable dipole antennas
• Antenna Gain: 5dBi for 2.4GHz
• STD-N type

Buttons
• Reset

Dimensions
• 250 x 220 x 73 mm

Weight
• 1650 g

Environmental Conditions
• Power and temperature characteristics must be in accordance with the characteristics specified for supported equipment that will be placed to the case.

Supported access points
• DAP-2360
• DAP-3340
• DWL-2600AP etc.

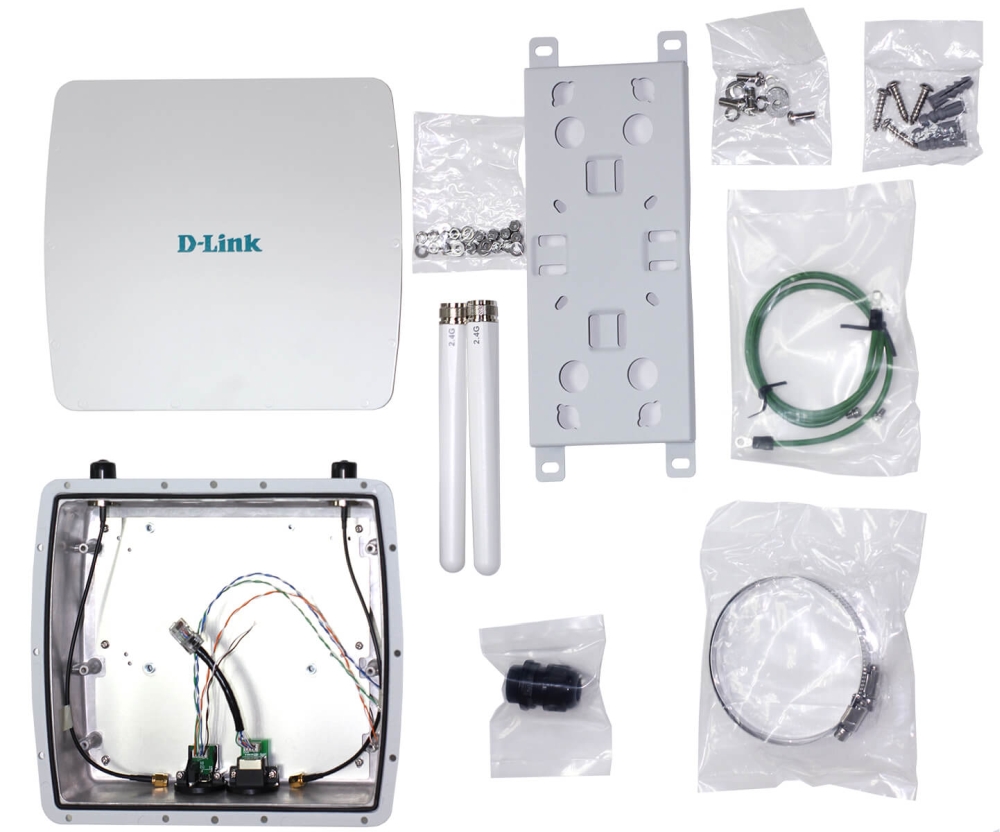

Package contents
• Waterproof outdoor case for wireless access point/router
• Two Dipole Antennas
• Grounding kit
• Mounting Kit
• LAN port Waterproof Enclosure

Important: power adapter and PoE injector are not included.


תקנים

הורדות

ACS-WPCASE Waterproof outdoor case for wireless access point/router

איורים

ACS-WPCASE/Ax

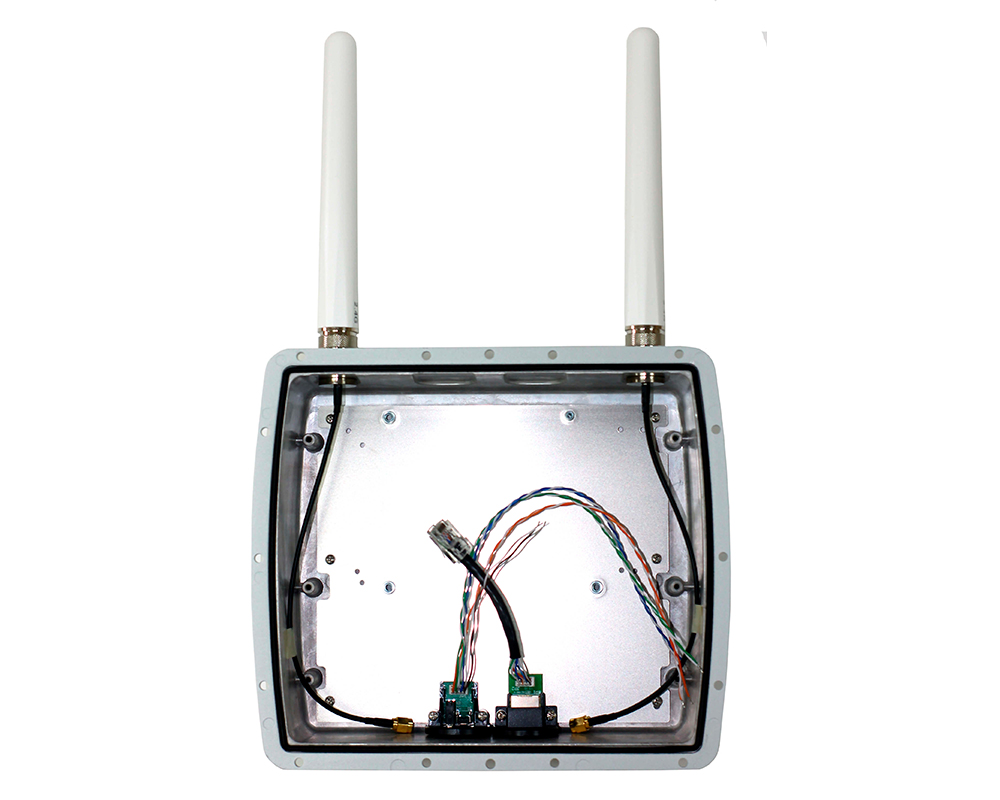

מראה מאחורה

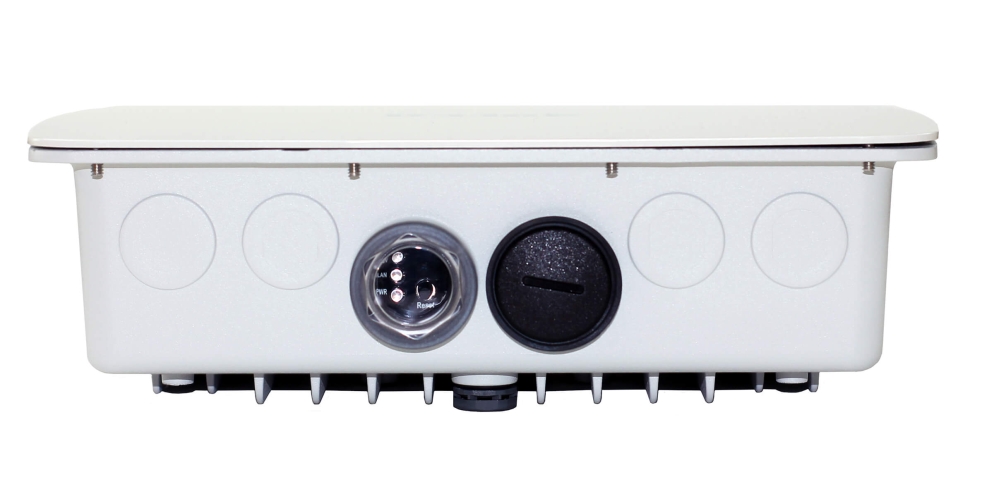

Bottom view

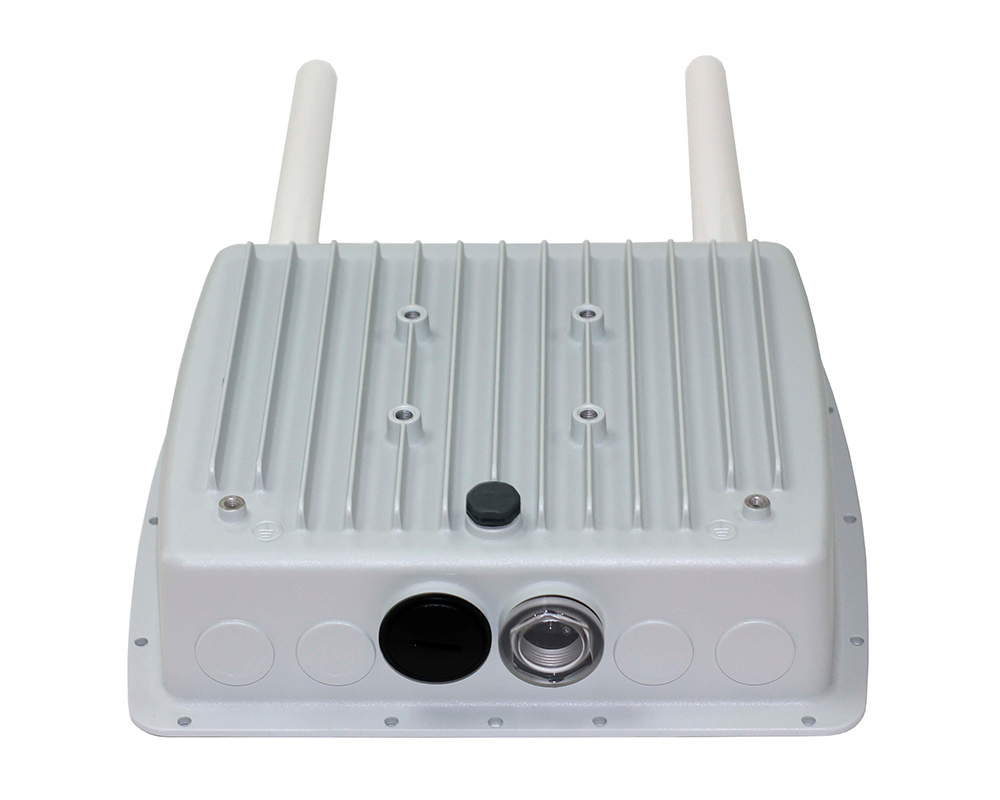

Bottom view
מראה מקדימה

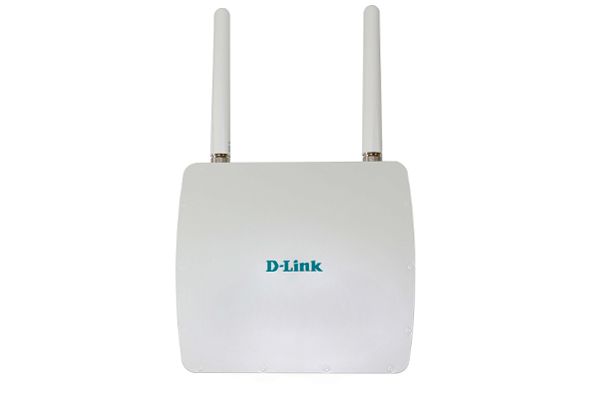

Top view

דף מידע
