ANT24-1201

Outdoor Directional Antenna, 12 dBi

תאור

The ANT24-1201 outdoor directional antenna with 12 dBi gain operates in 2.4 - 2.5 GHz frequency band and has N Plug connector.

The ANT24-1201 antenna connects to a wireless device equipped with detachable external antennas, for example access point or router. Standard detachable antennas usually have lesser gain than the ANT24-1201, therefore using the 12 dBi ANT24-1201 antenna allows you to extend the 2.4 GHz wireless network coverage and improve the quality of signal reception/transmission. This antenna is designed for outdoor use. Wide range of operating temperatures (-40 to 80 В°C) allows you to use the antenna in harsh environmental conditions. N type connector provides compatibility with the most of outdoor access points, while the optional N Jack & RP-SMA Plug cable allows you to connect the ANT24-1201 to indoor wireless devices.

מאפיינים כללים

Connector
• N Plug

Frequency band
• 2.4 GHz - 2.5 GHz

Gain
• 12 dBi

VSWR
• 1.5 : 1 Max.

Polarization
• Linear, vertical

HPBW / horizontal
• 70В° В± 5В°

HPBW / vertical
• 55В° В± 5В°

Impedance
• 50 Ohms

Power handling
• 50 W

Lightning protection
• DC Ground

Physical Parameters
Dimensions
• 370 x 97 x 45 mm

Weight
• 0.4 kg

Environmental Conditions
Survival wind speed
• 180 km/hr

Operating temperature
• -40 to 80 В°C

Operating humidity
• 100% @ 25 В°C

תקנים

הורדות

ANT24-1201/B1 Outdoor Directional Antenna, 12 dBi

איורים

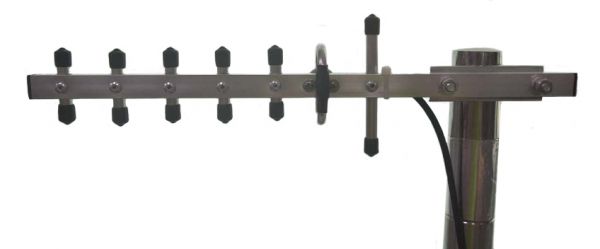

ANT24-1201/B

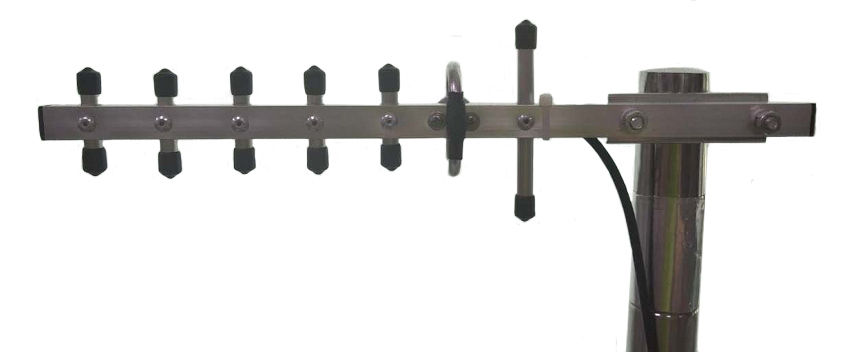

מראה מקדימה
