DMC-G10SC
100/1000Base-T to 1000Base-LX SC Single-mode Media Converter (10 km)
תאור
The DMC-G10SC is a media converter designed to convert a twisted-pair 100/1000Base-T Gigabit Ethernet connection to a single-mode fiber 1000Base-LX Gigabit Ethernet connection, that allows to extend a connection distance (up to 10 km) between two devices. This media converter is equipped with one RJ-45 for twisted-pair and one fiber optic SC port.
מאפיינים כללים
|
Hardware
|
|
|
Interfaces
|
• One 10/100/1000Base-T port
• One 1000Base-LX SC port
|
|
LEDs
|
• PWR
• Link/Act (SC)
• Link/Act (RJ-45)
|
|
Functionality
|
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3z 1000Base-LX
• IEEE 802.3x Flow Control in full-duplex mode
• Auto MDI/MDIX adjustment for copper port
• Link Fault Pass-through support for link status control
|
|
Maximum Packet Size
|
• 16 KB
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 70.5 x 93.5 x 26 mm
|
|
Weight
|
• 124 g
|
|
Environmental Conditions
|
|
|
Power Supply
|
• 5 V DC, 0.55 A power adapter
|
|
Max. Power Consumption
|
• 1.65 W
|
|
Wavelength
|
• 1310 nm
|
|
Length of Supported Fiber Optic Cable
|
• Up to 10 km
|
|
Temperature
|
• Operating: 0 to 55 °C
• Storage: -25 to 70 °C
|
|
Humidity
|
• 20% to 80% non-condensing
|
תקנים
הורדות
DMC-G10SC/A1A 100/1000Base-T to 1000Base-LX SC Single-mode Media Converter (10 km)
איורים

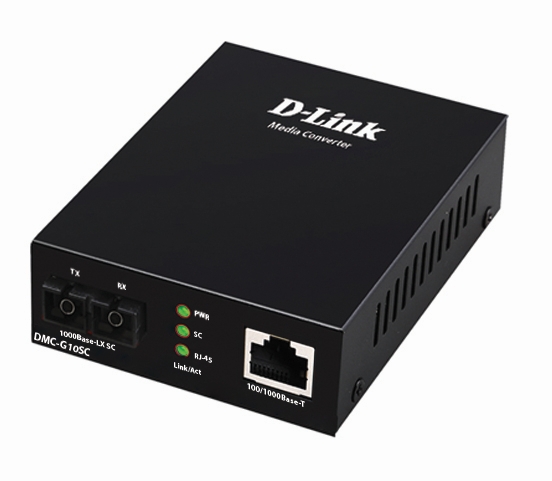

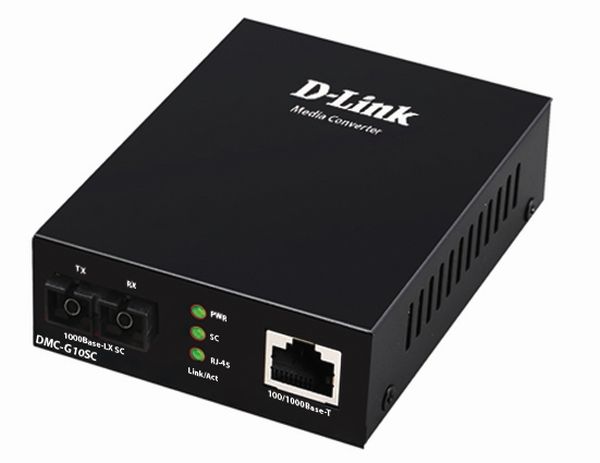

DMC-G10SC/A1
