DWM-321Dמיועד לפרויקטים

4G LTE Wireless AC1200 Router with Two Independent Modules for Four SIM Cards and GLONASS/GPS Support

תאור


The D-Link DWM-321D wireless router has two LTE Cat. 4 interfaces and provides 3G/4G connection with up to 150 Mbps downlink speed and up to 50 Mbps uplink speed. The DWM-321D is an in-vehicle hotspot device, which allows passengers to get Internet access with wireless devices. In addition, you can use the DWM-321D to organize meetings, seminars, conferences and other events out of the office. The router has four USIM/SIM slots allowing you to use USIM/SIM cards with the most efficient billing plan and backup mobile connection if one of the mobile operators malfunctions. Two 4G LTE modules allow the router to use two active USIM/SIM cards, providing automatic switching to redundant mobile connection if the main connection fails.

Versatile Usage
With WAN port and 3G/4G support, the DWM-321D allows you to backup wired connection with mobile connection and vice versa, and provide load balancing. Wide range of operating temperatures (-30 to 70 °C) allows you to use the DWM-321D in harsh environmental conditions.

GNSS Antenna*
You can connect the GNSS antenna* to the DWM-321D and track location of the vehicle and analyse its traffic route in details.

* The GNSS antenna is not included in the package contents.

מאפיינים כללים


Device Interfaces
• One 10/100/1000Base-T WAN/LAN port
• Two 10/100/1000Base-T LAN ports
• Four USIM/SIM slots
• Terminal block with PWR, GND, DI-1, DI-2, DO, IGN, Tx, Rx pins

LEDs
• GNSS
• PWR
• 2.4G
• 5G
• SIM A, SIM B (CELL 1)
• SIM A, SIM B (CELL 2)

Buttons
• Reset button

Antenna
• Four SMA Female connectors for LTE external antennas (3 dBi gain)
• One SMA Female connector for GNSS antenna*
• Two SMA Male connectors for Wi-Fi antennas (5 dBi gain)

4G LTE Module
• Two 4G LTE modules

Wireless Standards
• IEEE 802.11b/g/n/ac

Wireless Security
• WEP
• WPA/WPA2
• WPA/WPA2-PSK
• 802.1x authentication

Wireless Speed
• Up to 850 Mbps – 5 GHz
• Up to 300 Mbps – 2.4 GHz

Frequency Range
• LTE FDD: B1/B3/B5/B7/B8/B20
• LTE TDD: B38/B40/B41
• WCDMA: B1/B5/B8
• GSM: B3/B8

4G Connection Speed
• Downlink speed: 150 Mbps
• Uplink speed: 50 Mbps

Operation Modes
• AP
• Router
• WDS
• WDS AP

Router Features
• IPv4/v6 support
• VPN/VLAN
• RIP1/RIP2, OSPF, BGP Routing
• Dual-SIM configuration
• WAN failover

Security
• VPN**: IPSec, OpenVPN, PPTP/L2TP, GRE tunneling
• Firewall: SPI, IPS
• Access Control: Packet Filter, URL Blocking, MAC Filter, Content Filter, Application Filter
• Authentication: Captive Portal, MAC authentication

Management and monitoring
• Web UI
• CLI
• SNMP agent (SNMPv2/v3)

Physical Parameters
Dimensions (L x W x H)
• 160 x 125 x 47 mm

Power
• 9 to 36 V DC

Temperature
• Operating: -30 to 70°C
• Storage: -40 to 85°C

Humidity
• Operating: 10% to 95% non-condensing
• Storage: 0% to 95% non-condensing

Certifications
• RoHS

* The GNSS antenna is not included in the package contents.
** The functionality will be available in future firmware versions (the OpenVPN, PPTP/L2TP, GRE tunneling is absent in version 3.0.0).


תקנים

הורדות

DWM-321D  4G LTE Wireless AC1200 Router with Two Independent Modules for Four SIM Cards and GLONASS/GPS Support

איורים

DWM-321D/A

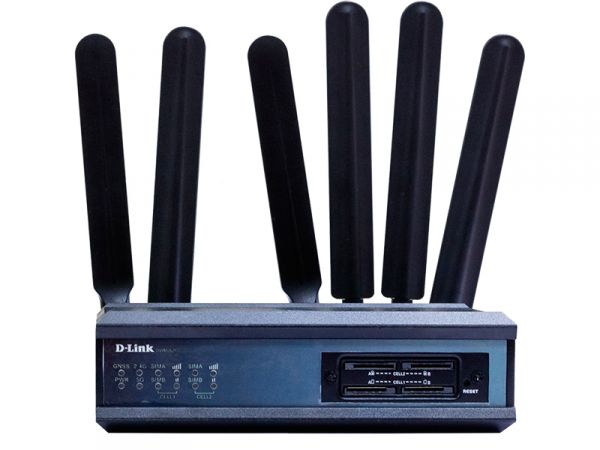

מראה מקדימה
