DIR-843EOL

AC1200 Wave 2 MU-MIMO Wi-Fi Gigabit Router

תאור

LAN/WAN Conversion, WAN Failover
You can use any Ethernet port of the router as LAN or WAN port. The new-generation firmware supports assigning several WAN ports, for example, in order to configure the primary and backup WAN connection of different ISPs.

Wireless Interface
Using the DIR-843 device, you are able to quickly create a high-speed wireless network at home or in your office, which lets computers and mobile devices access the Internet virtually anywhere (within the operational range of your wireless network). Simultaneous activity of 2.4GHz band and 5GHz band allows performing a wide range of tasks. The router can operate as a base station for connecting wireless devices of the standards 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac (at the wireless connection rate up to 1167Mbps1).

Secure Wireless Connection
The router supports multiple functions for the wireless interface: several security standards (WEP, WPA/WPA2/WPA3), MAC address filtering, WPS, WMM.

Advanced Capabilities of Wireless Network
Multi-user MIMO technology allows to distribute the router's resources to let multiple wireless clients use the Wi-Fi network efficiently, keeping high rates for HD media streaming, lag-free gaming, and fast transfer of large files.
Transmit Beamforming technology allows to flexibly change the antennas' radiation pattern and to redistribute the signal directly to wireless devices connected to the router.
Smart adjustment of Wi-Fi clients is useful for networks based on several D-Link access points or routers – when the smart adjustment function is configured on each of them, a client always connects to the access point (router) with the highest signal level.
Support of guest Wi-Fi network allows you to create a separate wireless network with individual security settings. Devices connected to the guest network will be able to access the Internet, but will be isolated from the devices and resources of the router's LAN.

3-port Switch
The built-in 3-port switch enables you to connect Ethernet-enabled computers, game consoles, and other devices to your network.

Security
The wireless router DIR-843 includes a built-in firewall. The advanced security functions minimize threats of hacker attacks, prevent unwanted intrusions to your network, and block access to unwanted websites for users of your LAN.
The SSH protocol support provides more secure remote configuration and management of the router due to encryption of all transmitted traffic, including passwords.
In addition, the router supports IPsec and allows to create secure VPN tunnels. Support of the IKEv2 protocol allows to provide simplified message exchange and use asymmetric authentication engine upon configuration of an IPsec tunnel.
Built-in Yandex.DNS service protects against malicious and fraudulent web sites and helps to block access to adult content on children's devices.
The router also supports the SkyDNS web content filtering service, which provides more settings and opportunities for safer Internet experience for home users of all ages and for professional activities of corporate users.
Now the schedules are also implemented; they can be applied to the rules and settings of the firewall and used to reboot the router at the specified time or every specified time period and to enable/disable the wireless network and the Wi-Fi filter.
The new ad blocking function effectively blocks advertisements which appear during web surfing.

Easy configuration and update
You can configure the settings of the wireless router DIR-843 via the user-friendly web-based interface (the interface is available in several languages).
The configuration wizard allows you to quickly switch DIR-843 to one of the following modes: router (for connection to a wired or wireless ISP), access point, repeater, or client, and then configure all needed setting for operation in the selected mode in several simple steps.
Also DIR-843 supports configuration and management via mobile application for Android smartphones.
You can simply update the firmware: the router itself finds approved firmware on D-Link update server and notifies when ready to install it.

1Up to 300Mbps for 2.4GHz and up to 867Mbps for 5GHz.

מאפיינים כללים

Hardware
Processor
• MT7621DAT (880MHz)
RAM
• 128MB, DDR3, built in processor
Flash
• 128MB, NAND
Interfaces
• 10/100/1000BASE-T WAN port
• 3 10/100/1000BASE-T LAN ports
LEDs
• Power
• WAN
• 3 LAN LEDs
• WLAN 2.4G
• WLAN 5G
• WPS
Buttons
• WPS/RST button to restore factory default settings and set up wireless connection
Antenna
• Four external non-detachable antennas (5dBi gain)
MIMO
• 2 x 2, MU-MIMO
Power connector
• Power input connector (DC)
Software
WAN connection types
• PPPoE
• IPv6 PPPoE
• PPPoE Dual Stack
• Static IPv4 / Dynamic IPv4
• Static IPv6 / Dynamic IPv6
• PPPoE + Static IP (PPPoE Dual Access)
• PPPoE + Dynamic IP (PPPoE Dual Access)
• PPTP/L2TP + Static IP
• PPTP/L2TP + Dynamic IP
• L2TP Dual Stack
• IPIP6 in DSLite mode
• 6in4
• 6to4
• 6rd
Network functions
• DHCP server/relay
• Advanced configuration of built-in DHCP server
• Stateful/Stateless mode for IPv6 address assignment, IPv6 prefix delegation
• Automatic obtainment of LAN IP address (for access point/repeater/client modes)
• DNS relay
• Dynamic DNS
• Static IPv4/IPv6 routing
• IGMP/MLD Proxy
• RIP
• Support of UPnP
• Support of VLAN
• WAN ping respond
• Support of SIP ALG
• Support of RTSP
• WAN failover
• LAN/WAN conversion
• Multi-WAN support
• Autonegotiation of speed, duplex mode, and flow control / Manual speed and duplex mode setup for each Ethernet port
• Built-in UDPXY application
• Equal load distribution while using several WAN connections (traffic balancing)
• Support of VRRP
• Port mirroring
• Wake-on-LAN support
Firewall functions
• Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)
• IPv4/IPv6 filter
• MAC filter
• URL filter
• Ad blocking function
• DMZ
• Virtual servers
• Built-in Yandex.DNS web content filtering service
• Built-in SkyDNS web content filtering service
VPN
• IPsec/PPTP/L2TP/PPPoE pass-through
• PPTP/L2TP servers
• PPTP/L2TP tunnels
• L2TP over IPsec
• GRE/EoGRE/EoIP/IPIP tunnels
• IPsec tunnels
Transport/Tunnel modeIKEv1/IKEv2 supportDES encryptionNAT TraversalSupport of DPD (Keep-alive for VPN tunnels)
Management and monitoring
• Local and remote access to settings through SSH/TELNET/WEB (HTTP/HTTPS)
• Multilingual web-based interface for configuration and management
• Support of D-Link Assistant application for Android smartphones
• Notification on connection problems and auto redirect to settings
• Firmware update via web-based interface
• Automatic notification on new firmware version
• Saving/restoring configuration to/from file
• Support of logging to remote host
• Automatic synchronization of system time with NTP server and manual time/date setup
• Ping utility
• Traceroute utility
• TR-069 client
• SNMP agent
• Schedules for rules and settings of firewall, automatic reboot, and enabling/disabling wireless network and Wi-Fi filter
• Automatic upload of configuration file from ISP's server (Auto Provision)
• Configuration of action for hardware buttons
Wireless Module Parameters
Standards
• IEEE 802.11ac Wave 2
• IEEE 802.11a/b/g/n
• IEEE 802.11k/v
Frequency range

The frequency range depends upon the radio frequency regulations applied in your country
• 2400 ~ 2483.5MHz
• 5150 ~ 5350MHz
• 5650 ~ 5850MHz
Wireless connection security
• WEP
• WPA/WPA2 (Personal/Enterprise)
• WPA3 (Personal)
• МАС filter
• WPS (PBC/PIN)
Advanced functions
• Support of client mode
• WMM (Wi-Fi QoS)
• Information on connected Wi-Fi clients
• Advanced settings
• Smart adjustment of Wi-Fi clients
• Guest Wi-Fi / support of MBSSID
• Periodic scan of channels, automatic switch to least loaded channel
• Support of 5GHz TX Beamforming
• Autonegotiation of channel bandwidth in accordance with environment conditions (20/40 Coexistence)
• Support of STBC
• CoovaChilli authentication portal
Wireless connection rate
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54Mbps
• IEEE 802.11b: 1, 2, 5.5, and 11Mbps
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps
• IEEE 802.11n (2.4GHz): from 6.5 to 300Mbps (MCS0–MCS15)
• IEEE 802.11n (5GHz): from 6.5 to 300Mbps (from MCS0 to MCS15)
• IEEE 802.11ac (5GHz): from 6.5 to 867Mbps (from MCS0 to MCS9)
Transmitter output power
The maximum value of the transmitter output power depends upon the radio frequency regulations applied in your country
• 802.11a (typical at room temperature 25 °C)
15dBm at 6, 9, 12, 18, 24, 36, 48, 54Mbps
• 802.11b (typical at room temperature 25 °C)
15dBm at 1, 2, 5.5, 11Mbps
• 802.11g (typical at room temperature 25 °C)
15dBm at 6, 9, 12, 18, 24, 36, 48, 54Mbps
• 802.11n (typical at room temperature 25 °C)
2.4GHz, HT2015dBm at MCS0~72.4GHz, HT4015dBm at MCS0~75GHz, HT2015dBm at MCS0~75GHz, HT4015dBm at MCS0~7
• 802.11ac (typical at room temperature 25 °C)
VHT2015dBm at MCS0~8VHT4015dBm at MCS0~9VHT8015dBm at MCS0~9
Receiver sensitivity
• 802.11a (typical at PER < 10% (1000-byte PDUs) at room temperature 25 °C)
-90dBm at 6Mbps-88dBm at 9Mbps-86dBm at 12Mbps-85dBm at 18Mbps-82dBm at 24Mbps-78dBm at 36Mbps-74dBm at 48Mbps-73dBm at 54Mbps
• 802.11b (typical at PER = 8% (1000-byte PDUs) at room temperature 25 °C)
-93dBm at 1Mbps-90dBm at 2Mbps-88dBm at 5.5Mbps-86dBm at 11Mbps
• 802.11g (typical at PER < 10% (1000-byte PDUs) at room temperature 25 °C)
-90dBm at 6Mbps-84dBm at 9Mbps-82dBm at 12Mbps-80dBm at 18Mbps-77dBm at 24Mbps-75dBm at 36Mbps-74dBm at 48Mbps-73dBm at 54Mbps

• 802.11n (typical at PER = 10% (1000-byte PDUs) at room temperature 25°C)
2.4GHz, HT20-90dBm at MCS0-82dBm at MCS1-80dBm at MCS2-77dBm at MCS3-74dBm at MCS4-73dBm at MCS5-72dBm at MCS6-71dBm at MCS72.4GHz, HT40-88dBm at MCS0-79dBm at MCS1-77dBm at MCS2-74dBm at MCS3-71dBm at MCS4-70dBm at MCS5-69dBm at MCS6-68dBm at MCS75GHz, HT20-90dBm at MCS0-86dBm at MCS1-84dBm at MCS2-81dBm at MCS3-77dBm at MCS4-73dBm at MCS5-72dBm at MCS6-71dBm at MCS75GHz, HT40-87dBm at MCS0-84dBm at MCS1-82dBm at MCS2-79dBm at MCS3-75dBm at MCS4-71dBm at MCS5-70dBm at MCS6-69dBm at MCS7
• 802.11ac (typical at PER = 10% (1000-byte PDUs) at room temperature 25 °C)
VHT20
-90dBm at MCS0
-86dBm at MCS1
-84dBm at MCS2
-81dBm at MCS3
-77dBm at MCS4
-73dBm at MCS5
-72dBm at MCS6
-71dBm at MCS7
-66dBm at MCS8
VHT40
-87dBm at MCS0
-84dBm at MCS1
-82dBm at MCS2
-79dBm at MCS3
-75dBm at MCS4
-71dBm at MCS5
-70dBm at MCS6
-69dBm at MCS7
-64dBm at MCS8
-62dBm at MCS9
VHT80
-83dBm at MCS0
-81dBm at MCS1
-78dBm at MCS2
-75dBm at MCS3
-71dBm at MCS4
-67dBm at MCS5
-66dBm at MCS6
-65dBm at MCS7
-60dBm at MCS8
-58dBm at MCS9
Modulation schemes
• 802.11a: BPSK, QPSK, 16QAM, 64QAM with OFDM
• 802.11b: DQPSK, DBPSK, DSSS, CCK
• 802.11g: BPSK, QPSK, 16QAM, 64QAM with OFDM
• 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
• 802.11ac: BPSK, QPSK, 16QAM, 64QAM, up to 256QAM with OFDM
Physical Parameters
Dimensions (L x W x H)
• 190 x 120 x 30 mm (7.48 x 4.72 x 1.18 in)
Operating Environment
Power
• Output: 12V DC, 1A
Temperature
• Operating: from 0 to 40 °C
• Storage: from -20 to 65 °C
Humidity
• Operating: from 10% to 90% (non-condensing)
• Storage: from 5% to 95% (non-condensing)
Delivery Package
• Router DIR-843
• Power adapter DC 12V/1A
• Ethernet cable
• “Quick Installation Guide” (brochure)

תקנים

הורדות

DIR-843/RU/B1A
AC1200 Wave 2 MU-MIMO Wi-Fi Gigabit Router

איורים

DIR-843/B1

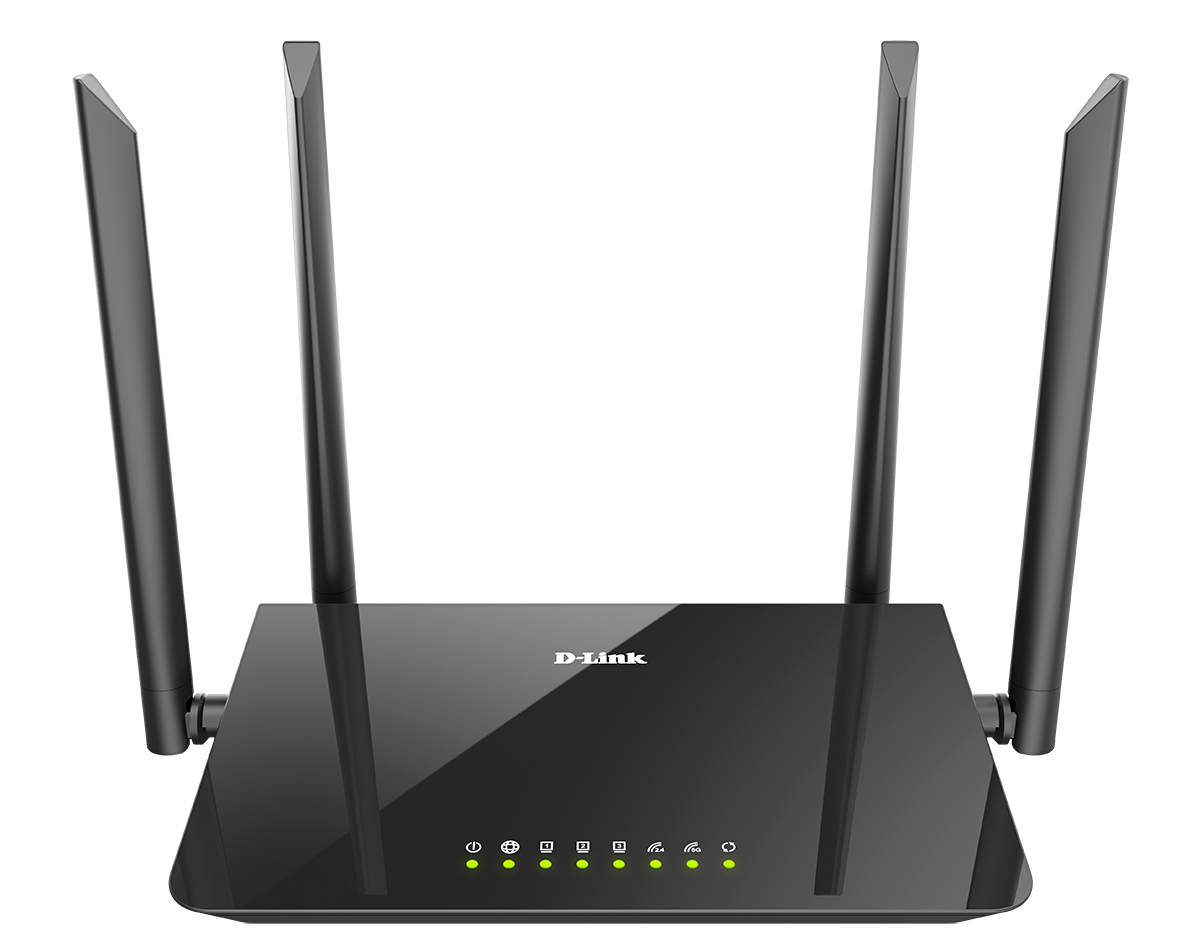

מראה מקדימה

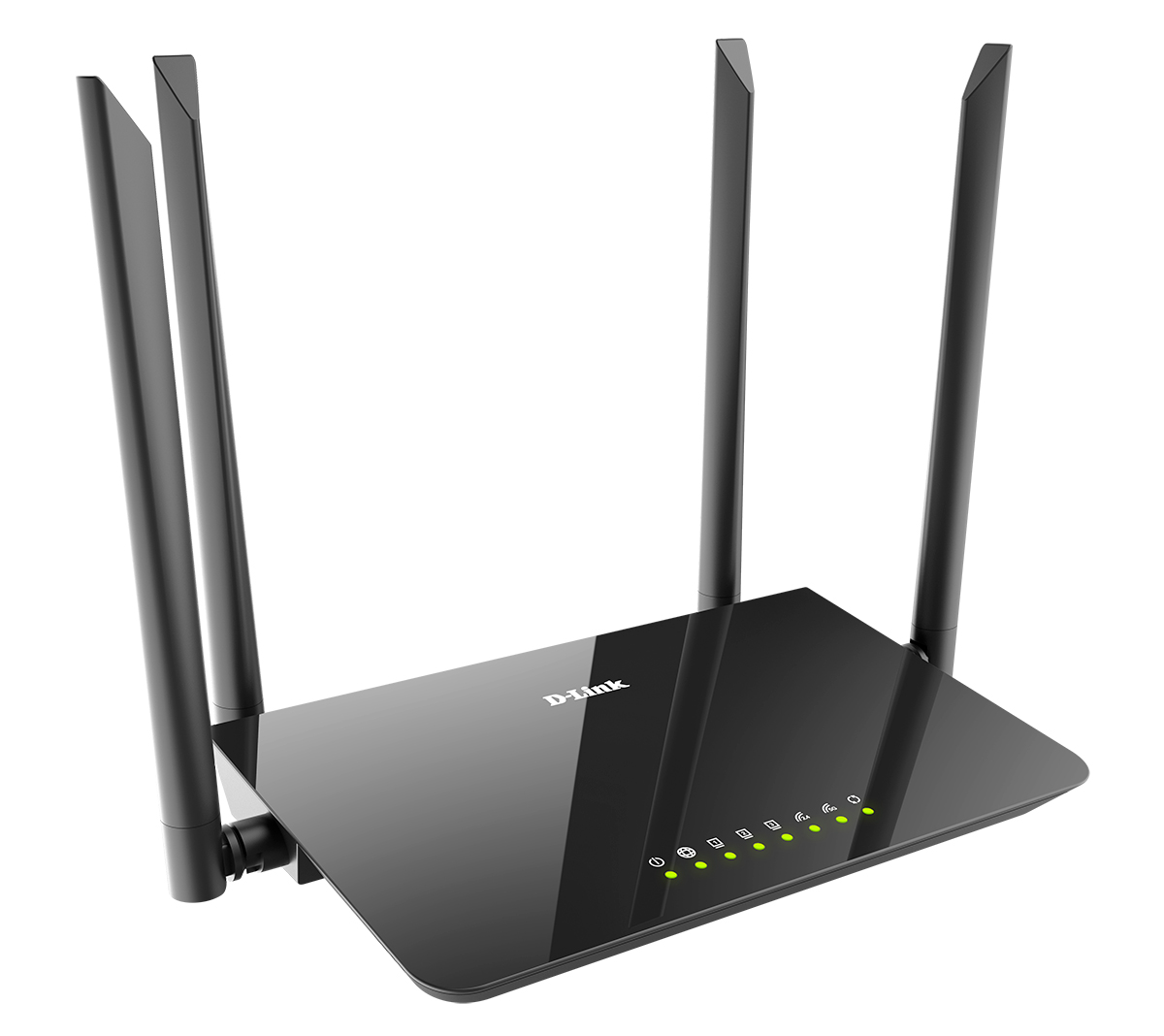

מראה מימין

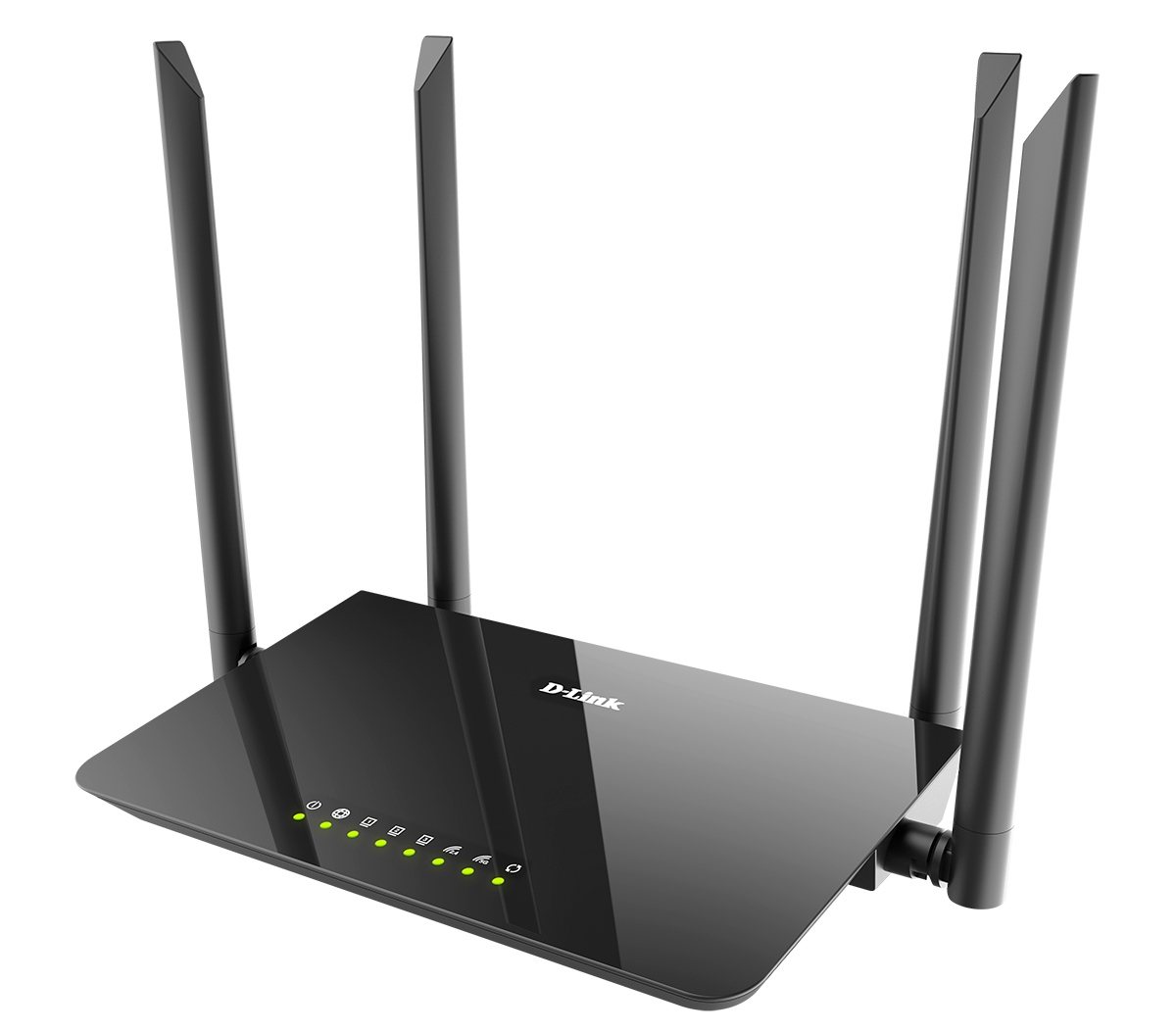

מראה משמאל

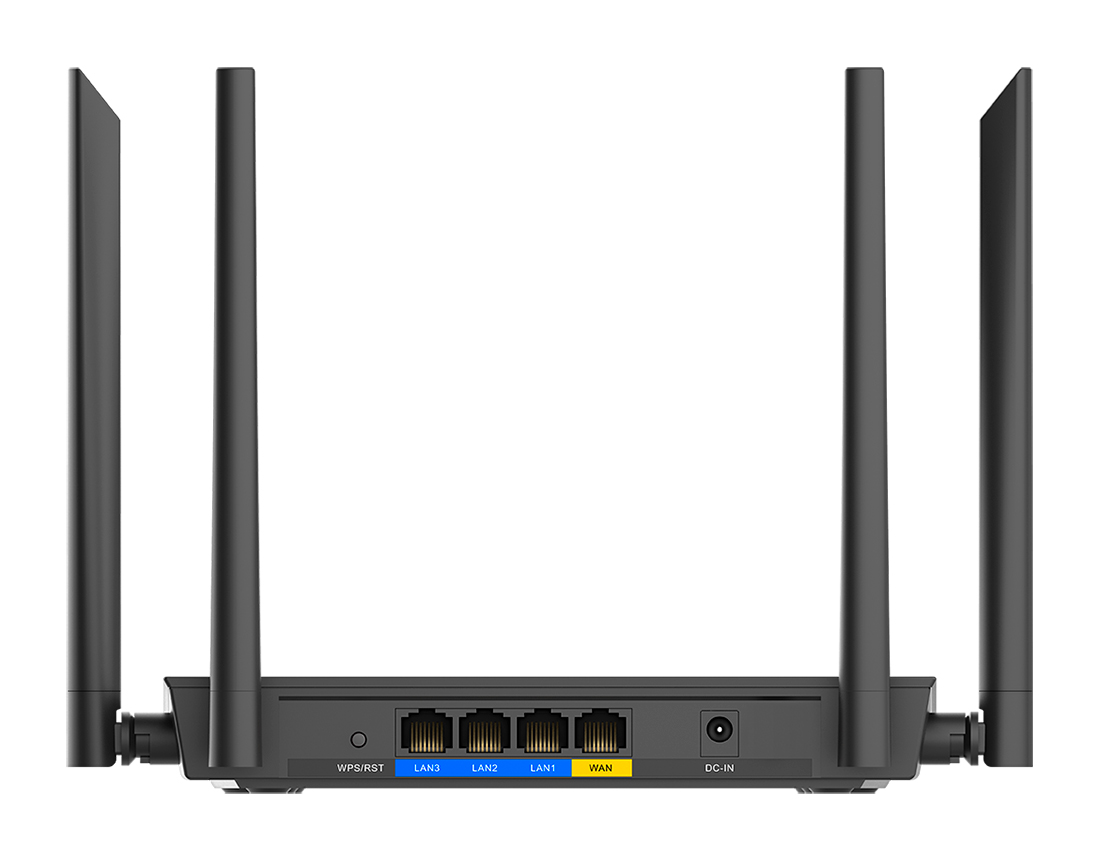

מראה מאחורה
