DSR-500ACEOL EOS

נתב עסקי אלחוטי בתקן AC עד 1300Mbps עם 2 כניסות WAN ו 4 כניסות LAN ג'יגהביט
Recommended

תאור

Unified Services Routers D-Link DSR series are high-performance solutions that protect networks and designed to meet the growing needs of small and medium-sized businesses. Support latest standard IEEE 802.11ac, implemented in the router DSR-500AC, it achieves the same performance as in wired networks, but with fewer constraints. Through the use of bandwidths in the range of 5 GHz DSR-500AC provides a higher data rate for clients that support standard IEEE 802.11ac.

Features integrated management
Router DSR-500AC is equipped with two WAN-ports of Gigabit Ethernet. Application load balancing allows you to distribute outbound traffic between two WAN-interfaces and optimize system performance, thus providing, uninterrupted operation of the network. The second WAN-port can be configured as a DMZ-port that allows you to isolate servers on the LAN. Router DSR-500AC supports the possibility of accessing the Internet using a 3G USB-modem1 or 4G2. Load balancing can be carried out for the 3G / 4G-connections, providing an additional level of redundancy for mission-critical applications and data backup.

Web-based authentication
Adaptive portal makes it easy to pass authentication and authorization for both employees and guests. Users can be authenticated using the local database, RADIUS-server, LDAP, Microsoft Windows Active Directory, NT domain server and POP3. At the same time, you can set a maximum of four servers.

Advanced VPN functionality
A virtual private network (VPN) provides mobile users and branch offices a secure communications channel to connect to the corporate network. DSR-500AC supports tunnels Generic Routing Encapsulation (GRE), providing mobile users with remote access to a central corporate database. When you create a Site-to-site VPN-tunnels used protocols IP Security (IPSec), Point-to-Point Tunneling Protocol (PPTP) or Layer 2 Tunneling Protocol (L2TP), which simplifies the process of connecting remote users and branch offices through encrypted virtual links .

Web-content filtering
Web-content filtering helps administrators monitor, manage and control employee usage of and access to the Internet. Static Web-content filtering allows you to remove dangerous objects, such as Java-applets, objects, ActiveX, files cookie, or block the URL-address keyword. Stateful Web-content requires the purchase of a license allows administrators to filter the contents of the list of categories. DSR-500AC supports multiple global index servers with millions of URL-addresses and information in real time on the Web-site, allowing you to increase productivity and maximize service availability.

מאפיינים כללים

Interfaces

• Two WAN port 10/100 / 1000Base-T

• Four LAN ports 10/100 / 1000Base-T

• 802.11a / b / g / n / ac

• One USB 2.0 port

• Console port with RJ-45


Indicators

• Power / Status

• WLAN 2.4GHz / 5GHz

• USB

• LAN / WAN (Speed ​​/ Status)


Buttons

• Reset button


Antenna

• Two removable omnidirectional antenna with a gain of 2 dBi


Power connector

• Power connector (DC)


Performance

Bandwidth Firewall

• 950 Mbit / s

Bandwidth VPN

• 200 Mbit / s

Number of concurrent sessions

• 50,000

Number of new sessions per second

• 500

Firewall Policy

• 600


Wireless

Standards

• IEEE 802.11a / b / g / n / ac


Frequency Range

• 802.11b / g / n: from 2.4 GHz to 2.483 GHz

• 802.11a / n / ac: from 5.18 GHz to 5.825 GHz


Wireless Security

• Wired Equivalent Privacy (WEP)

• Wi-Fi Protected Setup (WPS)

• Wi-Fi Protected Access - Personal (WPA-PSK)

• Wi-Fi Protected Access - Enterprise (WPA-EAP)

• Wi-Fi Protected Access version 2 - Personal (WPA-PSK)

• Wi-Fi Protected Access version 2 - Enterprise (WPA-EAP)

• Multiple SSID of the wireless network (SSID)

• Service Set Identifier (SSID) to VLAN Mapping


Wireless speed

• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbit / s

• IEEE 802.11b: 1, 2, 5.5 and 11 Mbit / s

• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbit / s

• IEEE 802.11n (2,4 GHz) of 6.5 to 300 Mbit / s

• IEEE 802.11n (5 GHz): 6.5 to 150 Mbit / s

• IEEE 802.11ac: from 7.2 to 1300 Mbit / s


Transmitter output power

Maximum transmit power will vary according to the rules of radio frequency regulation in your country.

• IEEE 802.11a:

  14 dBm at 6 ~ 54 Mbit / s

• IEEE 802.11b:

  18 dBm at 1 ~ 11 Mbit / s

• IEEE 802.11g:

  11 dBm at 6 ~ 54 Mbit / s

• IEEE 802.11n:

  10 ~ 6 dBm at 300 Mbit / s (2.4 GHz)

  14 ~ 6 dBm at 150 Mbit / s (5 GHz)

• IEEE 802.11ac:

  11 dBm at 7.2 ~ 1300 Mbit / s


Receiver Sensitivity

• IEEE 802.11a:

  -82 DBm at 6 Mbit / s

  -81 DBm at 9 Mbit / s

  -79 DBm at 12 Mbits / s

  -77 DBm at 18 Mbit / s

  -74 DBm at 24 Mbits / s

  -70 DBm at 36 Mbit / s

  -66 DBm at 48 Mbit / s

  -65 DBm at 54 Mbit / s

• IEEE 802.11b:

  -89 DBm at 2 Mbit / s

  -83 DBm at 11 Mbit / s

• IEEE 802.11g:

  -82 DBm at 6 Mbit / s

  -81 DBm at 9 Mbit / s

  -79 DBm at 12 Mbits / s

  -77 DBm at 18 Mbit / s

  -74 DBm at 24 Mbits / s

  -70 DBm at 36 Mbit / s

  -66 DBm at 48 Mbit / s

  -65 DBm at 54 Mbit / s

• IEEE 802.11n:

2.4 GHz / HT-20:

-82 DBm at MCS0 / 8/16

-79 DBm at MCS1 / 9/17

-77 DBm at MCS2 / 10/18

-74 DBm at MCS3 / 11/19

MCS4 at -70 dBm / 12/20

-66 DBm at MCS5 / 13/21

-65 DBm at MCS6 / 14/22

-64 DBm at MCS7 / 15/23

2.4 GHz / HT-40:

-79 DBm at MCS0 / 8/16

-76 DBm at MCS1 / 9/17

-74 DBm at MCS2 / 10/18

-71 DBm at MCS3 / 11/19

MCS4 at -67 dBm / 12/20

-63 DBm at MCS5 / 13/21

-62 DBm at MCS6 / 14/22

-61 DBm at MCS7 / 15/23

5GHz / HT-20:

-82 DBm at MCS0

-79 DBm at MCS1

-77 DBm at MCS2

-74 DBm at MCS3

-70 DBm at MCS4

-66 DBm at MCS5

-65 DBm at MCS6

-64 DBm at MCS7

5GHz / HT-40:

-79 DBm at MCS0

-76 DBm at MCS1

-74 DBm at MCS2

-71 DBm at MCS3

-67 DBm at MCS4

-63 DBm at MCS5

-62 DBm at MCS6

-61 DBm at MCS7

• IEEE 802.11ac:

VHT-20:

-82 DBm at MCS0

-79 DBm at MCS1

-77 DBm at MCS2

-74 DBm at MCS3

-70 DBm at MCS4

-66 DBm at MCS5

-65 DBm at MCS6

-64 DBm at MCS7

-59 DBm at MCS8

-57 DBm at MCS9

VHT-40:

-79 DBm at MCS0

-76 DBm at MCS1

-74 DBm at MCS2

-71 DBm at MCS3

-67 DBm at MCS4

-63 DBm at MCS5

-62 DBm at MCS6

-61 DBm at MCS7

-56 DBm at MCS8

-54 DBm at MCS9

VHT-80:

-76 DBm at MCS0

-73 DBm at MCS1

-71 DBm at MCS2

-68 DBm at MCS3

-64 DBm at MCS4

-60 DBm at MCS5

-59 DBm at MCS6

-58 DBm at MCS7

-53 DBm at MCS8

-51 DBm at MCS9


Type of Internet connection

• Static / Dynamic IP-address

• PPPoE / L2TP / PPTP

• Multiple PPPoE

Firewall

• Static route

• Dynamic Route: RIP v1 / v2, OSPF, OSPFv3

• Dynamic DNS

• Inter-VLAN Routing

• NAT, PAT

• Web-content filtering, static URL-address, keywords, Dynamic WCF (license required)

• Intrusion Prevention System (IPS): package signatures, the supplied software

• Authentication: internal database, RADIUS, POP3, LDAP, AD, NT Domain


Network Features

• DHCP Server / Client

• DHCP Relay

• IEEE 802.11q VLAN

• VLAN (port-based)

• IP Multicast: IGMP Proxy, IGMP Snooping

• IPv6

• Auto switch between WAN-connections after a failure (Route Failover)

• Load Balancing (Outbound Load Balancing)

• Redundancy 3G / 4G2


Virtual Private Network (VPN)

• VPN-tunnels: 95

• IPSec-tunnel: 35

• PPTP / L2TP-tunnels: 25

• GRE-tunnels: 15

• Encryption methods: DES, NULL

• Server IPSec / PPTP / L2TP

• IPSec NAT Traversal

• Detection of non-performing nodes

• IP Encapsulating Security Payload (ESP)

• IP Authentication Header (AH)

• VPN Tunnel Keep Alive

• Hub and Spoke


Bandwidth Management

• Management of the maximum bandwidth

• Manage bandwidth priority:

  - QoS Port-based

  - Class 3


System Management

• Web-interface

• Command line

• SNMP v1, v2c, v3

תקנים

הורדות

איורים

DSR-500ACA1

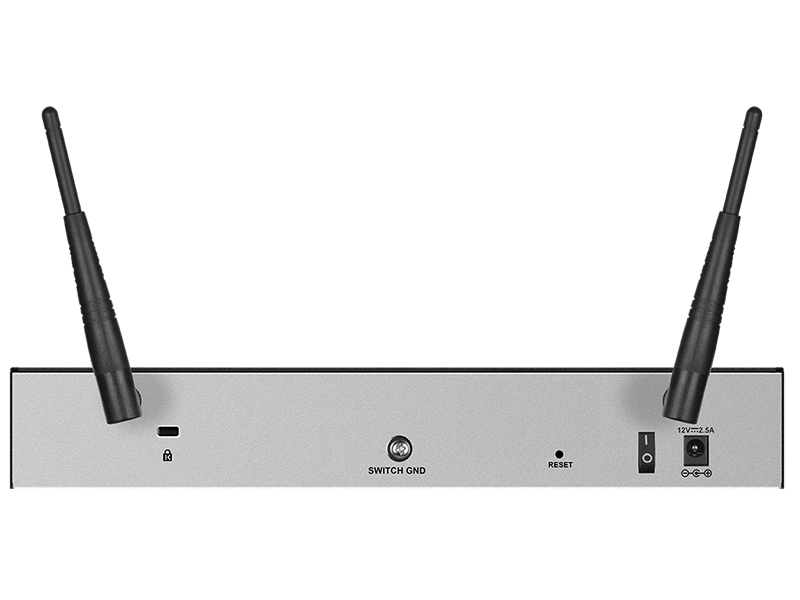

מראה מאחורה

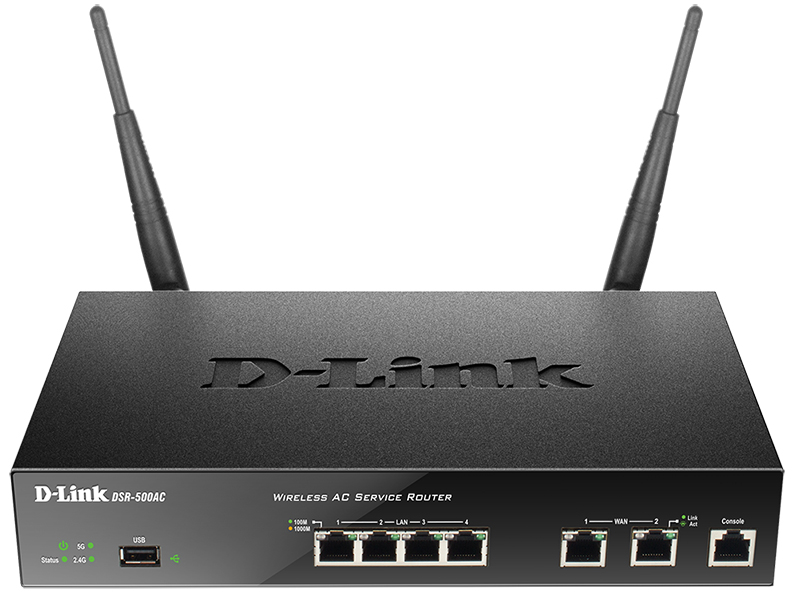

מראה מקדימה

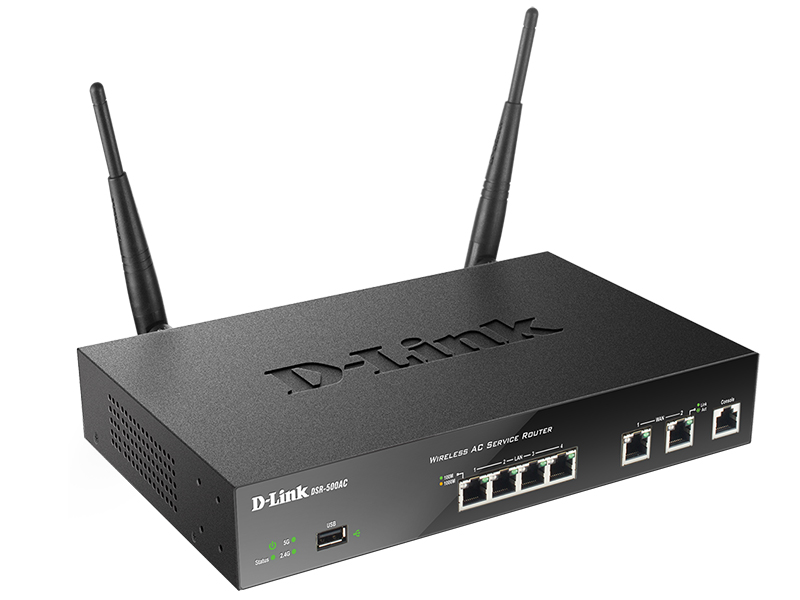

מראה מימין
