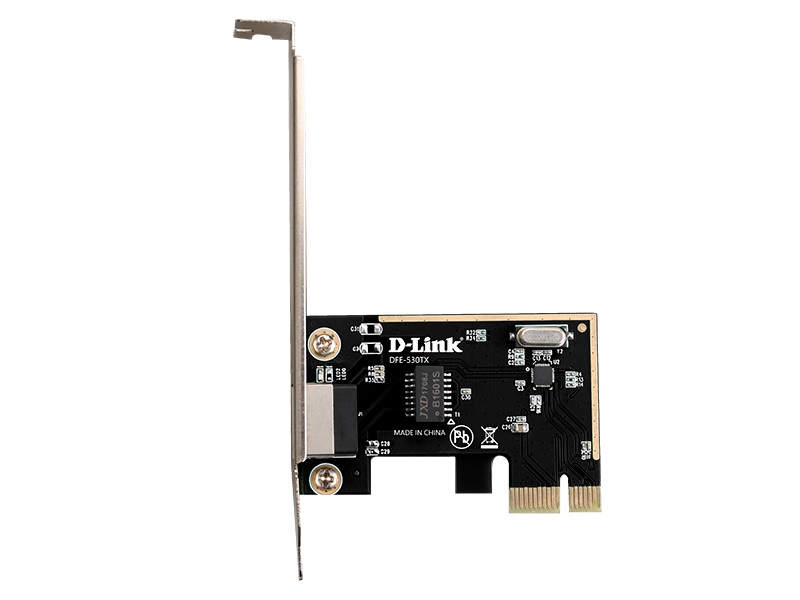

DFE-530TX
PCI Express Fast Ethernet Network Adapter
תאור
The DFE-530TX PCI Express Fast Ethernet Network Adapter intended for desktop PCs, workstations and servers offers increased bandwidth and connection reliability than standard PCI network cards and supports data rates of up to 200 Mbps in full-duplex mode.
Wake-on-LAN
The DFE-530TX supports Wake-on-LAN (WOL) function, allowing a powered off computer to be powered on from a remote station. This function allows the administrator to send wake-up signals to a computer.
Power Saving
The DFE-530TX supports power saving mode in your network. This adapter is compliant with IEEE 802.3az Energy-Efficient Ethernet and reduces the power consumption when network utilization is low.
מאפיינים כללים
Chipset
• RTL8105
Interfaces
• One 10/100Base-TX port with RJ-45
Installation Slot
• PCI Express x1
LEDs
• 10/100 (Link/Activity)
Network Cables
• Ethernet: UTP cat. 3 or above (100 m max.)
• Fast Ethernet: UTP cat. 5 (100 m max.)
Standards and Functions
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• 802.3x Flow Control
• Auto MDI/MDIX adjustment
• IEEE 802.3az Energy-Efficient Ethernet
• Wake-on-LAN
Duplex Mode
• Full/Half-duplex for 10/100 Mbps
Protocol
• CSMA/CD
OS Support
• Microsoft Windows 10 (32/64), 8/8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000
• Microsoft Windows Server 2012, 2008 R2, 2003 (32/64)
• Mac OS 10.x
• Linux 2.4.x and later
Physical Parameters
Dimensions (L x W)
• 65.3 x 44.2 mm
Bar Height
• 16.3 mm
Temperature
• Operating: 0 to 70 °C
• Storage: 0 to 80 °C
Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 90% non-condensing
