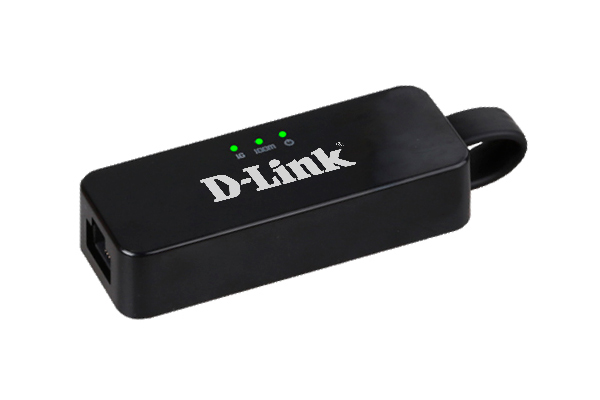

DUB-1312
USB 3.0 to Gigabit Ethernet Network Adapter
תאור
The DUB-1312 USB 3.0 to Gigabit Ethernet network adapter provides Gigabit Ethernet connectivity for desktop and portable computers. Just plug the adapter into your computer’s USB port, and you will be able to connect a switch or a router to your computer using Ethernet cable.
Gigabit Ethernet Connectivity
The DUB-1312 network adapter can be plugged into any available USB port on your computer to enable you to connect to an Ethernet network. This adapter provides network connectivity even for the computers, that don’t have RJ-45 port. The DUB-1312 eliminates the need to open your computer to install a network card, and it also lets you keep your notebook’s expansion slot free for other uses.
Easy to Install and Use
The DUB-1312 network adapter connects to your computer’s USB port and is ready to run almost as soon as it’s plugged in. There is no need to change any confguration settings on your computer, just install the device drivers.
Energy Saving
The DUB-1312 supports an energy-saving suspend and resume function to minimize power consumption, which is especially useful for notebook users as it helps conserve battery life, allowing them to use their notebooks for a longer period. Power is provided directly by the USB bus, eliminating the need for an external AC power adapter.
מאפיינים כללים
Interfaces
• RJ-45 Ethernet port (10/100/1000 Mbps)
• USB Type-A connector
LEDs
• Power
• 1G
• 100M
Standards and Functions
• USB Specification Version 3.0
• USB Specification Version 2.0
• USB Specification Version 1.1
• USB Specification Version 1.0
• OHCI (Open Host Controller Interface)
• EHCI (Enhanced Host Controller Interface)
• IEEE 802.3 Ethernet
• IEEE 802.3u 100Base-T compatible
• IEEE 802.3az Energy Efficiency Ethernet
• Auto MDI/MDIX
• IEEE 802.3x Flow Control in full duplex mode
• Back pressure in half duplex mode
• Jumbo frame
• Wake-on-LAN
Power Management
• Energy Saving functon reduces power usage during idle or light traffic periods
Minimum System Requirements
• Operating system: Microsoft Windows 7/8.x/10, Mac OS 10.6 to 10.14, Linux
Physical Parameters
Dimensions (L x W x H)
• 72 х 27 х 16.5 mm
Weight
• 20 g
Power Supply
• From USB bus
Power Consumption
• 165 mA, 5 В V DC
Temperature
• Operating: 0 to 55 °C
• Storage: 0 to 80 °C
Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 90% non-condensing
