DVG-N5402Gמיועד לפרויקטים
תאור
Voice connection
VoIP-Router is equipped with two FXS-ports that allow you to connect analog telephones to make calls over the Internet, and one PSTN-port (lifeline) for connection to the local telephone network.
USB-port
The router is equipped with a USB-port for connection of USB-modem with which you can quickly connect to the Internet. In addition, you can connect to USB-port router USB-drive to be used as a network drive, or printer.
Wireless Interface
Using a Wireless Router DVG-N5402G, you can quickly organize a high-speed wireless network at home or in the office, providing Internet access to computers and mobile devices, virtually anywhere (in the range of a wireless network). A router can act as a base station to connect to a wireless network devices operating on the standards 802.11b, 802.11g and 802.11n (at the speed of the wireless connection of up to 300 Mbit / s).
The router provides many functions for the wireless interface. The device supports several security standards (WEP, WPA / WPA2), filtering devices to be connected on the MAC-address, and allows the use of the WPS and WMM.
Furthermore, the device is equipped with a button for switching off / on Wi-Fi-network. In case of need, such as leaving your home, you can turn off the router's wireless network at the touch of a button, and the devices connected to the LAN-port router will remain in the network.
Security
Wireless Router DVG-N5402G has a built-in firewall. Enhanced security functions minimize threats of hacker attacks, prevent unwanted intrusions into your network and access to unwanted websites for users of your LAN.
Easy setup and update
To set up a wireless router DVG-N5402G using the user-friendly web-interface (available in several languages).
Now you can easily update the firmware - the router itself is validated on the server version of the software update D-Link and notifies the user ready to install it.
מאפיינים כללים

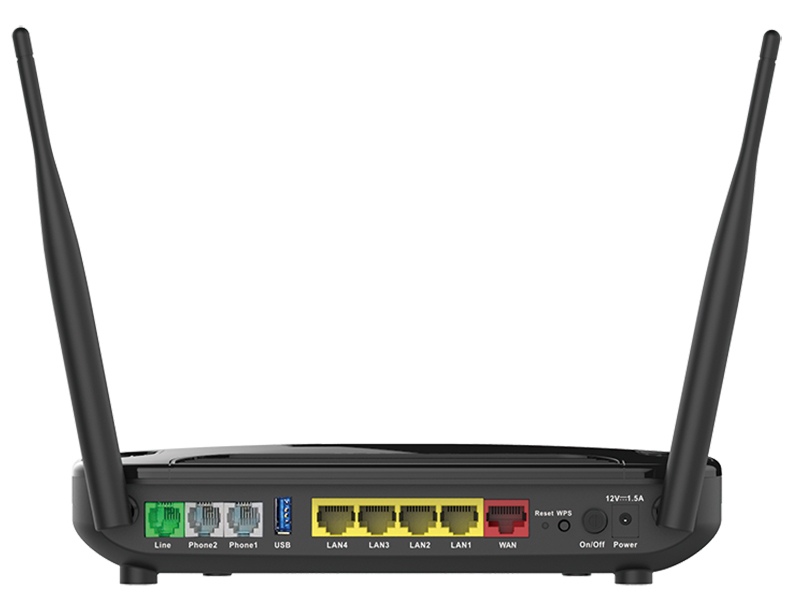

Interfaces
• WAN port 10/100 / 1000BASE-T
• 4 LAN ports 10/100 / 1000BASE-T
• 2 FXS ports with RJ-11
• 1 PSTN port with RJ-11 (lifeline)
• USB 2.0 port

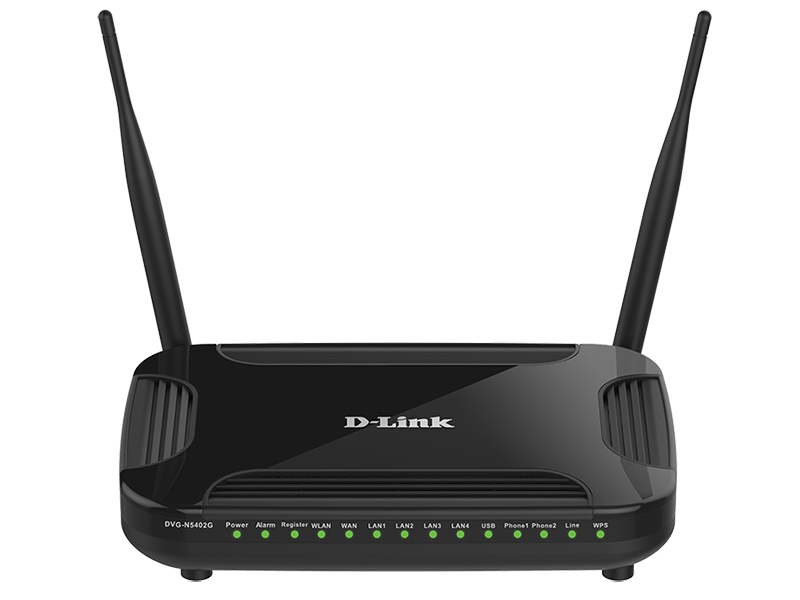

Indicators
• POWER
• ALARM
• REGISTER
• WLAN
• WAN
• 4 LAN indicator
• USB
• 2 indicators PHONE
• LINE
• WPS
Buttons
• ON / OFF button to power on / off
• RESET button to return to the factory default settings
• WPS button to establish a secure wireless connection and enable / disable the wireless network
Antenna
• Two non-removable external antenna with 5 dBi gain
Scheme MIMO
• 2 x 2
Power connector
• Power connector (DC)
SIP functions
• Individual account for each port
• Call without registration
• Register for the IP-address or domain name of SIP-server
• Redundant SIP proxy server
• Support for DHCP-options 120
• Support the format of SIP URI (RFC3986)
• Support for the outgoing (outbound) proxy
• STUN-client
• Supports NAT (NAT keep-alive)
• Types of calls: Voice / Modem / Fax
• User-configurable dialing plan (dial plan)
• Identify the source and destination call manually (P2P)
• Dialing E.164 (Rule exceptions ENUM)
Call Functions
• Direct call IP-to-IP without SIP proxy
• Life-Line (PSTN-backup)
• Yield to PSTN prefix
• Hold / Resume call
• Call Waiting
• Forwarding (unconditional, if busy, if no answer)
• "Do not disturb"
• Speed Dial
• Phone book
• "Hot line
• Shortcuts to special functions
• Intercom (internal calls without using the server SIP)
Voice Features
• Codecs: G.711 a / μ-law, G.729A, G.726, G.722, G.723.1
• Detection and generation of DTMF
• In-band DTMF, out-of-band DTMF (RFC2833, SIP-INFO)
• Comfort Noise Generation (CNG)
• Voice Activity Detection (VAD)
• Dynamic jitter-buffer
• Generation of call progress signal (FXS)
• Support for tone / pulse dialing
• Detection and generation Caller ID (Caller ID)
• Support fax (T.30 FAX bypass for G.711, T.38 Real Time FAX Relay)
• Adjustable Flash Time
• Adjusting the volume (speaker / microphone)
WAN connection types
• LTE
• 3G
• PPPoE
• Static IP / Dynamic IP
• PPPoE + Static IP
• PPPoE + Dynamic IP
Network Features
• DHCP-server / relay
• DNS relay
• Dynamic DNS
• IGMP Proxy
• RIP
• Support UPnP IGD
• VLAN support
• Supports ping from external network (WAN ping respond)
• Support SIP
• Support for RTSP
Firewall Security
• Network Address Translation (NAT)
• Stateful Inspection (SPI)
• IP-filter
• MAC-Filter
• URL-filter
• The protection ARP- and DDoS-attacks
• Virtual Servers
VPN
• IPSec / PPTP / L2TP / PPPoE pass-through
USB-interface features
• USB-modem
• Automatic connection to available type of supported network (4G / 3G / 2G) 1
• Enable / Disable checking PIN-code change PIN-koda2
• USB-drive
• File Browser
• Print Server
• Accounts to access the drive
• Built-in Samba server
• Built-in FTP-server
• Built-in torrent-client Transmission, the ability to download files to a USB-drive with him
Control
• Local and remote access to the settings of TELNET / WEB (HTTP)
• Web-based interface for configuration and management of multiple languages
• Update the router via web-interface
• Automatic notification of a new software version
• Saving and loading configurations
• Support for remote logging
• Automatic synchronization of system time with a NTP-server and manually configure the date and time
• Ping
• Traceroute
• TR-069 Client
Wireless module
• IEEE 802.11b / g / n
Frequency Range
• 2400 ~ 2483.5 MHz
Wireless Security
• WEP
• WPA / WPA2 (Personal / Enterprise)
• MAC filter
• WPS (PBC / PIN)
Additional functions
• WMM (Wi-Fi QoS)
• Control connected devices
• Advanced settings
Wireless speed
• IEEE 802.11b: 1, 2, 5.5 and 11 Mbit / s
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbit / s
• IEEE 802.11n (2,4 GHz) of 6.5 to 300 Mbit / s (MCS0 to MCS15)
Transmitter output power
The maximum transmit power will vary according to the rules of radio frequency regulation in your country
• 802.11b (typically at room temperature, 25 ° C)
15 dBm at 1, 2, 5.5 and 11 Mbit / s
• 802.11g (typically at room temperature, 25 ° C)
15 dBm at 6, 9, 12, 18, 24, 36, 48, 54 Mbit / s
• 802.11n (typically at room temperature, 25 ° C)
HT20 / HT40
15 dBm at 15 MCS0 ~
Receiver Sensitivity
• 802.11b (typically at PER = 8% at room temperature, 25 ° C)
-85 DBm at 1 Mbit / s
-83 DBm at 2 Mbit / s
-81 DBm at 5.5 Mbit / s
-79 DBm at 11 Mbit / s
• 802.11g (typically at PER = 10% at room temperature, 25 ° C)
-85 DBm at 6 Mbit / c
-84 DBm at 9 Mbit / c
-82 DBm at 12 Mbit / c
-80 DBm at 18 Mbit / c
-77 DBm at 24 Mbit / c
-73 DBm at 36 Mbit / c
-69 DBm at 48 Mbit / c
-68 DBm at 54 Mbit / c
• 802.11n (typically at PER = 10% at room temperature, 25 ° C)
2.4 GHz, HT20
-85 DBm at MCS0 / 8
-82 DBm at MCS1 / 9
-80 DBm at MCS2 / 10
-77 DBm at MCS3 / 11
MCS4 at -73 dBm / 12
-69 DBm at MCS5 / 13
-68 DBm at MCS6 / 14
-67 DBm at MCS7 / 15
2.4 GHz, HT40
-82 DBm at MCS0 / 8
-79 DBm at MCS1 / 9
-77 DBm at MCS2 / 10
-74 DBm at MCS3 / 11
MCS4 at -70 dBm / 12
-66 DBm at MCS5 / 13
-65 DBm at MCS6 / 14
-64 DBm at MCS7 / 15
Modulation Schemes
• 802.11b: DQPSK, DBPSK, DSSS, CCK
• 802.11g: BPSK, QPSK, 16QAM, 64QAM OFDM-
• 802.11n: BPSK, QPSK, 16QAM, 64QAM OFDM-
